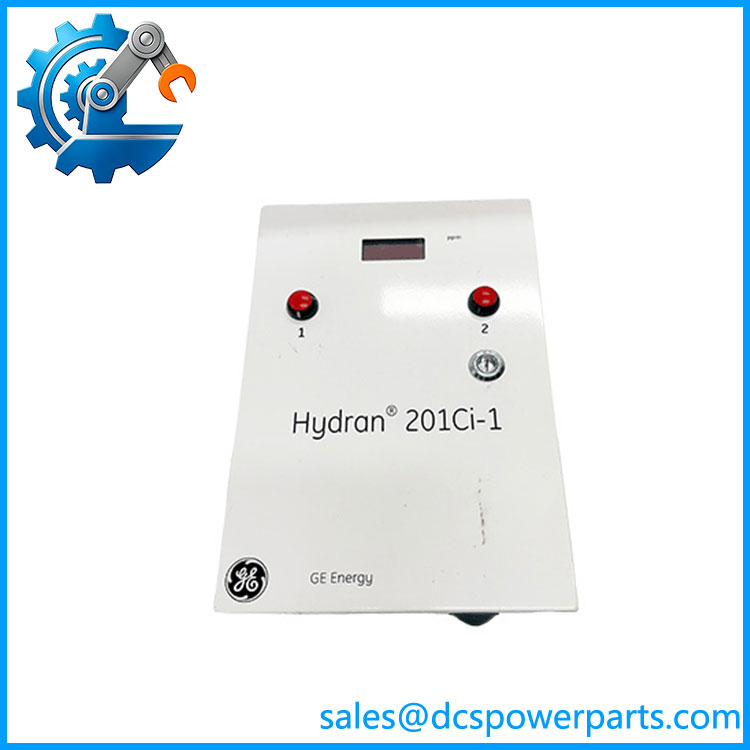

GE Energy H201Ci-1 | Hydran 201Ci-1 One-Channel Controller

Description

Product Introduction

The GE Hydran H201Ci-1 is a dedicated electronic controller for the Hydran 201i transformer monitoring system. Its primary role is to provide the operator interface, alarm handling, analog output, and communications functions associated with one Hydran 201Ti Intelligent Transmitter. When the controller and transmitter are used together, GE refers to the configuration as the Hydran 201R Model i.

The H201Ci-1 is not a general-purpose PLC controller. It is designed specifically for online transformer condition monitoring, where the Hydran 201Ti measures dissolved fault-gas concentration in transformer insulating oil. The controller receives information from the transmitter through its supervisory link and provides local gas-level indication, alarm contacts, analog output, and communication with supervisory equipment. Available documentation identifies an isolated RS-485 communication interface and a host-computer connection through RS-232, USB, or an optional modem arrangement.

For field replacement, the complete identification H201Ci-1 is important because the Hydran family also includes the H201Ci-C communications controller. The latter supervises multiple transmitters and does not provide the same local numerical display and analog-output arrangement as the one-channel H201Ci-1.

Key Technical Specifications

Published documentation describes the supervisory link as an isolated connection to the H201Ti, with a maximum cable length of approximately 1300 m (4000 ft) under the specified cable arrangement.

Application Scenarios & Engineering Considerations

The H201Ci-1 is primarily used in transformer condition-monitoring systems.

• Power transformer monitoring: Provides the controller interface for a single Hydran 201Ti transmitter.
• Online dissolved-gas monitoring: Receives the transmitter’s gas measurement and presents the result locally.
• Transformer alarm systems: High and High-High alarm functions can be connected to plant annunciation or protection-related monitoring circuits.
• SCADA integration: Analog and serial communications provide ways to transfer gas-level information to supervisory systems.
• Outdoor transformer installations: The NEMA 4X enclosure and internal heater allow the controller to be installed in outdoor environments when the installation requirements are met. GE’s manual specifically states that the H201Ci-1 enclosure is suitable for outdoor installation.

Field note: The Hydran measurement is a condition-monitoring indication, not a substitute for a complete transformer diagnostic program. Gas trends, transformer loading, oil temperature, historical events, and other diagnostic information should be evaluated together.

H201CI-1

Related Products

• GE Hydran 201Ti — Intelligent transmitter installed at the transformer and connected to the H201Ci-1.
• GE Hydran 201Ci-1 — One-channel controller covered here.
• GE Hydran 201Ci-C — Communications controller designed to supervise multiple H201Ti transmitters.
• GE Hydran 201R Model i — Complete system designation for the H201Ti + H201Ci-1 configuration.
• Hydran Host software — Host-side software used for remote communication and management of Hydran systems.

The Engineer’s Guide: Field Pitfalls to Avoid

⚠️ Do not confuse H201Ci-1 with H201Ci-C.

The H201Ci-1 is the one-channel controller for one H201Ti. The H201Ci-C is intended for communications/network management of multiple H201Ti transmitters and has a different functional configuration.

How to avoid it: Match the existing system architecture before ordering a replacement.

⚠️ Check the H201Ti supervisory link before replacing the controller.

A persistent communication failure does not necessarily mean the H201Ci-1 has failed. Wiring, transmitter power, connector condition, grounding, and the supervisory-link circuitry can produce the same symptom.

⚠️ Verify the analog-output configuration.

Published documentation identifies the gas-level output as a 4–20 mA signal on a 0–2000 ppm scale in the applicable configuration.

How to avoid it: Confirm the receiving PLC/SCADA input configuration before commissioning.

⚠️ Outdoor installation still requires correct mounting.

GE’s installation documentation specifies a NEMA 4X enclosure and states that the controller should be mounted on a vibration-free structure; vibration-absorbing pads are recommended where vibration is present.

Frequently Asked Questions

What is GE H201Ci-1?

The H201Ci-1, also called the Hydran 201Ci-1, is a one-channel controller for one GE Hydran 201Ti Intelligent Transmitter.

What does it monitor?

It is part of an online transformer monitoring system that monitors dissolved fault-gas concentration in transformer insulating oil through the Hydran 201Ti transmitter.

Is H201Ci-1 a PLC?

No. It is a dedicated transformer condition-monitoring controller, not a general-purpose PLC or DCS I/O module.

What is the H201Ci-1 used with?

Its primary paired device is the Hydran 201Ti Intelligent Transmitter. Together, they form the Hydran 201R Model i configuration.

What should I verify before purchasing?

For an exact replacement, verify:

1. H201Ci-1
2. Hydran 201i system compatibility
3. Existing H201Ti transmitter
4. Supervisory-link wiring
5. Analog-output configuration
6. Alarm relay configuration
7. RS-485 communication
8. Host communication method
9. AC supply configuration
10. Enclosure condition
11. Internal heater operation
12. Existing setpoints and configuration
