Description
GE DS200CTBAG1
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | DS200CTBAG1 |
| Manufacturer | General Electric |
| Product Family | Mark V SPEEDTRONIC |
| Functional Acronym | CTBA |
| Product Type | Analog termination module / terminal board |
| Primary Role | Analog signal termination and interface |
| Typical Application | Gas and steam turbine control |
| Architecture | Mark V turbine control |
| Board Form | Printed circuit board |
| Revision Identification | Suffix-dependent |
| Field Connections | Configuration-dependent |
| Communication / Bus Connections | Revision and Mark V architecture dependent |
| Operating Temperature | Verify against the complete board revision and applicable GE documentation |
| Power Requirements | Do not infer from the base number alone |
| Mounting | Mark V cabinet / rack assembly |
| Protection Rating | System/enclosure dependent |
The available documentation consistently identifies the DS200CTBAG1 family as a CTBA analog termination board used in GE Mark V systems. The commonly documented DS200CTBAG1A version is specifically described as an Analog Termination Module for SPEEDTRONIC Mark V LM turbine control.
Product Introduction
The GE DS200CTBAG1 is a legacy Mark V CTBA analog termination board used at the field-signal interface of GE SPEEDTRONIC turbine control systems. It belongs to the DS200 board family and supports the termination and routing of analog signals between field wiring and the Mark V control electronics. The board is therefore part of the signal-interface layer rather than the main processor or application-control logic.
One important procurement issue is that DS200CTBAG1 is the base board identification, not necessarily the complete ordering designation. Documented versions include DS200CTBAG1A, DS200CTBAG1ACC, and DS200CTBAG1ADD, with different revision information and, in some cases, documented connector or circuit differences.

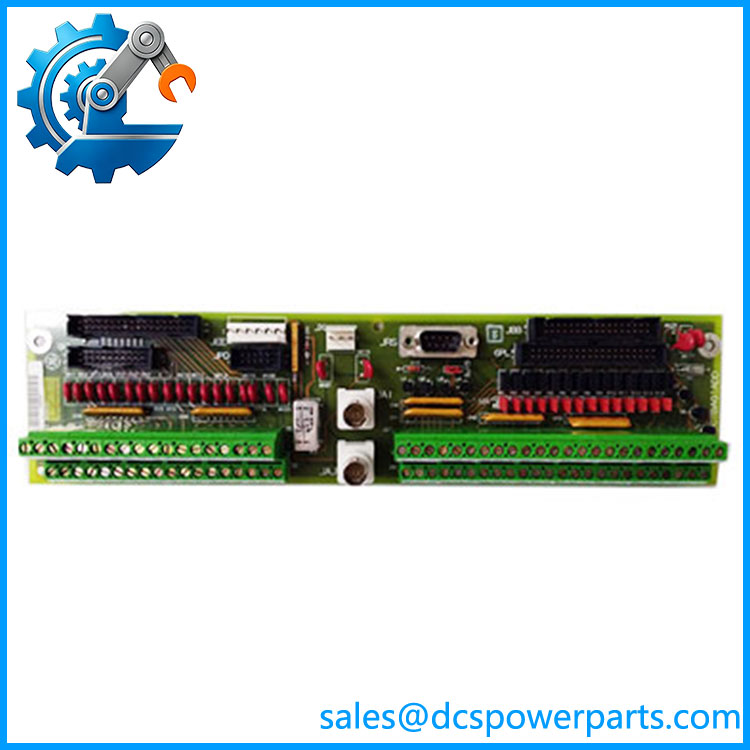

DS200CTBAG1
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
The main risk with this board is revision mismatch. A Mark V termination board can look mechanically similar while having different functional revisions. The DS200CTBAG1A, for example, is documented as an analog termination module, while the later DS200CTBAG1ACC and DS200CTBAG1ADD variants carry additional functional/artwork revisions. Procurement should therefore start with the complete board number printed on the PCB rather than stopping at DS200CTBAG1.
Typical Applications
- Gas turbine control systems — field analog signals associated with Mark V turbine instrumentation.
- Steam turbine control systems — termination and interface functions within the Mark V cabinet architecture.
- Legacy turbine maintenance — replacement of aging CTBA boards while retaining the existing Mark V control architecture.
- Analog signal interface circuits — connection between field wiring and the corresponding Mark V control electronics.
Technical Pitfalls to Avoid
- Do not order only from the base number.
Record every suffix printed on the board, including functional and artwork revision characters. - Do not confuse CTBA with the analog I/O processor.
The CTBA is a termination/interface board. Other Mark V boards perform signal processing and control functions. - Check the associated board architecture.
Documented CTBA variants interface with other Mark V boards, and the exact connector arrangement depends on the revision. For example, the documented DS200CTBAG1ACC includes IONET and COREBUS interfaces and connections associated with analog signal handling. - Verify field wiring before removal.
Photograph and document terminal-strip wiring, jumpers, connector positions, and shield/ground arrangements before replacing a legacy board. - Do not assume different revision suffixes are interchangeable.
The DS200CTBAG1ADD documentation specifically distinguishes functional and artwork revisions, so a visual match is not sufficient evidence of compatibility. - Check the Mark V architecture.
Mark V installations can use simplex or TMR arrangements. A replacement board must correspond to the actual cabinet configuration and associated control boards.
Related Products
- DS200CTBAG1A — documented CTBA analog termination module; commonly referenced as the direct developed version of the base design.
- DS200CTBAG1ACC — later CTBA variant with documented functional/artwork revisions and IONET/COREBUS-related interfaces.
- DS200CTBAG1ADD — CTBA terminal-board variant with additional functional and artwork revisions; verify compatibility rather than assuming interchangeability.
- DS200TCCA — associated Mark V analog circuitry; documentation for CTBA variants identifies TCCA connections for analog signals.
- DS200DTBAG1A — Mark V termination board for digital contact inputs, serving a different signal function from CTBA.
- DS200PTBAG1A — termination board associated with the Mark V P core rather than the CTBA analog termination function.
- DS200QTBAG1A — Mark V termination board associated with the RST section.
- DS200TBQAG1A — Mark V termination board used for C/RST thermocouple-related signals.
Procurement Note
For , the base identifier is not enough for a controlled replacement. The purchasing specification should capture the complete GE board number, functional revision, artwork revision, terminal arrangement, and installed Mark V cabinet position.
If the existing PCB is marked DS200CTBAG1A, DS200CTBAG1ACC, or DS200CTBAG1ADD, use that complete designation in the RFQ and compatibility check. Do not substitute one revision merely because its PCB dimensions and CTBA designation appear identical.
