Description
GE ACC-5595-208 | 2 Gb/s Reflective Memory Hub | 8-Port Fiber Network
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ACC-5595-208 |
| Order number | 350-805595-208 |
| Product type | Reflective Memory Hub Assembly |
| Reflective Memory speed | 2 Gb/s |
| Optical interfaces | 8 |
| Transceiver type | Multimode SFP |
| Network architecture | Reflective Memory |
| Maximum network nodes | Up to 256 nodes when hubs are cascaded |
| Management Ethernet | 1 × 10Base-T |
| Local management | 1 × RS-232 |
| Optical regeneration | Yes |
| Fault handling | Automatic bypass of defective/disconnected nodes |
| Enclosure | 19-inch 1U rackmount or desktop |
| Power | Internal universal power supply |
The ACC-5595-208 configuration is specifically identified with eight multimode pluggable transceivers. The broader 5595 hub architecture supports cascading up to 256 nodes and automatically bypassing failed or disconnected nodes so the remaining network can continue operating.
Product Introduction
The GE ACC-5595-208 is a managed Reflective Memory hub designed for GE/Abaco 5565-series real-time networks. Rather than routing conventional IP packets, it distributes shared-memory data across an optical network so connected computing nodes can exchange synchronized data with very low communication overhead.
This hardware is particularly relevant in real-time simulation, test systems, industrial control simulation, and other systems where deterministic data distribution is more important than conventional Ethernet networking. The hub regenerates the serial optical signal at each port, helping limit optical-link loss and accumulated jitter across the network.

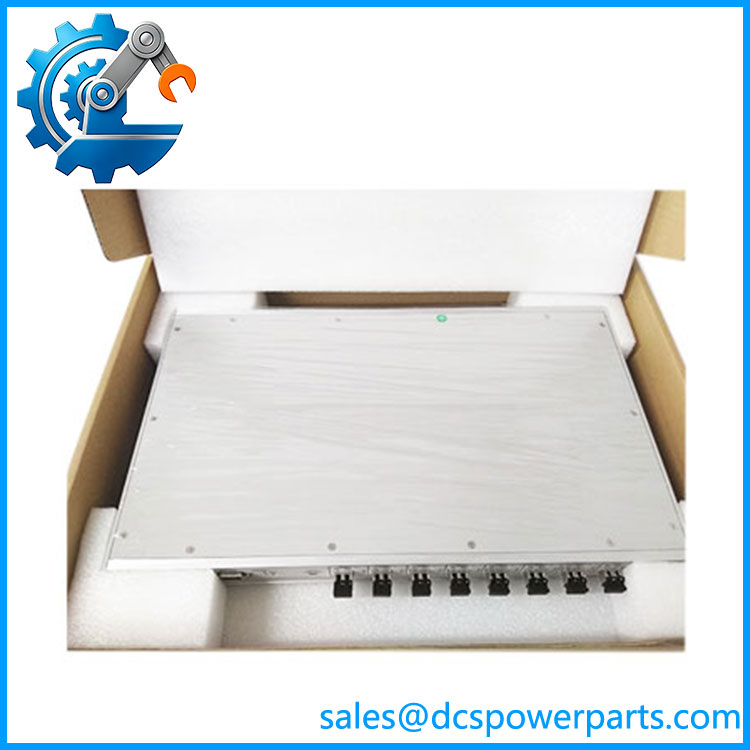

ACC-5595-208
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
A common procurement error is treating the ACC-5595-208 as a standard fiber Ethernet switch. It is a Reflective Memory hub, and replacing it with an ordinary managed Ethernet switch changes the network architecture completely.
Typical Applications
- Reflective Memory networks — Central optical interconnection for 5565-series Reflective Memory nodes.
- Real-time simulation — Aircraft, engine, vehicle, plant, and hardware-in-the-loop simulation environments.
- High-speed test systems — Shared data distribution between multiple real-time computing nodes.
- Industrial control simulation — Applications requiring synchronized data exchange between independent processing systems.
Technical Pitfalls to Avoid
- Do not confuse 2 Gb/s Reflective Memory with 2 Gb Ethernet. The nominal data rate is similar, but the protocol and network behavior are fundamentally different.
- Check the optical configuration.
ACC-5595-208is associated with eight multimode SFP positions. The relatedACC-5595-280configuration is identified with eight single-mode ports, so the two should not be treated as interchangeable without checking the installed optical links. - Verify the SFPs separately. The hub uses pluggable optical transceivers. A replacement chassis without the correct optical modules may not restore the original network.
- Check the network topology before replacement. The hub can be cascaded and the overall Reflective Memory network can reach up to 256 nodes. Replacing one hub without documenting upstream/downstream optical connections can create difficult-to-diagnose network faults.
- Do not assume the Ethernet port carries Reflective Memory traffic. The 10Base-T Ethernet interface is provided for remote access/control; it is not the primary high-speed memory-network interface.
Related Products
- ACC-5595-280 — 8-port 5595 Reflective Memory hub configuration for single-mode optical links; different optical application from the
-208multimode version. - VMIACC-5595-208 — Alternate/full designation associated with the Reflective Memory hub configuration.
- VMIACC-5595 — 5595 Reflective Memory hub family designation.
- ACC-5595-20G — 16-port 5595 configuration using multimode optical interfaces according to available selection documentation.
- ACC-5595-2G0 — 16-port single-mode configuration in the same 5595 family.
- GE/Abaco 5565 Reflective Memory interface cards — Node-side hardware used to connect computers or controllers to the Reflective Memory network.
- VME-5565 series — VME-based Reflective Memory interface family associated with the same network architecture.
- PCIe-5565 series — PCI Express Reflective Memory interface family for host computers.
Procurement Note
For an , verify four items before approving a replacement:
complete part number → 8-port configuration → multimode SFP type → existing 5565 network topology.
There is substantial listing noise around this part number, including descriptions calling it a generic fiber switch, relay module, or PLC communication device. The technically supported identification is GE/Abaco 5595-series 2 Gb/s Reflective Memory Hub Assembly with eight multimode optical ports.
⚠️ Legacy model: replacement evaluation should include the installed SFP transceivers, firmware revision, optical connector type, and the actual 5565 Reflective Memory node configuration.
