Description
Product Introduction

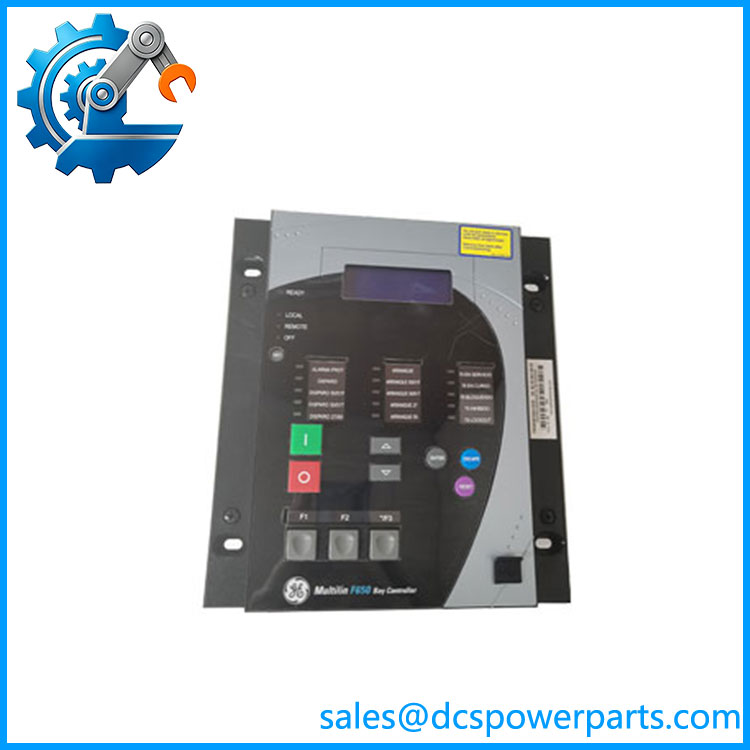

Electrical distribution feeders require continuous monitoring because short circuits, overload conditions, grounding faults, and abnormal voltage events can quickly damage equipment or interrupt production. The GE Multilin F650BABF2G0LOSHE is a multifunction feeder management relay designed to provide protection, control, measurement, and communication functions within industrial and utility power systems.
The GE Multilin F650BABF2G0LOSHE belongs to the F650 protection relay family and integrates multiple protection elements into a single rack-mounted device. It monitors feeder electrical parameters, processes protection algorithms, and provides trip or control outputs to circuit breakers and associated switchgear. The relay supports communication with supervisory systems through Ethernet and serial interfaces, allowing integration into substation automation environments.
For GE Multilin F650BABF2G0LOSHE replacement projects, engineers should verify the exact hardware option code, firmware version, protection settings file, CT/VT configuration, and communication parameters. In protection applications, the relay configuration is as important as the hardware itself because incorrect settings can affect fault detection and breaker operation.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | F650BABF2G0LOSHE |
| Manufacturer | GE Multilin |
| Product Series | F650 |
| Product Type | Feeder Management Protection Relay |
| Main Function | Feeder protection, control, monitoring |
| Mounting | 19-inch rack mounting |
| Power Supply | 24–48 VDC |
| Display | Basic LCD display |
| Serial Communication | Redundant RS-485 |
| Ethernet Communication | 10/100Base-T |
| Digital Inputs | 8 inputs (Slot F configuration) |
| Digital Outputs | 8 outputs (Slot F configuration) |
| Trip/Close Supervision | 2 circuits |
| Protection Functions | Overcurrent, ground fault, voltage/frequency protection (configuration dependent) |
| Communication Integration | SCADA and substation automation systems |
| Typical Installation | Switchgear panels, substations, industrial power systems |
Application Scenarios & Pain Points
The GE Multilin F650BABF2G0LOSHE is designed for installations where feeder availability and fault isolation are critical.
Medium Voltage Distribution Protection
The relay is commonly used for protecting feeders supplying:
- Manufacturing plants
- Process facilities
- Utility distribution networks
- Large industrial loads
It monitors electrical conditions and initiates protective actions when abnormal conditions occur.
Industrial Power Systems
Industrial facilities often rely on multiple feeders supplying motors, transformers, and production equipment. A feeder relay provides:
- Fault detection
- Breaker trip control
- Event recording
- System monitoring
Substation Automation
The communication capability of the F650 series allows integration with higher-level monitoring systems. Operators can access:
- Relay status
- Fault records
- Alarm information
- Measurement values
Legacy Protection System Maintenance
Many facilities continue operating GE Multilin F650 relays because replacement of complete protection panels can require significant engineering changes.
Field note: A plant experienced intermittent feeder trips without clear fault records. Investigation showed that relay event data and protection settings were not properly maintained after previous configuration changes. Restoring the correct protection file and verifying CT settings resolved unnecessary breaker operations.
F650BABF2G0LOSHE
Related Products
- GE Multilin F650 Series Relay
Related feeder protection models using the same relay platform. - GE Multilin F600 Series Transformer Protection Relay
Used for transformer protection applications with similar digital relay architecture. - GE Multilin SR750 Feeder Protection Relay
Earlier feeder protection platform used in industrial distribution systems. - GE Multilin SR760 Feeder Protection Relay
Related feeder protection relay for medium-voltage applications. - GE Multilin UR Series Protection Relays
Advanced protection platform used for transmission, generation, and industrial applications. - GE Multilin EnerVista Software Suite
Engineering software used for relay configuration, settings management, diagnostics, and event analysis.
Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Replacing Hardware Without Loading the Correct Settings
Protection relays are configuration-dependent devices.
Before replacement, save:
- Protection settings file
- Logic configuration
- CT ratio settings
- VT configuration
- Communication parameters
⚠️ Ignoring Communication Configuration
A relay may operate locally but fail to communicate with SCADA after replacement.
Check:
- IP address
- Ethernet settings
- RS-485 polarity
- Modbus/DNP parameters
- Network termination
⚠️ Using an Incorrect Option Code
The F650 family includes many hardware variations.
Verify:
- Complete ordering code
- Input/output configuration
- Power supply type
- Communication option
- Firmware compatibility
A relay with a similar model name may not have the required I/O arrangement.
Frequently Asked Questions (FAQ)
What is the GE Multilin F650BABF2G0LOSHE used for?
The is a digital feeder management relay used for protection, control, monitoring, and communication in electrical distribution systems.
Is a PLC module?
No. It is a dedicated electrical protection relay, not a PLC controller or remote I/O module.
What protection functions does the relay provide?
Depending on configuration, the platform supports functions such as:
- Overcurrent protection
- Ground fault protection
- Voltage protection
- Frequency protection
- Breaker control and monitoring
What communication interfaces are available?
This configuration includes:
- Redundant RS-485 serial communication
- 10/100Base-T Ethernet communication
Can replace another relay?
Only after checking:
- Complete ordering code
- Hardware options
- Firmware revision
- Protection settings
- Existing wiring configuration
What are common failure symptoms?
Typical symptoms include:
- Relay power failure
- Communication loss
- Incorrect trip operation
- Missing measurements
- Configuration mismatch alarms
Does replacing the relay require commissioning?
Yes. After installation, protection engineers should verify:
- Relay settings
- CT/VT inputs
- Trip circuits
- Communication functions
- Protection element operation
A replacement relay should be tested before being returned to service.
