Description
Product Overview

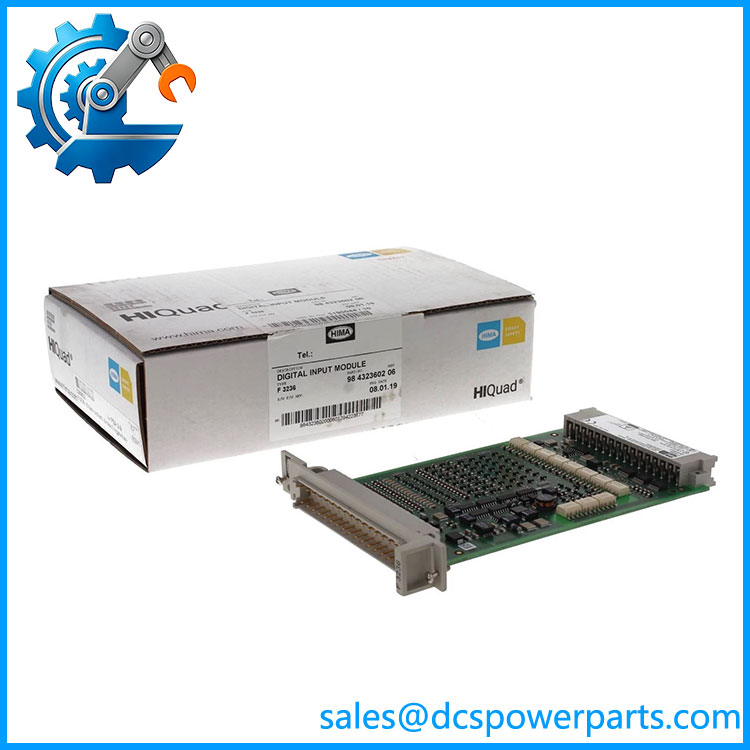

The HIMA F3236 984323602 is a safety-related 16-channel digital input module designed for HIMA safety and automation systems. It provides reliable acquisition of discrete field signals, including 1-signals and compatible mechanical contacts, and is intended for applications where dependable signal detection is required in safety-related control architectures. The HIMA F3236 984323602 uses 24 V DC input signaling with approximately 6 mA input current and provides safety isolation across its input channels.
The F3236 984323602 incorporates automatic functional testing during operation, including cross-talk testing, filter-capacitor checks, and module-function monitoring. Its typical switching time is approximately 8 ms, making it suitable for safety interlocks, emergency shutdown circuits, equipment status feedback, and other discrete safety signals. The HIMA F3236 984323602 is therefore a practical I/O component for legacy HIMA safety-system installations where reliable digital signal acquisition and continuous diagnostic supervision are important.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | F3236 984323602 |
| Manufacturer | HIMA |
| Product Type | Safety-Related Digital Input Module |
| Module Designation | F 3236 |
| Number of Inputs | 16 channels |
| Input Type | 1-signal / mechanical contact |
| Nominal Input Voltage | 24 V DC |
| Input Current | Approx. 6 mA, including cable plug |
| Typical Switching Time | Approx. 8 ms |
| Safety Isolation | Input channels safety isolated |
| Requirement Class | AK 1 … 6 |
| 5 V DC Consumption | Approx. 120 mA |
| 24 V DC Consumption | Approx. 200 mA |
| Space Requirement | 4 TE |
| Diagnostic Functions | Cross-talk, filter capacitor and module-function testing |
| Connection | Dedicated HIMA field wiring / cable interface |
| Application | Safety Instrumented Systems / Industrial Safety Control |
The available technical references consistently identify F3236 / 984323602 as a 16-channel input module with 24 V DC signaling, approximately 6 mA input current, 8 ms typical switching time, and 4 TE space requirement.
Main Features and Advantages
16-channel safety input acquisition
The HIMA F3236 984323602 provides 16 independent digital input channels for acquiring safety-related field signals. This allows multiple switches, sensors, interlocks, or equipment-status contacts to be connected to one compact module, helping reduce panel space and wiring complexity.
Safety-oriented signal processing
The module is designed for safety-related applications and supports 24 V DC signals as well as suitable mechanical contacts. Its isolation and diagnostic architecture help maintain reliable signal acquisition in industrial environments where erroneous input information can affect an emergency shutdown or protective function.
F3236
Continuous automatic testing
A major advantage of the F3236 984323602 is its built-in automatic testing. The module can check input cross-talk using walking-zero techniques, monitor filter-capacitor operation, and test its own functionality during operation. These diagnostics reduce dependence on manual periodic testing and help identify abnormal module behavior.
Fast discrete response
With a typical switching time of approximately 8 ms, the module provides relatively fast recognition of discrete field changes. This is useful for safety trips, permissive signals, valve or equipment feedback, and interlock conditions where the control system must respond quickly.
Compact installation
The 4 TE space requirement provides a compact I/O solution for safety-system racks. This is useful in existing control cabinets where available rack space is limited and replacement modules must fit the original installation without major cabinet modification.
Legacy-system maintenance value
The F3236 984323602 is particularly relevant for maintaining established HIMA installations. Its standardized channel density, field-interface architecture, and diagnostic functions make it suitable as a maintenance spare where an existing safety-system configuration must be preserved.
Application Fields
The HIMA F3236 984323602 is primarily used in Safety Instrumented Systems (SIS), emergency shutdown systems, and industrial safety-control applications. In oil and gas facilities, it can acquire discrete signals from emergency-stop stations, pressure switches, valve-position contacts, shutdown devices, and other field equipment associated with protective functions.
In chemical and petrochemical plants, the module can interface with process interlocks and shutdown circuits where reliable detection of a discrete field condition is essential. Its 16-channel architecture allows several safety signals to be consolidated within a safety-system rack while maintaining individual channel processing.
In power-generation facilities, the F3236 984323602 can be applied to turbine and auxiliary-system protection, boiler-related interlocks, emergency shutdown circuits, and equipment-status monitoring. Power plants often require highly dependable discrete signal acquisition because incorrect status information can prevent a protective action or create an unwanted trip.
The module is also suitable for metallurgy, mining, manufacturing, and other process industries where safety controllers must monitor switches, permissive contacts, machine interlocks, and protective devices. Its approximately 8 ms switching response and continuous diagnostic functions are useful where fast and trustworthy digital-state recognition is required.
Within an existing HIMA safety architecture, the F3236 984323602 can serve as the field-input layer between discrete instruments and the safety controller. Because the exact rack, backplane, wiring, and safety-system compatibility must be verified before installation, replacement should be based on the complete HIMA system configuration rather than the part number alone.
