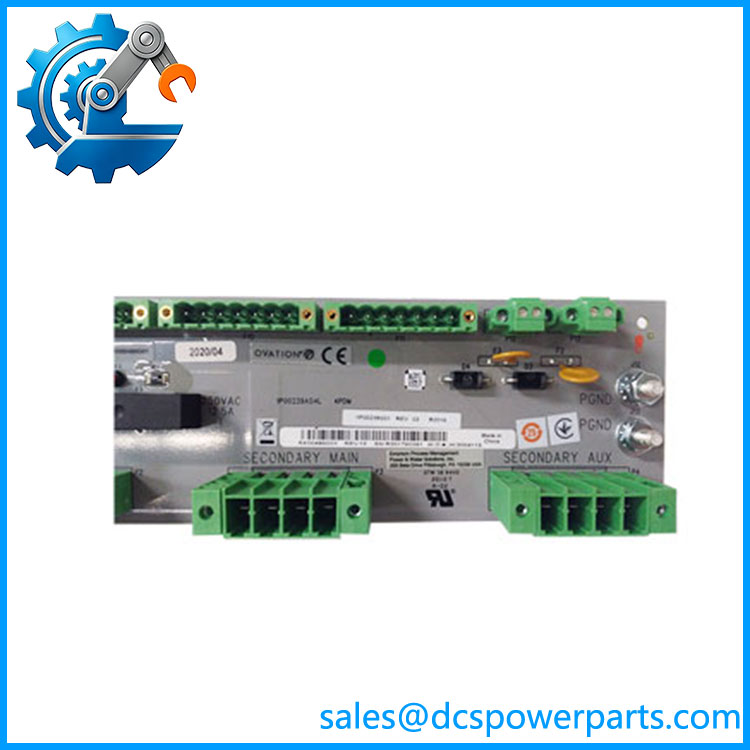

Emerson Ovation 5X00489G01 Power Distribution Module
Product Overview
The Emerson Ovation 5X00489G01 is a Power Distribution Module used within the Ovation distributed control system power architecture. Its function is fundamentally different from an Ovation analog input, digital output, controller, or communications card. The module accepts a broad AC or DC input range and provides regulated 24 VDC power for downstream control-system loads. Published technical records identify an input range of approximately 85–264 VAC or 90–375 VDC, with a regulated 24 VDC output. The part is also associated with the earlier/alternate number 1P00159G01.
In an Ovation cabinet, the Emerson 5X00489G01 belongs to the infrastructure layer supporting controllers, I/O assemblies, and associated control equipment. It does not execute Ovation control logic and should not be selected using I/O channel count or signal type. The documented high-capacity configuration provides up to 20 A / 480 W on the primary 24 VDC output, with auxiliary power capability also reported in the available technical records. Output voltage is adjustable around the 24 VDC nominal value.
This distinction matters during a legacy replacement. Several current commercial listings incorrectly classify 5X00489G01 as an analog-output or relay module. Those descriptions conflict with multiple independent records identifying it as an Ovation Power Distribution Module. One inventory record also identifies the part as a Power Distribution Module and gives 1P00159G01 as an alternate number.
Product Introduction
When an Ovation controller cabinet develops an unexplained 24 VDC problem, replacing an I/O card will not solve a failing power-distribution stage. The 5X00489G01 is the cabinet-level power component that deserves attention when the measured DC bus, load capacity, or power-source arrangement is abnormal.
For a legacy DCS replacement, verify the exact power architecture, input source, output loading, wiring, revision, and alternate part number before installation. A matching label is necessary; it is not by itself proof of electrical interchangeability.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 5X00489G01 |
| Manufacturer | Emerson / Westinghouse Ovation |
| Product Series | Ovation DCS |
| Product Type | Power Distribution Module |
| Alternate Part Number | 1P00159G01 |
| AC Input | 85–264 VAC |
| Nominal AC Input | 100–240 VAC |
| DC Input | 90–375 VDC |
| AC Frequency | Approximately 43–67 Hz in published records |
| Nominal Output | 24 VDC |
| Adjustable Output | Approximately 23.5–28.5 VDC |
| Initial Output Setting | Approximately 24.5 VDC ±1% |
| Primary Output Capacity | Up to 20 A / 480 W |
| Auxiliary Output | Configuration-dependent; published records identify up to 10 A |
| Ripple | Published records report <50 mVpp for 10 A configuration and <100 mVpp for 20 A configuration |
| Hold-Up Time | >20 ms reported |
| Power Factor Correction | >0.92 reported |
| Efficiency | >90% typical reported |
| Cooling | Passive / fanless architecture reported |
| Operating Temperature | −40 to +70°C reported by inventory documentation |
| Product Role | Ovation control-system power infrastructure |
| Control Logic | None; not a controller |
| Firmware | No independently verified user-updatable firmware identified |
| Mounting | Ovation cabinet/system power-distribution installation |
The exact output arrangement can vary by implementation, so the installed unit’s nameplate and wiring documentation should take precedence over generalized distributor specifications.
5X00489G01
Major Features / Practical Advantages
1. Wide-Range AC/DC Input
The 5X00489G01 is designed around a wide input envelope rather than a single fixed mains voltage. Published records identify 85–264 VAC and 90–375 VDC input capability. That makes the module applicable to Ovation cabinets supplied from different plant power architectures, but the actual cabinet wiring still needs to be checked before installation.
2. 24 VDC Control-System Distribution
Its main purpose is regulated DC power distribution. The documented output is centered on 24 VDC, with an adjustable range around that nominal value. The high-capacity configuration is reported at up to 20 A / 480 W, giving the module substantially more responsibility than a small instrument power supply.
3. Main and Auxiliary Power Architecture
Available technical records describe main and auxiliary 24 VDC outputs. This allows the Ovation power architecture to separate different downstream loads rather than treating the entire cabinet as one undifferentiated DC circuit. Exact terminal allocation should be taken from the applicable cabinet drawing.
4. Power Protection
Published specifications identify overvoltage and current-protection functions. These are important because a downstream short circuit or abnormal load should not automatically be treated as a controller failure. During troubleshooting, measure the PDM output under load rather than relying solely on a no-load voltage check.
5. Active Power-Factor Correction
Available technical records report active power-factor correction above 0.92. This is an electrical-input characteristic rather than an Ovation control function, but it matters when multiple cabinet power supplies are connected to a common plant source.
6. Fanless Construction
Several technical records describe a fanless architecture. That removes a mechanical cooling-fan failure mode, although it does not eliminate thermal stress. For older surplus units, inspect the power electronics, terminals, capacitors, and enclosure condition rather than assuming that a fanless design is maintenance-free.
7. Ovation System-Level Application
The 5X00489G01 is intended for the Ovation DCS power architecture rather than generic PLC use. Inventory and application records associate it with Ovation controller cabinets and I/O infrastructure. It therefore needs to be evaluated as part of the cabinet’s power-distribution design, including downstream current demand and redundant-source arrangement.
Related Products
- 1P00159G01 — Alternate/earlier part number associated with the 5X00489G01 Power Distribution Module.
- 5X00488G01 — Related Ovation power-system component; verify exact electrical configuration before substitution.
- 5X00490G01 — Related Ovation power-distribution family member; not automatically interchangeable.
- 5X00491G01 — Another associated Ovation power-distribution family number; verify cabinet configuration.
- 5X00070G04 — Ovation analog input module; completely different function from the 5X00489G01 power module.
- 5X00106G02 — Ovation HART high-performance analog input module; used for process signals rather than cabinet power.
- 5X00109G02 — Ovation high-performance analog input module; signal acquisition rather than power distribution.
- 5X00119G01 — Ovation RTD input module; temperature acquisition component, not a PDM.
- 5X00121G01 — Ovation RTD input module; another process-temperature I/O component.
The Ovation product listings distinguish 5X00489G01 from the signal I/O modules in the same product family.
FAQ
Can I hot-swap the 5X00489G01?
Do not assume that the complete 5X00489G01 can be removed while energized. Some commercial listings describe it as hot-swappable, while another technical record explicitly states that removing the primary PDM can remove power from the associated chassis. Because the available documentation is inconsistent on this point, the safe procurement assumption is no unrestricted hot-swap unless the specific Ovation cabinet design and approved maintenance procedure explicitly provide for it.
Is 5X00489G01 an analog-output module?
No reliable evidence supports treating it as an Ovation analog-output card. Multiple records identify it as a Power Distribution Module. Some current listings incorrectly label it as an analog-output or relay module, so those specifications should not be used for engineering substitution.
What is the alternate part number?
1P00159G01 is repeatedly identified as an alternate part number for 5X00489G01. Before using the alternate number for a replacement order, compare the revision and cabinet wiring because an alternate number does not automatically prove every installation is electrically identical.
Does the 5X00489G01 have firmware?
It should not be treated like an Ovation CPU or I/O processor with application firmware. The available documentation identifies it primarily as a power-conversion and distribution assembly. Do not assume that an Ovation system firmware update can or should be applied directly to this PDM.
Can it power Ovation controllers and I/O?
Yes, that is the intended system role. The module is identified as Ovation power-distribution hardware and is associated with controller and I/O cabinet power. Exact allowable loading must be checked against the installed power architecture rather than simply using the maximum nameplate capacity.
Does the 5X00489G01 support 24 VDC output?
Yes. Published specifications identify regulated 24 VDC output, with approximately 23.5–28.5 VDC adjustment reported for the module. The exact output configuration should be confirmed from the installed unit and cabinet drawings.
Is the 20 A / 480 W rating always applicable?
No. The available documentation describes different main/auxiliary output configurations, including 10 A and 20 A arrangements. Do not assume every physical unit carrying the 5X00489G01 number has identical terminal loading simply from a generic web listing.
Procurement Note
The 5X00489G01 should be purchased as an Ovation Power Distribution Module, not as an analog I/O card or relay-output module. The most useful cross-reference found is 1P00159G01, while the most important engineering checks are input source, output arrangement, revision, cabinet mounting, terminal configuration, and total downstream DC load.
For a legacy cabinet, measure the 24 VDC rail under normal operating load and during startup. Check both the incoming source and the PDM output. A PDM can produce nominal voltage with little load while still exhibiting excessive voltage drop once the controller and I/O load is applied.
For New Surplus equipment, inspect the enclosure, terminals, power-conversion components, capacitors, and evidence of long-term storage. Do not accept “powers on” as sufficient evidence of suitability for a critical DCS cabinet. The replacement should be matched against the original cabinet drawing and load calculation before being returned to service.
Important identification note: Public information contains materially conflicting descriptions of 5X00489G01. The repeated identification as an Ovation Power Distribution Module is substantially better supported than the isolated claims describing it as an 8-channel analog-output or relay module. The latter specifications should be disregarded unless they can be traced to the physical unit’s original Emerson documentation.
