Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 5X00059G01 |
| Manufacturer | Emerson / Westinghouse Process Control |
| System | Ovation DCS |
| Module Type | HART Analog Input Personality Module |
| Number of Channels | 8 |
| Signal Range | 4–20 mA |
| Supported Transmitters | 2-wire loop-powered or 4-wire active-source |
| HART Function | HART communication interface |
| Electronic Module | 5X00058G01 |
| Personality Module Fuse | 0.063 A, 125 V fast-acting for original configuration |
| Revised Fuse Configuration | Rev. 2 or later documentation specifies 0.5 A, 125 V fast-acting |
| Typical Application | Process measurement and HART-enabled field transmitters |
The Ovation planning documentation identifies 5X00059G01 as the personality module paired with 5X00058G01 for an eight-channel HART analog input subsystem. The subsystem accepts 4–20 mA signals from two-wire loop-powered transmitters or four-wire active-source transmitters.
One procurement detail deserves attention: the fuse specification changed by revision. The Ovation I/O reference lists a 0.063 A, 125 V fuse for the earlier 5X00059G01 configuration and a 0.5 A, 125 V fuse for Rev. 2 or later. Do not substitute a fuse solely from a reseller listing without checking the module revision and applicable Ovation documentation.
Product Introduction
The Emerson 5X00059G01 is an Ovation DCS HART analog input personality module used with the 5X00058G01 electronic module. Together, they form an eight-channel HART analog input subsystem for 4–20 mA process transmitters. The interface supports both two-wire loop-powered transmitters and four-wire active-source current transmitters, making it suitable for conventional process measurement points that also require HART communication.
For plant maintenance, the important point is that 5X00059G01 is not simply a standalone analog input card. It is the personality portion of the Ovation I/O assembly. Replacing it with an apparently similar analog module without matching the electronic module, revision, wiring arrangement, and HART configuration can create commissioning problems even when the physical module appears compatible.

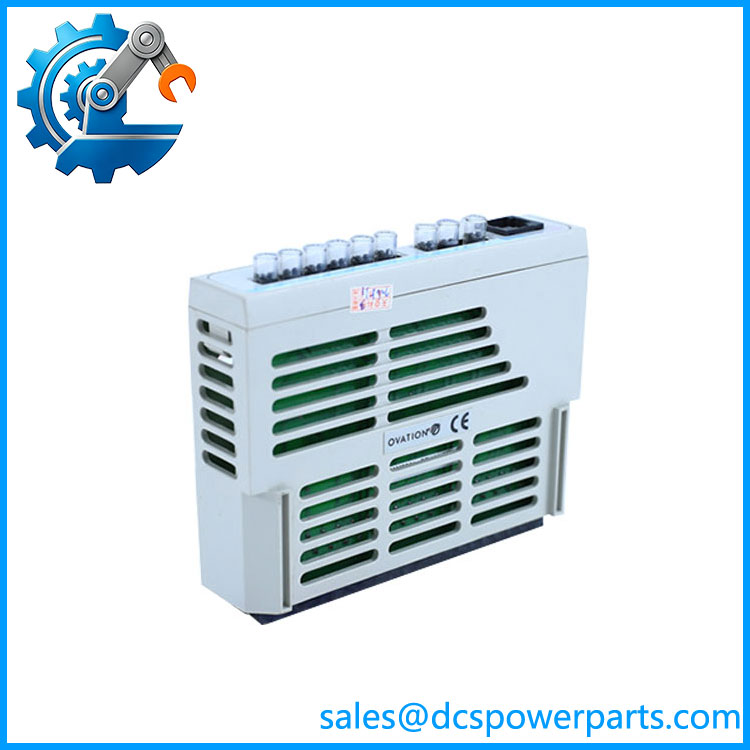

5X00059G01
Application Scenarios & Field Pitfalls
Engineering Pain Point
Legacy Ovation systems often remain in service long after the original I/O hardware has become difficult to source. The challenge is not just finding a module marked 5X00059G01; engineers need to confirm whether the installed assembly uses the correct 5X00058G01 electronic module, personality-module revision, fuse arrangement, and field wiring.
Typical Applications
- Power generation: turbine auxiliary systems, boiler instrumentation, and balance-of-plant transmitters.
- Water and wastewater: pressure, flow, level, and process-quality transmitters using 4–20 mA/HART.
- Steam and utility systems: temperature, pressure, differential-pressure, and flow measurement.
- Process plants: HART-enabled field transmitters requiring both analog process values and digital device communication.
Technical Pitfalls to Avoid
- Do not treat 5X00059G01 as the complete electronic I/O module. Ovation documentation pairs it with 5X00058G01.
- Check revision before replacing the fuse. The documented fuse arrangement differs between earlier units and Rev. 2-or-later configurations.
- Do not rely on generic reseller specifications. Some listings incorrectly describe this part as having an RS-232 port or provide unsupported voltage/current specifications. The Ovation system documentation is the better reference for determining its actual role.
Related Products
- 5X00058G01 — The electronic module paired with 5X00059G01 to form the eight-channel HART analog input subsystem.
- 5X00062G01 — Ovation HART analog output electronic module; used for the output side rather than analog input.
- 5X00063G01 — HART analog output personality module, paired with 5X00062G01.
- 5X00070G01–G03 — Ovation high-speed analog input electronic modules; a different I/O function from the HART AI subsystem.
- 1C31161G01–G02 — Ovation RTD input electronic modules; intended for RTD measurement rather than 4–20 mA/HART transmitters.
- 1C31164G01–G02 — Associated RTD personality modules.
- 1C31113G01–G06 — Conventional Ovation analog input electronic modules without the specific HART AI architecture.
Procurement Check
For a replacement 5X00059G01, verify 5X00059G01 + revision marking + 5X00058G01 electronic module + field transmitter type + fuse configuration before approving the part. A correct-looking personality module with the wrong revision or companion electronics is not a safe assumption for a plant I/O replacement.
