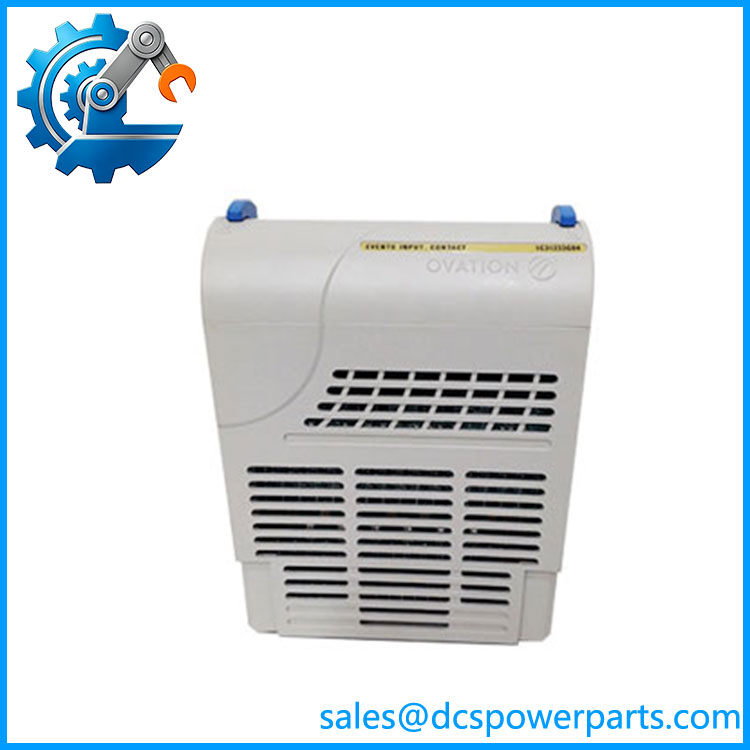

Emerson 1C31233G04 | Ovation DCS SOE Input Replacement Module

Emerson 1C31233G04 | Ovation DCS SOE Input Replacement Module

  • Model: 1C31233G04
  • Brand: Emerson
  • Series: Ovation Distributed Control System Compact I/O
  • Core Function: Captures time-critical contact changes from field devices and records sequence-of-events information for event analysis, fault investigation, and process monitoring.
  • Product Type: Sequence of Events (SOE) Contact Input EMOD Module
  • Key Specs:
    • 16-channel compact contact input design
    • Supports 48 VDC wetting voltage applications
    • High-speed event capture for Ovation DCS event recording systems
Add To Quote
Category: SKU: Emerson 1C31233G04

Description

Product Overview

The Emerson 1C31233G04 is a Compact Sequence of Events (SOE) Contact Input Module designed for Emerson Ovation Distributed Control System installations. The module acquires discrete contact transitions from field equipment and provides precise event information to the Ovation control environment. Unlike standard digital input modules used only for status monitoring, the Emerson 1C31233G04 is designed for applications where the timing relationship between multiple events is critical, such as generator protection analysis, turbine trip investigation, breaker operation monitoring, and plant disturbance recording.

Configured with 16 input channels, the 1C31233G04 supports contact input applications with onboard 48 VDC wetting capability. The module works within Ovation compact I/O assemblies and is paired with the appropriate personality interface or cavity insert depending on the cabinet configuration. Sequence-of-events modules are commonly installed where operators and engineers need accurate event chronology after abnormal operating conditions. Capturing the exact order and timing of contact changes helps maintenance teams identify initiating events instead of relying only on general alarm histories.

For existing Ovation installations, the Emerson 1C31233G04 remains a practical spare for maintaining legacy SOE monitoring functions. Replacement work requires checking the installed I/O carrier, termination arrangement, point configuration, and event recording settings before commissioning. To be completely transparent, SOE modules are more sensitive to configuration details than standard digital input cards because timing accuracy, contact wiring, and event database settings all affect the final diagnostic value.



Product Introduction (Non-Templated)

A plant trip investigation often depends on milliseconds of information that ordinary status inputs cannot provide. The Emerson 1C31233G04 gives Ovation systems dedicated sequence-of-events input capability for recording critical contact transitions.

Supporting 16 contact input channels with 48 VDC wetting capability, this module is commonly used in power generation control systems, protection monitoring applications, and legacy Ovation DCS maintenance projects.



Key Technical Specifications

Parameter Value
Product Model 1C31233G04
Manufacturer Emerson
System Platform Ovation Distributed Control System
Product Type Sequence of Events (SOE) Input EMOD Assembly
Input Channels 16 Channels
Input Signal Type Contact Input
Input Function Sequence-of-Events Recording
Wetting Voltage 48 VDC onboard wetting supply
Module Design Compact I/O Module
Termination Interface Compatible Ovation Personality Module / Cavity Insert
Event Recording Time-stamped contact transitions
Installation Ovation Compact I/O Carrier
Application Areas Power generation, turbine control, process monitoring
Condition New Surplus, Factory Sealed



Related Products

  • Emerson 1C31233G01 — Compact SOE input module for 24 VDC or 48 VDC single-ended sequence-of-events applications. Suitable where onboard 48 V wetting is not required.
  • Emerson 1C31233G02 — Compact SOE input module supporting differential input configurations. Used for installations requiring differential signal detection.
  • Emerson 1C31233G03 — Compact SOE input module designed for 125 VDC differential applications. Common in higher-voltage plant protection interfaces.
  • Emerson 1C31238H01 — Personality cavity insert used with compact SOE/contact input modules to provide wiring identification and interface support.
  • Emerson 1C31232G03 — Compact digital input module for standard discrete monitoring applications. Different from the 1C31233G04 because it does not focus on high-resolution event capture.
  • Emerson 1C31122G01 — 16-channel digital output module used for actuator and relay control functions rather than event collection.
  • Emerson 1C31219G01 — 16-channel relay output module for contact switching applications where mechanical relay outputs are required.
  • Emerson 1C31203G01 — Remote Node Controller module supporting distributed Ovation I/O communication architectures.

1C31233G04

Frequently Asked Questions (FAQ)

1. Is the Emerson 1C31233G04 compatible with my existing Ovation DCS system?

The module is designed for Ovation Compact I/O systems, but the exact installation must be verified.

Check:

  • Ovation controller generation
  • Compact I/O carrier type
  • Termination arrangement
  • Personality module configuration
  • SOE database settings

A direct part number match is important, but the surrounding I/O hardware determines successful integration.

2. Can I hot-swap this?

The Ovation platform supports online maintenance features in certain configurations, but SOE module replacement procedures depend on the installed cabinet design.

Typical steps:

  1. Confirm the active I/O slot
  2. Verify backup configuration data
  3. Follow approved maintenance procedures
  4. Install replacement module
  5. Confirm event acquisition and diagnostics

The plant operating procedure should define whether online replacement is permitted.

3. Does the 1C31233G04 support firmware v3.1?

The module is an I/O acquisition device rather than an independently programmed controller.

Compatibility depends on:

  • Ovation software release
  • I/O configuration database
  • Module revision
  • Controller firmware environment

The engineering database should be checked before installation.

4. Will I lose my event configuration when replacing the 1C31233G04?

The module itself does not contain the complete Ovation application database.

Before replacement:

  • Save SOE point configuration
  • Record channel assignments
  • Verify contact input mapping
  • Restore and validate event settings

The controller database contains the primary configuration information.

5. How can I verify a New Surplus Emerson 1C31233G04 is authentic?

Recommended inspection points:

  • Confirm Emerson/Ovation label markings
  • Verify model number and revision
  • Inspect module connectors
  • Check physical condition
  • Review available testing documentation

Unused inventory condition should still be verified before installation into a critical control system.

6. Can the 1C31233G04 support an Ovation DCS upgrade project?

Yes, when the upgrade maintains compatible Ovation Compact I/O architecture.

Typical uses include:

  • Restoring SOE monitoring channels
  • Replacing failed event input modules
  • Supporting turbine and generator analysis systems
  • Maintaining existing protection monitoring schemes

The complete I/O design should be reviewed during upgrade planning.

7. What should engineers check before commissioning this SOE module?

Verify:

  1. Correct I/O slot assignment
  2. Proper contact wiring
  3. 48 V wetting supply operation
  4. SOE point configuration
  5. Event timestamp performance
  6. Controller communication status

These checks confirm the module is collecting meaningful event data rather than only showing basic input states.
