Description
Emerson 1C31232G02 | Compact Digital Input Module | Ovation DCS
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson Process Management / Westinghouse |
| Product Model | 1C31232G02 |
| System | Ovation DCS |
| Product Type | Compact Digital Input Electronics Module |
| Number of Channels | 16 |
| Input Configuration | Differential |
| Input Voltage | 24/48 VAC/VDC |
| Individual Fusing | Supported with 5X00034G01 personality module |
| Channel-to-Channel Isolation | 1000 VAC |
| Channel-to-Logic Isolation | 2000 VAC |
| Propagation Delay | 16 ms maximum for 24/48 VDC; 14 ms maximum for 24 VAC |
| Cable Length | Up to 1000 ft at 50 pF/ft or better |
| Diagnostics | Internal module faults; blown-fuse detection where applicable |
| Main Power Consumption | 1.1 W typical, 1.5 W maximum |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Humidity | 0–95%, non-condensing |
| Field Connection | Ovation base unit / personality module arrangement |
Emerson’s Ovation I/O reference identifies 1C31232G02 as the 24/48 VAC/VDC differential version of the Compact Digital Input module. The electronics module provides 16 inputs and can be paired with 5X00034G01 when individual point fusing with a common supply is required.
The same reference gives 1000 VAC channel-to-channel isolation and 2000 VAC differential channel-to-logic isolation, with operating temperature specified from 0 to 60°C.
Product Introduction
The Emerson 1C31232G02 is a 16-channel Compact Digital Input electronics module for the Ovation DCS. Unlike the 1C31232G01 single-ended version, the G02 uses differential field inputs and is designed for 24/48 VAC or VDC digital signals from field switches, contacts, and other discrete devices.
The module can be used with the 5X00034G01 personality module when individual fusing is required for the 16 input points. If individual fusing is not required, the Ovation architecture provides a cavity insert for the personality-module position.

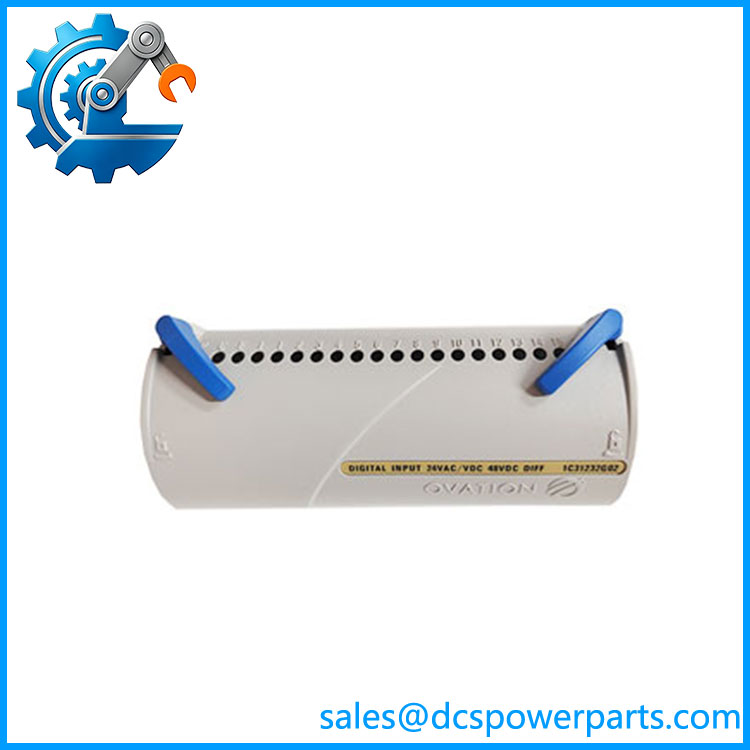

1C31232G02
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
The 1C31232G02 sits directly between field discrete signals and the Ovation controller. A problem that appears to be a failed input card may actually come from the field supply, wiring, personality module, fuse arrangement, or incorrect differential-input configuration.
Typical Applications
- Ovation DCS digital input cabinets for process and power-generation applications.
- 24/48 VAC field contacts and switches requiring differential signal acquisition.
- 24/48 VDC discrete signals from field instruments, relays, and auxiliary equipment.
- Individually fused digital-input applications using the 5X00034G01 personality module.
Technical Pitfalls to Avoid
- Do not confuse G02 with G01.
1C31232G01 is the 24/48 VDC single-ended version, while 1C31232G02 is the 24/48 VAC/VDC differential version. They are different field-input architectures and should not be substituted based only on channel count. - Check the personality module before replacing the electronics module.
The 5X00034G01 personality module provides individual fusing for the 16 differential inputs with a common supply. The alternative cavity insert is used when that individual-fusing arrangement is not required. - Do not use generic online specifications for this part.
Some third-party listings incorrectly describe 1C31232G02 as having 32 channels or ±40 V input characteristics. Those claims conflict with the Ovation reference manual, which specifies 16 channels and 24/48 VAC/VDC differential inputs. - Remember that differential inputs have reversible polarity at the input terminal.
The Ovation documentation notes that each G02 differential channel has a diode bridge at the front end, so the connections to the positive and negative input rows are reversible. The cabinet wiring drawing should still be followed exactly during maintenance.
Related Products
- Emerson 1C31232G01 — 16-channel 24/48 VDC single-ended Compact Digital Input electronics module.
- Emerson 1C31232G03 — 16-channel 125 VAC/VDC differential Compact Digital Input electronics module.
- Emerson 5X00034G01 — Personality module providing individual fusing for the 16 differential digital inputs.
- Emerson 1C31238H01 — Cavity insert used in the personality-module position when individual fusing is not required.
- Emerson 1C31233G02 — 24/48 VDC differential Sequence-of-Events digital input electronics module.
- Emerson 1C31233G01 — 24/48 VDC single-ended SOE input electronics module.
- Emerson 1C31234G01 — Related Ovation input module within the Compact I/O family.
- Emerson Ovation I/O Base — Mechanical and electrical base arrangement supporting the electronics and personality modules.
Procurement Check
Before approving an Emerson 1C31232G02 replacement, verify:
- Exact part number: 1C31232G02
- Ovation system generation
- 16-channel differential configuration
- 24/48 VAC/VDC field signal range
- Existing personality module
- Whether 5X00034G01 individual fusing is installed
- Existing cavity insert, if no fused personality module is used
- Field wiring polarity and terminal assignment
- Controller I/O database configuration
- Cabinet base-unit type
- Module revision and nameplate
- Existing field-device voltage
- Input response timing requirements
Recommended procurement description:
Emerson Ovation 1C31232G02 Compact Digital Input Electronics Module, 16-Channel Differential Digital Input, 24/48 VAC/VDC, Supports 5X00034G01 Individually Fused Personality Module.
The key distinction is straightforward: 1C31232G02 is a 16-channel differential digital-input electronics module, not a generic analog or digital I/O card. For replacement work, the field voltage, differential wiring arrangement, personality module, and fusing configuration should all be matched before installation.
