Description

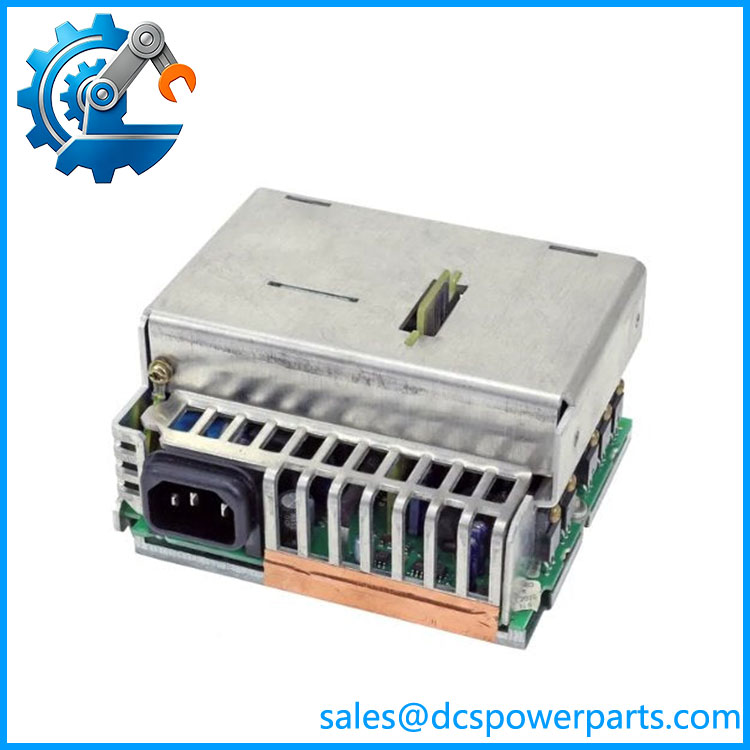

CONVERTEAM MVC3003-4030PP | MV3000 Delta SMPS | Drive Power Supply
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | CONVERTEAM |
| Model | MVC3003-4030PP |
| Series | / ALSPA Delta |
| Product Type | Switch Mode Power Supply |
| Primary Function | Electronic power supply for Delta drive electronics |
| System Input Class | 575–690 VAC |
| Power Source | Drive DC link |
| Compatible Transistor Bridge | MVDL800-4701 |
| Compatible Transistor Bridge | MVDL1000-4701 |
| Instantaneous DC-Link Trip Level | Approx. 1188 VDC |
| Timed DC-Link Trip Level | Approx. 1262 VDC |
| Maximum Reported DC-Link Trip Level | Approx. 1275 VDC, configuration/reference dependent |
| Operating Temperature | Approx. 0°C to +50°C |
| Dimensions | Approx. 245 × 220 × 65 mm, excluding brackets |
| Weight | Approximately 1.8 kg in some published references |
| Typical Installation | DELTA position 1 |
Published references consistently place the in the CONVERTEAM /ALSPA Delta family and identify its primary function as a switch-mode power supply. The module derives its operating energy from the drive DC link and supplies the electronic circuitry associated with compatible Delta transistor bridges and the controller.
The published dimensional and weight data are not completely consistent across secondary sources, so those values should be treated as procurement-reference figures rather than cabinet-design dimensions. The same caution applies to the exact DC-link protection thresholds, where different references report slightly different values.
Product Introduction
The is a dedicated switch-mode power supply used within the Delta drive architecture. Its role is not to function as a standalone variable-frequency drive, but to provide the electronic supply required by compatible Delta transistor bridge hardware and associated control electronics. The module is therefore a system-dependent component and should be evaluated against the complete drive configuration.
For maintenance teams, the matters because a failure in this supply can disable associated drive electronics even when the main power-conversion hardware remains serviceable. Correct replacement requires matching the variant, Delta bridge type, DC-link environment, mounting arrangement, and the hardware revision installed in the existing cabinet.
MVC3003-4030PP
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A common troubleshooting mistake on legacy equipment is treating every DC-link-related fault as a transistor-bridgee. The sits in the electronic power-supply path, so a failed SMPS, abnormal DC-link condition, or poor connection can produce drive faults that initially appear to originate elsewhere.
Typical Applications
1. Delta variable-speed drives
The is used as part MV3000 Delta drive architecture, supplying the electronics associated with the Delta power-conversion section.
2. High-power industrial motor systems
Compatible Delta installations can be found in applications requiring controlled operation of large industrial motors,gh the itself is a supporting power component rather than the complete motor drive.
3. Legacy Converteam drive cabinets
The module is particularly relevant to plants maintaining older CONVERTEAM drive installations where an exact replacement is preferable to modifying the complete control and power architecture.
4. Delta transistor-bridge systems
Published compatibility references specifically associate the -4030PP variant with MVDL800-4701 and MVDL1000-4701 transistor bridge configurations.
Technical Pitfalls
1. Do not classify it as a generic PLC power supply.
The is tied MV3000 Delta drive architecture. Its electrical interfaces and protection characteristics are determined by the drive system in which it operates.
2. Verify the transistor bridge before substitution.
The -4030PP designation is associated with specific Delta transistor bridge types. Confirm the installed bridge part number before accepting a replacement.
3. Check DC-link conditions.
The published protection thresholds are relatively high because this module operates in a high-energy drive environment. Abnormal DC-link voltage can cause repeated trips or damage and should be investigated before replacing the SMPS.
4. Do not rely on the nominal AC input description alone.
Some published descriptions identify 575–690 VAC, while the module obtains its operating power from the drive DC link. The actual cabinet topology should therefore be checked against the documentation rather than treating the module as a conventional three-phase AC power supply.
5. Check overvoltage-trip configuration.
References describe both instantaneous and timed DC-link trip thresholds, with the timed threshold allowing a defined voltage excursion. Exact values and duration should be verified against the installed system configuration.
6. Do not assume the “PP” suffix means servo functionality.
Some reseller material describes this unit as a servo-drive module, but the stronger product referencesfy the as an SMPS. For procurement and engineering records, the power-supply classification is the safer description.
7. Inspect the complete drive before condemning the supply.
Check DC-link voltage, bridge condition, control connections, cooling, wiring, and evidence of electrical overstress. ng the without addressing a downstream bridge fault can result in another supply failure.
Related Products
- CONVERTEAM MVDL800-4701 — compatible Delta transistor bridge refereth the .
- CONVERTEAM MVDL1000-4701 — another compatible Delta transistor bridge configuration.
- CONVERTEAM -4025 — related Delta SMPS variant; application and position must be checked before substitution.
- CONVERTEAM -4020 — related power-supply variant with different system/application requirements.
- CONVERTEAM -6030 — related power-supply variant associated with different application requirements.
- CONVERTEAM Delta Controller — control hardware operating with the Delta drive power architecture.
- CONVERTEAM MV3000e Delta — associated drive platform.
- CONVERTEAM Delta Drive — complete drive system in which the power-supply family is installed.
Procurement Note
When sourcing , the most important information is the complete model number and the existing Delta configuration. Confirm the transistor bridge type, controller arrangement, DC-link environment, mounting position, connector configuration, and hardware revision before replacement.
For used or surplus inventory, inspect the power-supply enclosure, connectors, mounting hardware, PCB condition, signs of overheating, capacitor condition, contamination, and evidence of DC-link overvoltage. If the original unit failed following a drive trip, determine whether the failure originated inside the SMPS or was caused by an abnormal downstream condition.
Also be cautious with listings that se the using generic terms such as “servo drive,” “high-power inverter,” or “PLC power module.” The more technically accurate procurement description is CONVERTEAM Delta Switch Mode Power Supply, used to supply compatible drive electronics.
Engineering classification: ERTEAM 000/ALS000 Delta switch-mode power supply for compatible Delta transistor-bridge and control electronics.
