Description

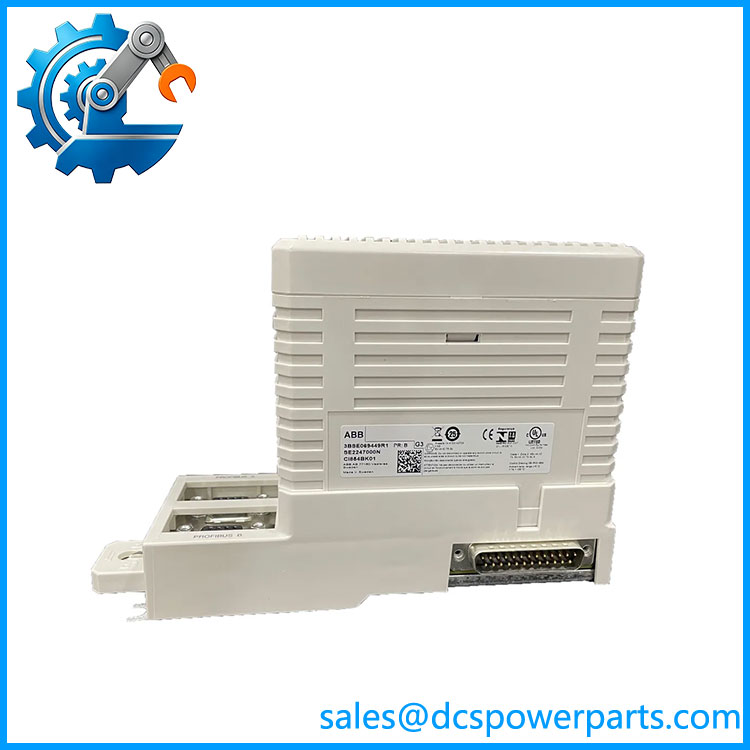

The product CI854BK01 (Catalog / Order Number: 3BSE069449R1) is an ABB AC 800M PROFIBUS DP-V1 Communication Interface Kit.
Component Breakdown & Specifications
-
Manufacturer: ABB
-
Product Family: ABB System 800xA / AC 800M Controller Hardware
-
Kit Contents: Includes the CI854B Communication Module (CEM) and the TP854 Communication Baseplate (CEB).
Key Features
-
Protocol: PROFIBUS DP-V1 (Master Class 1 and 2)
-
Transmission Speed: Adjustable from 9.6 kbit/s up to 12 Mbit/s
-
Redundancy Support:
-
Supports Line Redundancy via dual physical ports (Port A and Port B on the baseplate).
-
Supports Master Redundancy when configured with a secondary CI854B module for high-availability systems.
-
-
Hot Swap: Fully supports online insertion and removal (hot-swapping) during active operation without system downtime.
CI854BK01
Product Overview
CI854BK01 (Order Code: 3BSE069449R1) is the PROFIBUS DP-V1 Master Communication Interface Module (CI854B) manufactured by ABB for AC 800M / System 800xA DCS platform.
This assembly includes CI854B communication unit + TP854 baseplate. It acts as PROFIBUS-DP master gateway, connecting AC800M controller to PROFIBUS field network, realizing cyclic I/O data exchange and acyclic DP-V1 service communication. It supports line redundancy via dual DB9 PROFIBUS ports, and can configure master redundancy for high-reliability control loops.
Commonly connected to S800 remote I/O, variable frequency drives, flow meters and other PROFIBUS slave devices in power and process industries. It is the upgraded successor of CI854AK01.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | CI854BK01 (3BSE069449R1) |
| Module Type | PROFIBUS DP-V1 Master Communication Interface |
| Manufacturer | ABB |
| Applicable Platform | AC 800M Controller, System 800xA DCS |
| Included Hardware | CI854B main unit + TP854 DIN rail baseplate |
| PROFIBUS Interface | Dual DB9 ports, support bus line redundancy |
| Protocol Support | PROFIBUS DP, DP-V1 acyclic communication |
| Max Nodes per Segment | 31 nodes; up to 124 nodes with repeaters |
| Communication Speed | 9.6 kbps ~ 12 Mbps |
| Internal Bus | CEX-bus (connects to AC800M controller rack) |
| Power Supply | 24 VDC via baseplate |
| Mounting | DIN rail vertical installation |
| Hot Swap | Supported |
| Operating Temperature | 0 ℃ ~ +60 ℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Protection Class | IP20 (cabinet installation) |
| Engineering Software | Control Builder M |
| Status Indicators | Power, Run, Fault, Bus communication LEDs |
| Spare Part Status | Production discontinued; new surplus and refurbished modules available |
Key Features
- Dual PROFIBUS DP ports realize bus line redundancy, avoid single cable break communication failure
- Supports DP-V1 acyclic services: parameter reading/writing, device diagnosis for intelligent field instruments
- Supports master redundancy configuration (two CI854BK01 modules) for critical control systems
- Built-in comprehensive bus diagnosis, detects bus short, open circuit and slave node offline
- Mechanical code lock on TP854 baseplate prevents mismatched module installation
- Compatible with S800 I/O, mainstream PROFIBUS drives and third-party slave devices
- Can connect PROFIBUS PA instruments via LD800P link device
- Strict firmware and hardware revision verification; cannot be directly interchanged with CI854AK01 without project validation
- Standard spare communication hardware for legacy ABB 800xA DCS maintenance and retrofit
