Bently Nevada 84152-01 | Quad Relay Module | 3300/16 Replacement

Description

Bently Nevada 84152-01 | 3300/16 Quad Relay Module

Key Technical Specifications

Bently Nevada’s 3300/16 documentation lists 84152-01 as the Quad Relays spare relay assembly, alongside 81544-01 for no relays, 81545-01 for dual epoxy relays, and 81546-01 for dual hermetic relays. The documentation also states that quad relays are not available with the internal safety-barrier option.

Product Introduction

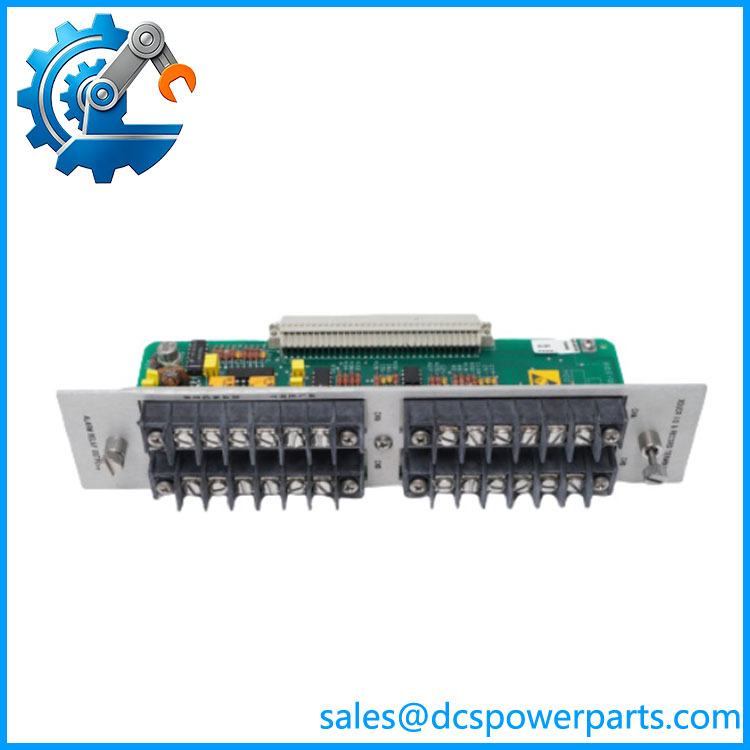

The Bently Nevada 84152-01 is a quad relay module used with the 3300/16 XY/GAP Dual Vibration Monitor. It provides four relay circuits for transferring monitor alarm or status conditions into the plant’s external machinery-protection, annunciation, interlock, or shutdown circuitry. Bently Nevada’s maintenance documentation specifically identifies 84152-01 as the Quad Epoxy Sealed signal-input relay module.

This component should not be confused with the 3300/16 monitor itself or with its monitor circuit assembly. The 84152-01 is a replaceable relay assembly selected as part of the monitor’s configuration. For a replacement, the complete 3300/16 catalog configuration and the required relay arrangement should be checked rather than matching the part number in isolation.

84152-01

Application Scenarios & Field Pitfalls — Engineer’s Perspective

Engineering Pain Point

A relay-module failure can disable an alarm or trip interface even though the vibration-monitoring electronics continue to display valid measurements. This makes 84152-01 a protection-interface component rather than the actual vibration measurement circuit.

Typical Applications

• 3300/16 XY/GAP Dual Vibration Monitor installations
• Rotating-equipment vibration protection systems
• Alarm annunciation and machinery interlock circuits
• Plant shutdown or protective relay interfaces driven by 3300-series monitor alarms

The 3300/16 itself monitors two independent radial-vibration channels and average shaft position using two proximity-probe/Proximitor systems. The 84152-01 provides the corresponding quad-relay option for the monitor’s external alarm interface.

Technical Pitfalls to Avoid

1. Do not confuse 84152-01 with the complete 3300/16 monitor.
   It is a replacement relay module, not the vibration-monitoring electronics. The 3300/16 monitor contains the measurement and alarm-processing circuitry; 84152-01 handles the quad-relay interface.
2. Confirm the relay configuration before ordering.
   The 3300/16 supports several relay-module configurations, including no relay, dual epoxy, dual hermetic, quad relay, and internal-barrier variants. 84152-01 specifically corresponds to the Quad Relay configuration.
3. Check safety-barrier requirements.
   Bently Nevada’s documentation states that the quad-relay option is not available with the internal safety-barrier option. If the installed monitor uses an intrinsically safe/internal-barrier configuration, do not substitute 84152-01 without confirming the complete catalog configuration.
4. Do not assume every 84152-01 listing describes the same assembly.
   Some surplus listings describe the item as “XDUCR I/O and Record Terminals” or attach other assembly numbers. The Bently Nevada 3300/16 documentation provides the more reliable functional identification: 84152-01 = Quad Relay spare module.

Related Products

• Bently Nevada 3300/16 — XY/GAP Dual Vibration Monitor that uses the 84152-01 quad-relay option.
• Bently Nevada 81544-01 — No-relay configuration for the 3300/16.
• Bently Nevada 81545-01 — Dual epoxy-sealed relay module.
• Bently Nevada 81546-01 — Dual hermetically sealed relay module.
• Bently Nevada 88984-01 — Dual hermetic relay module with internal barriers.
• Bently Nevada 88984-02 — Dual epoxy relay module with internal barriers.
• Bently Nevada 88984-03 — No-relay module with internal barriers.
• Bently Nevada 88706-01 — Spare jumper set used with the 3300/16 monitor configuration.
• Bently Nevada 83729-01 — Assembly number frequently associated in surplus documentation with the 84152-01 relay/terminal assembly; verify the physical assembly and nameplate when sourcing a complete assembly.

Procurement Check

Before approving a Bently Nevada 84152-01, verify:

• Exact part number: 84152-01
• Host monitor: 3300/16 XY/GAP Dual Vibration Monitor
• Required configuration: Quad Relays
• Relay type: Epoxy sealed
• Complete 3300/16 catalog number
• Internal versus external safety-barrier configuration
• Existing relay wiring and terminal arrangement
• Required alarm/trip logic
• Whether the required item is the 84152-01 relay module alone or a larger terminal/relay assembly
• Physical condition and relay-contact test results for surplus stock

Recommended procurement description:

Bently Nevada 84152-01 Quad Relay Module, Signal Input Relay Module, Quad Epoxy-Sealed Relays, for 3300/16 XY/GAP Dual Vibration Monitor.

The important distinction is simple: 84152-01 is a four-relay replacement module for the Bently Nevada 3300/16 machinery-protection monitor, not the monitor’s vibration-processing circuit board. If the application involves internal safety barriers, the 84152-01 configuration requires particular caution because Bently Nevada specifies that the quad-relay option is not available with the internal-barrier configuration.
