Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 3500/94M |
| Part Number | 184826-01B |
| Manufacturer | Bently Nevada |
| Product Type | VGA Display Module |
| System Platform | 3500 Machinery Protection System |
| Main Function | Local display of machinery monitoring data |
| Display Interface | VGA output |
| Touch Interface | RS232 touch controller communication |
| Display Support | 10-inch / 15-inch VGA touchscreen options |
| Custom Screens | Up to 9 configurable display pages |
| Display Data | Vibration levels, alarms, event lists, module data, channel status |
| Rack Communication | 3500 internal backplane communication |
| Power Consumption | Approximately 4.6 W maximum |
| Operating Temperature | -20°C to +65°C |
| Mounting | 3500 rack module installation |
| Typical Applications | Turbines, compressors, rotating machinery monitoring |
Application Scenarios & Pain Points
The display layer of a machinery protection system is often overlooked until operators lose visibility during a critical event. A 3500 rack can continue collecting data, but without proper visualization, troubleshooting becomes slower and more dependent on engineering tools.
Typical applications:
Steam and Gas Turbine Monitoring
The Bently Nevada 3500/94M 184826-01B provides local access to turbine vibration information, alarm conditions, and system health data. Operators can view machine condition directly near the equipment instead of depending entirely on a remote workstation.
Compressor Condition Monitoring
Large centrifugal compressors rely on vibration protection systems to detect shaft displacement, imbalance, and bearing-related issues. The local display allows maintenance personnel to review alarms during inspection and troubleshooting.
Rotating Equipment Protection Systems
Used in plants where continuous monitoring of vibration channels, proximity probes, and machine protection alarms is required.
Brownfield Upgrade and Maintenance Projects
Many facilities continue operating Bently Nevada 3500 systems for long service periods. Replacing failed display modules can extend existing monitoring infrastructure without replacing the entire protection rack.
Field note: A compressor station experienced loss of local vibration display while the 3500 rack continued operating normally. Investigation showed the monitoring modules and sensors were healthy; the failed display interface prevented technicians from viewing alarms locally. Replacing the 3500/94M restored operator access without disturbing protection logic.

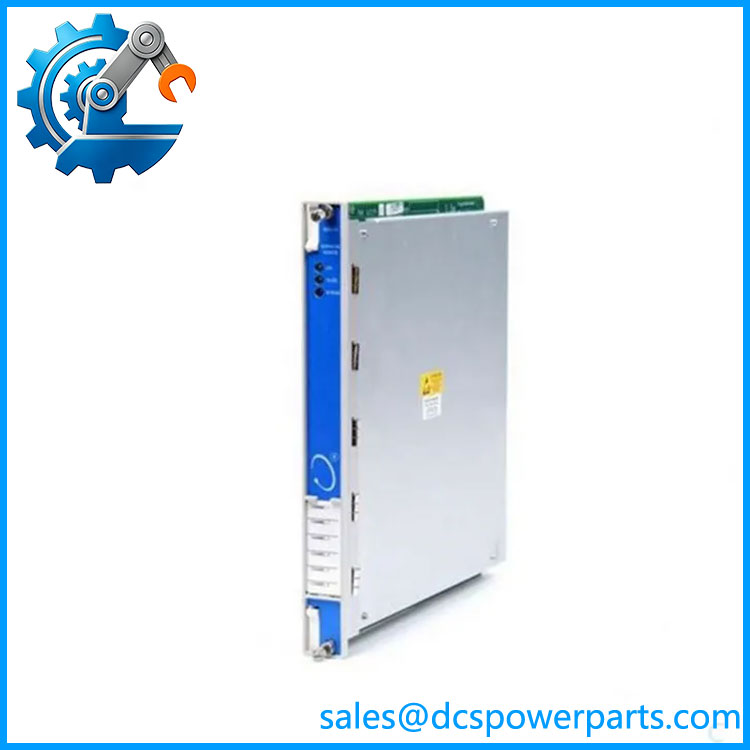

184826-01B
Related Products
- Bently Nevada 3500/94M VGA Display Monitor — Complete display solution including display module, I/O module, and touchscreen monitor components.
- Bently Nevada 3500/05 Rack — Main rack platform where 3500 monitoring modules and display interfaces are installed.
- Bently Nevada 3500/15 Power Supply Module — Provides rack power for the 3500 monitoring system.
- Bently Nevada 3500/22M Transient Data Interface — Used for communication and data acquisition functions within the 3500 platform.
- Bently Nevada 3500/42M Proximity Monitor — Handles vibration and position measurements from proximity probes.
- Bently Nevada 3500/50 Tachometer Module — Provides speed measurement and overspeed-related monitoring functions.
- Bently Nevada 3500/25 Keyphasor Module — Provides phase reference signals for advanced vibration analysis.
- Bently Nevada System 1 Software Platform — Used for centralized machinery condition monitoring and analysis.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Replacing the Display Module Without Checking Rack Configuration
The 3500/94M display depends on correct rack communication and configuration.
How to avoid:
Record the existing rack configuration, display settings, and custom screen layout before replacement.
⚠️ Assuming a Display Failure Means a Protection System Failure
A blank screen or missing display does not always indicate a failed monitoring rack.
How to avoid:
Check:
- Rack health LEDs
- Monitor module status
- Backplane communication
- Power supply condition
- Display cable connections
⚠️ Ignoring Touchscreen and Cable Compatibility
The display system includes multiple components, not only the rack module.
How to avoid:
Verify:
- VGA cable type
- Touch communication cable
- Display size configuration
- Router box requirements for multi-rack applications
Frequently Asked Questions (FAQ)
What is the Bently Nevada 3500/94M 184826-01B used for?
The Bently Nevada 3500/94M 184826-01B is a VGA display module used with the 3500 Machinery Protection System to display vibration measurements, alarms, events, and module status information.
Is the 3500/94M a monitoring module?
No. It is primarily a display interface module. The actual vibration measurement functions are performed by other 3500 monitoring modules.
What information can the 3500/94M display?
Typical displayed information includes:
- System event lists
- Alarm event lists
- Channel data
- Module status
- Vibration measurements
- Proximity probe gap values
- Custom operator screens
Can the 184826-01B replace another 3500/94M module?
Only after confirming:
- Part number revision
- Rack configuration
- Display hardware compatibility
- Existing software settings
What systems use the 3500/94M?
Common applications include:
- Steam turbines
- Gas turbines
- Compressors
- Pumps
- Large rotating machinery protection systems
Does replacing the 3500/94M require software configuration?
Usually yes. Engineers should verify display settings, custom screens, rack addressing, and communication status after replacement.
Is a refurbished Bently Nevada 3500/94M 184826-01B suitable for industrial service?
A tested refurbished unit can be suitable when display output, rack communication, touchscreen interface, and compatibility with the installed 3500 configuration are verified before returning the monitoring system to service.
