Description

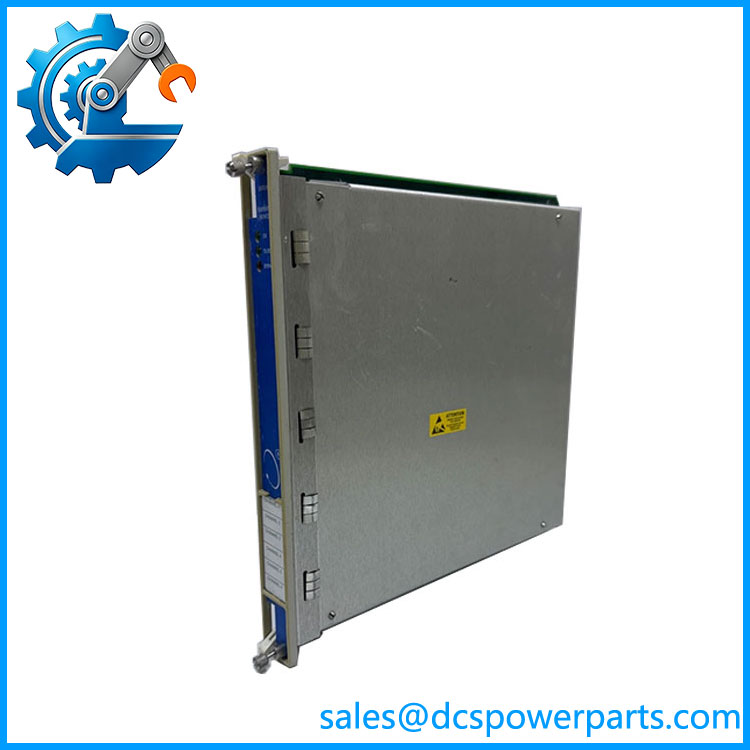

Bently Nevada 3500/60 | Six-Channel Temperature Monitor | Machinery Protection
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Bently Nevada 3500/60 |
| Current Monitor P/N | 163179-01 |
| Earlier Monitor P/N | 133811-01 |
| Product Family | 3500 Machinery Protection System |
| Measurement Type | Temperature / differential temperature |
| Number of Channels | 6 |
| Sensor Types | RTD and thermocouple |
| Recorder Outputs | Not provided |
| Alarm Processing | User-programmable setpoints |
| I/O Options | Non-isolated RTD/TC, isolated TC, and barrier versions |
| Rack Position | One full-height 3500 rack slot |
| Functional Safety | 3500 system available in SIL 2 configurations |
The 3500/60 accepts combinations of up to six RTD or thermocouple inputs, depending on the selected I/O module. Bently Nevada documentation lists separate non-isolated RTD/TC, isolated TC, and barrier I/O configurations.
Product Introduction
The Bently Nevada 3500/60 is a six-channel temperature monitor used within the 3500 Machinery Protection System. It conditions RTD and thermocouple signals, calculates temperature measurements, and compares them with configured alarm setpoints. The module is commonly applied to bearing metal temperature and other critical machine or process temperatures where temperature information forms part of the machinery protection scheme.
For plant maintenance, the important point is that 3500/60 identifies the monitor function, not the complete field-I/O configuration. The monitor must be matched with the correct 3500/60 I/O module and termination arrangement. Bently Nevada lists several compatible I/O module variants.
350060
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
Temperature channels are often treated as interchangeable because the replacement module carries the same 3500/60 designation. That assumption can cause problems during a shutdown. The monitor, I/O module, termination method, sensor type, isolation requirement, and rack configuration all need to agree before commissioning.
Typical Applications
- Turbine bearing temperature monitoring — Monitors radial and thrust-bearing metal temperatures.
- Compressor temperature supervision — Suitable for process temperatures such as suction and discharge measurements.
- Steam-temperature monitoring — Used where temperature forms part of a turbine or process monitoring scheme.
- Motor temperature monitoring — Can monitor motor stator temperature through compatible RTD arrangements.
Technical Pitfalls
- Do not confuse 3500/60 with 3500/61. They provide the same basic six-channel temperature-monitoring function, but the 3500/61 adds recorder outputs.
- Check the I/O module before ordering. Documented variants include 133819-01 for non-isolated RTD/TC internal termination, 133827-01 for external termination, 133835-01 for isolated TC internal termination, 133843-01 for isolated TC external termination, and 136711-01 for the barrier version.
- Sensor configuration matters. The monitor can be configured for RTD or TC measurements, but the installed I/O hardware must support the intended sensor arrangement.
- Do not assume recorder outputs. If the plant DCS or recorder receives a 4–20 mA temperature signal, verify whether the installation actually uses a 3500/61 or another signal-conditioning path. The standard 3500/60 itself does not provide the 3500/61 recorder outputs.
- Check isolation requirements. Bently Nevada provides isolated thermocouple versions and barrier configurations. Substituting a non-isolated I/O module into an installation designed around isolation can create a significant commissioning problem.
- Verify firmware and configuration before startup. The 3500 Rack Configuration Software is used to configure the temperature monitor. Existing configuration should be preserved and checked against the replacement hardware before the machine is returned to service.
Related Products
- Bently Nevada 3500/61 — Six-channel temperature monitor with recorder outputs; the closest functional alternative when 4–20 mA temperature outputs are required.
- Bently Nevada 3500/65 — 16-channel temperature monitor for installations requiring more temperature channels.
- 3500/60 133819-01 — RTD/TC non-isolated I/O module with internal termination.
- 3500/60 133827-01 — RTD/TC non-isolated I/O module with external termination.
- 3500/60 133835-01 — Isolated thermocouple I/O module with internal termination.
- 3500/60 133843-01 — Isolated thermocouple I/O module with external termination.
- 3500/60 136711-01 — RTD/TC I/O module with internal barriers and internal termination.
- 3500/20 — Rack Interface Module used as part of the broader 3500 system architecture.
Procurement Note
For a 3500/60 replacement, the model number alone is not enough for a reliable purchase specification. Record the monitor part number, installed I/O module part number, termination type, sensor type, isolation/barrier requirement, and existing rack configuration. The commonly encountered 163179-01 is the current documented 3500/60 monitor reference, while 133811-01 appears in earlier documentation as the 3500/60 monitor designation.
