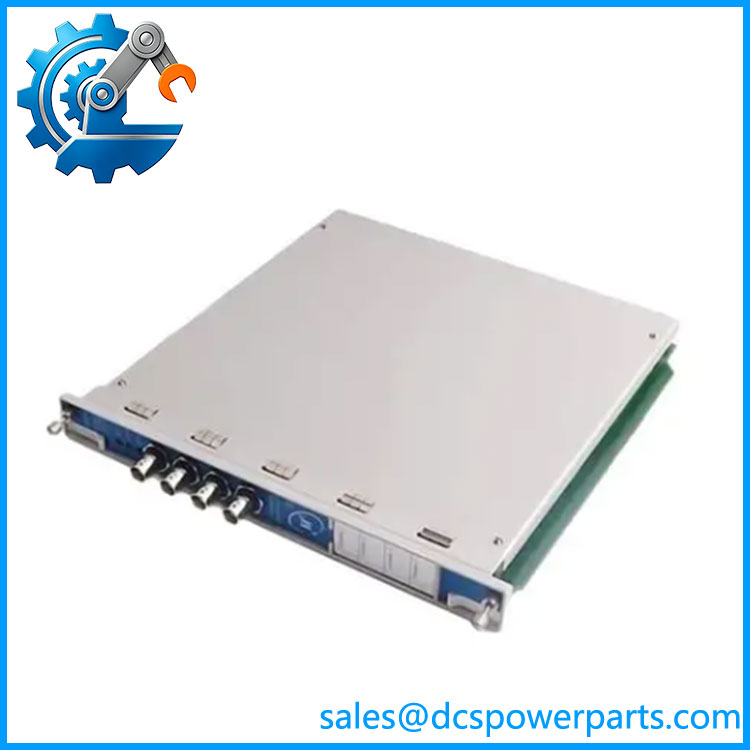

Bently Nevada 3500/46M 176449-06
Product Introduction
The Bently Nevada 3500/46M 176449-06 is a four-channel Hydro Monitor designed for integration into the Bently Nevada 3500 Machinery Protection System. It accepts signals from proximity, seismic, dynamic-pressure, and air-gap sensing arrangements and conditions those signals into measurements used for machinery protection and condition monitoring. The monitor supports hydro-specific measurement functions including Hydro Radial Vibration, Hydro Air Gap, Hydro Velocity, Hydro Acceleration, Hydro Thrust, Multimode Hydro RV, Multimode Air Gap, Multimode Hydro Velocity, Multimode Thrust, Multimode Acceleration, Multimode Hydro Dynamic Pressure, and Hydro Stator End Winding monitoring.
For engineers working with Bently Nevada 3500/46M 176449-06, the important point is that the module is application-configurable rather than being a generic four-channel vibration input card. The channels are programmed in pairs, and the selected measurement mode determines the required transducer and I/O arrangement. Hydro Radial Vibration, for example, can combine shaft-gap movement with NX amplitude to provide a measurement used for shear-pin failure detection. The monitor compares conditioned measurements against user-programmable alarms as part of the 3500 protection architecture.
The Bently Nevada 3500/46M 176449-06 is supplied as the monitor module itself; the associated I/O hardware must be matched to the selected application. Bently Nevada documentation identifies Prox/Velom I/O modules, multimode Prox/Velom I/O modules, and multimode positive-input I/O modules as compatible I/O options. This distinction matters when replacing a field module because the monitor part number alone does not establish the complete transducer interface.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 3500/46M |
| Part Number | 176449-06 |
| Manufacturer | Bently Nevada |
| Product Type | Hydro Monitor |
| System | 3500 Machinery Protection System |
| Number of Channels | 4 |
| Input Sensor Types | Proximity, seismic, dynamic pressure, air gap |
| Measurement Functions | Hydro vibration, velocity, acceleration, thrust, air gap, dynamic pressure, stator end winding and multimode configurations |
| Channel Configuration | Channels programmed in pairs |
| Signal Conditioning | Vibration, position, static/dynamic pressure and application-specific hydro measurements |
| Alarm Function | User-programmable alarms |
| Installation | Bently Nevada 3500 rack |
| Compatible I/O | Prox/Velom, Multimode Prox/Velom, Multimode Positive Input |
| Monitor Power Consumption | Approximately 7.7 W typical |
| Related Manual | 144403-01 |
| Monitor Spare P/N | 176449-06 |
The manufacturer datasheet confirms the 176449-06 ordering number and the four-channel Hydro Monitor architecture. Some electrical figures commonly reproduced by third-party sellers refer to particular I/O modules or transducer configurations rather than the 3500/46M monitor itself, so they should not be copied into a generic product specification without checking the exact configuration.
350046M-176449-06
Main Features and Engineering Considerations
Four-Channel Hydro Monitoring
The 3500/46M provides four monitoring channels intended specifically for hydroelectric machinery applications. Unlike a standard vibration monitor, its configuration supports measurements associated with turbine shaft vibration, air gap, thrust, velocity, acceleration, dynamic pressure, and stator end winding conditions.
Hydro Radial Vibration
One specialized function is Hydro Radial Vibration. The monitor can combine shaft-gap movement with NX amplitude to produce a measurement that can be used for shear-pin failure detection. This is an application-specific protection function, so the transducer selection, channel configuration, and alarm setup need to be reviewed together rather than treating each input as an independent generic vibration channel.
I/O Compatibility Matters
A common procurement mistake is matching only the 176449-06 monitor number while overlooking the I/O module. Bently Nevada lists several associated I/O choices, including 140471-01 and 140482-01 Prox/Velom I/O modules, 169459-series multimode Prox/Velom modules, and 169715-series multimode positive-input modules. Internal- and external-termination versions are different hardware arrangements.
Replacement and Configuration Risk
When replacing an existing 3500/46M, record the existing channel assignments before removing the module. Check the installed I/O module, transducer type, channel pair configuration, alarm settings, measurement mode, and rack configuration. A replacement monitor with the correct part number can still require configuration work before it reproduces the original protection scheme.
Procurement Perspective
For a used Bently Nevada 3500/46M 176449-06, request photographs of the front label and rear connector area, the complete rack configuration, the installed I/O modules, and available configuration information. Do not accept a listing that describes 176449-06 simply as a “24 VDC power supply.” That description is inconsistent with Bently Nevada’s documentation, which identifies 176449-06 specifically as the 3500/46M Hydro Monitor.
Application Scenarios
- Hydroelectric turbine vibration protection
- Hydro generator machinery monitoring
- Radial shaft vibration monitoring
- Turbine air-gap monitoring
- Hydro turbine thrust monitoring
- Hydro velocity and acceleration measurement
- Dynamic pressure monitoring
- Stator end winding monitoring
- Shear-pin failure detection
- Hydro turbine condition-monitoring systems
Engineer’s Guide: Field Pitfalls
1. Do not confuse the monitor with the I/O module.
176449-06 is the Hydro Monitor. The transducer interface is provided through associated 3500/46M-compatible I/O hardware.
2. Verify the exact I/O part number.
Internal-termination and external-termination versions are different assemblies. Bently Nevada lists separate part numbers for these configurations.
3. Confirm the measurement mode.
A 3500/46M configured for Hydro Air Gap is not necessarily configured the same way as one used for Hydro Radial Vibration or Hydro Dynamic Pressure.
4. Check channel pairing.
The manufacturer specifies that channels are programmed in pairs. Record the existing configuration before replacing the monitor.
5. Match the transducer to the I/O.
Do not assume that any proximity or seismic sensor can be connected simply because the monitor supports that general sensor category.
6. Do not copy power-supply specifications from reseller listings.
Several online listings incorrectly characterize this part as a low-voltage power-input module. The manufacturer identifies 176449-06 as the Hydro Monitor.
Frequently Asked Questions
What is Bently Nevada 3500/46M 176449-06?
It is a four-channel Hydro Monitor for the Bently Nevada 3500 Machinery Protection System. It is designed for hydroelectric turbine and generator monitoring applications.
Is 176449-06 a power supply?
No. The manufacturer’s ordering information identifies 176449-06 as the 3500/46M Hydro Monitor.
How many channels does the 3500/46M have?
It is a four-channel instrument. The channels are configured in pairs.
What sensors can the 3500/46M accept?
Depending on configuration and associated I/O hardware, it accepts signals from proximity, seismic, dynamic-pressure, and air-gap sensing systems.
What applications does the 3500/46M support?
Its documented functions include Hydro Radial Vibration, Hydro Air Gap, Hydro Velocity, Hydro Acceleration, Hydro Thrust, Multimode Hydro RV, Multimode Air Gap, Multimode Hydro Velocity, Multimode Thrust, Multimode Acceleration, Hydro Dynamic Pressure, and Hydro Stator End Winding monitoring.
What should be checked when replacing 176449-06?
Verify the complete monitor part number, installed I/O module, transducer type, channel-pair configuration, measurement mode, alarm configuration, rack configuration, and termination arrangement.
