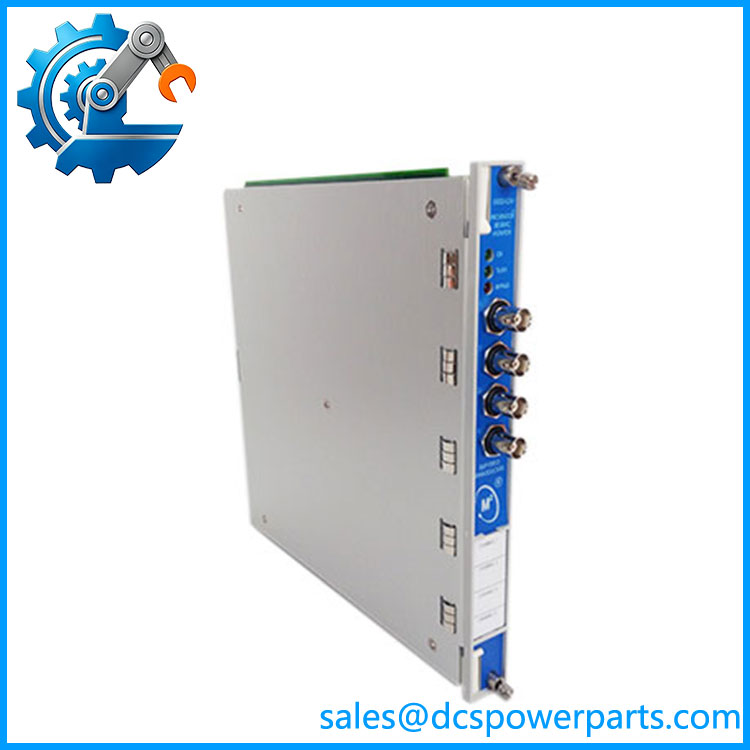

Bently Nevada 3500/42-09-R0 Proximitor Seismic Monitor
Product Overview
The Bently Nevada 3500/42-09-R0 belongs to the 3500 machinery protection architecture and corresponds to the 3500/42M Proximitor Seismic Monitor family. This is a four-channel monitor designed to accept signals from proximity, velocity, or acceleration transducers, condition those signals, calculate machinery parameters, and compare configured measurements against alarm setpoints. Depending on configuration, the monitor can handle radial vibration, thrust position, differential expansion, eccentricity, acceleration, velocity, shaft absolute measurements, REBAM, and circular acceptance region functions.
The monitor channels are programmed in pairs. Channels 1 and 2 can perform one selected measurement function while channels 3 and 4 perform another function or the same function, subject to the supported configuration. That makes the 3500/42M more flexible than a fixed-purpose vibration card, but it also creates an important commissioning requirement: the installed transducer type, measurement assignment, filtering, full-scale range, and alarm configuration must be checked rather than assuming that every 3500/42M performs the same measurement.
In an operating turbine, compressor, pump, motor, gearbox, or other rotating machine, this distinction matters. The 3500/42M is part of a machinery protection system, not merely an analog vibration transmitter. It provides conditioned measurements, alarm processing, buffered transducer outputs, recorder outputs, and rack-level communication to support the wider 3500 protection architecture.
Product Introduction
A four-channel monitor is useful only when the signal-conditioning path matches the machine. The 3500/42-09-R0 provides four configurable monitoring channels for proximity and seismic-type transducer applications, with functions extending from radial vibration and thrust position to eccentricity, differential expansion, acceleration, and velocity.
For a legacy replacement, do not approve the spare from the 3500/42 family number alone. Verify the complete module marking, I/O termination configuration, installed transducers, channel assignments, rack configuration, and required measurement functions.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 3500/42-09-R0 |
| Associated Product | Bently Nevada 3500/42M |
| Manufacturer | Bently Nevada |
| Product Family | 3500 Machinery Protection System |
| Product Type | Proximitor Seismic Monitor |
| Number of Channels | 4 |
| Input Signals | Proximity, velocity, or acceleration transducers |
| Standard I/O Input Impedance | 10 kΩ for Proximitor and acceleration inputs |
| Typical Power Consumption | 7.7 W |
| Proximitor Transducer Supply | -24 VDC |
| Recorder Output | +4 to +20 mA |
| Recorder Load | 0–600 Ω |
| Recorder Resolution | 0.3662 µA/bit |
| Recorder Update Rate | Approximately 100 ms or less |
| Buffered Transducer Outputs | One coaxial output per channel |
| Buffered Output Impedance | 550 Ω |
| Rack | Bently Nevada 3500 |
| Configuration | 3500 Rack Configuration Software |
The published 3500/42M documentation specifies an input capacity of one to four proximity, velocity, or acceleration transducer signals and a typical power consumption of 7.7 W. Standard I/O input impedance is 10 kΩ for Proximitor and acceleration inputs.
Measurement Sensitivity
| Measurement | Documented Sensitivity |
|---|---|
| Radial Vibration | 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil) |
| Thrust | 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil) |
| Eccentricity | 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil) |
| Differential Expansion | 0.394 mV/µm (10 mV/mil) or 0.787 mV/µm (20 mV/mil) |
| REBAM | 40 mV/µm (1000 mV/mil) or 80 mV/µm (2000 mV/mil) |
| Acceleration | 10 mV/(m/s²), equivalent to 100 mV/g |
| Velocity | 20, 5.8, or 4 mV/(mm/s) peak, depending on configuration |
| Shaft Absolute | Multiple radial/direct/velocity sensitivity configurations |
These values are configuration-dependent measurement sensitivities from the 3500/42M technical documentation; they should not be interpreted as proof that every 3500/42-09-R0 installation uses every listed range.
3500/42-09-R0
Major Features / Practical Advantages
Four configurable monitoring channels
The 3500/42M provides four channels that can be configured for several machinery measurements. Supported functions include radial vibration, thrust position, differential expansion, eccentricity, acceleration, velocity, shaft absolute, REBAM, and circular acceptance region.
The channels operate in pairs, which is important during engineering changes. Channels 1–2 can be assigned one function while channels 3–4 are assigned another or the same function. Consequently, a replacement module should be loaded with the correct rack configuration rather than assumed to inherit the desired application merely because it is physically installed.
Machinery protection rather than simple data acquisition
The module continuously compares configured measurements against alarm thresholds and communicates machine information through the 3500 system. Alert levels can be configured for measured static values, while danger setpoints can be applied to selected values.
That distinction is significant in a plant environment. If the module is part of a trip or alarm chain, its configuration becomes part of the machinery-protection function. Replacing hardware without checking the configuration can therefore leave the machine with a technically functioning module but an incorrect protection setup.
Broad transducer compatibility
The 3500/42M accepts proximity, velocity, and acceleration transducer signals. This permits the same monitor family to be used across different machinery-monitoring architectures, although the transducer, sensitivity, signal conditioning, and measurement function must be correctly matched.
For proximity-probe applications, the documented standard I/O impedance is 10 kΩ. The module also provides a -24 VDC transducer supply within the documented architecture.
Programmable signal conditioning
The monitor provides configurable filtering rather than simply passing a raw sensor signal to the control system. Published documentation includes direct, gap, Not 1X, Smax, and 1X/2X vector filtering functions, with the available ranges dependent on the selected measurement.
For example, the documented radial-vibration direct filter can be configured with -3 dB points from 4 Hz to 4000 Hz or 1 Hz to 600 Hz, while the gap filter has a -3 dB point of approximately 0.09 Hz.
4–20 mA recorder outputs
The monitor provides individual +4 to +20 mA recorder outputs for the configured channels. The documented output load range is 0–600 Ω, with 0.3662 µA/bit resolution and an update rate of approximately 100 ms or less.
This provides a conventional analog representation for a DCS, PLC, recorder, or other supervisory system while the 3500 rack retains the dedicated machinery-monitoring functions.
Buffered transducer signals
Each channel provides a buffered transducer output through a front-panel coaxial connector. The documented output impedance is 550 Ω, and the outputs are short-circuit protected.
For commissioning and troubleshooting, this is useful because technicians can access a conditioned signal without disturbing the original transducer wiring.
Measurement accuracy
Published 3500/42M specifications give typical direct and gap measurement accuracy of approximately ±0.33% of full scale, with ±1% maximum for several applicable measurements. Alarm setpoint accuracy is documented within approximately 0.13% of the desired value.
These figures are not a substitute for checking the complete measurement chain. Probe calibration, cable condition, Proximitor behavior, mechanical runout, installation geometry, and selected filtering can all affect the actual machine-monitoring result.
Rack-level diagnostic indication
The front panel includes status indicators for normal operation, rack communications, and bypass status. The published documentation identifies the OK, TX/RX, and Bypass LEDs as direct indications of monitor operating state.
During troubleshooting, these indicators are useful first-level evidence, but they should be interpreted together with the 3500 rack configuration and system diagnostics.
Related Products
- 3500/42M — The standard four-channel Proximitor Seismic Monitor family associated with this part designation. Supports configurable vibration, position, acceleration, velocity, and related measurements.
- 3500/40M — Four-channel monitor used for radial vibration, thrust position, eccentricity, and differential-expansion applications. It is closely related functionally but has a different measurement architecture.
- 3500/45 — Four-channel position monitor for applications such as axial position, differential expansion, case expansion, and valve position.
- 3500/50M — Tachometer monitor for speed and related rotational measurements. It should not be confused with the 3500/42M; the 3500/50M is the appropriate 3500-family tachometer function.
- 3500/25 — Enhanced Keyphasor module used for Keyphasor signal conditioning and distribution within the 3500 architecture.
- 3500/20 — Rack Interface Module providing the interface between the 3500 rack and external systems/configuration infrastructure.
- 3500/32M — Four-channel relay logic module used to implement relay-based alarm/control logic from 3500 monitor conditions.
- 3500/92 — Communication Gateway module for transmitting 3500 system data to external supervisory or plant systems.
- 3500/53M — Overspeed Detection System module intended for dedicated overspeed protection applications; it is not a substitute for the 3500/42M vibration/position monitor.
FAQ
Is 3500/42-09-R0 a vibration monitor?
Yes, in practical terms it belongs to the Bently Nevada 3500/42M Proximitor Seismic Monitor family. Its supported measurements include radial vibration, thrust position, eccentricity, differential expansion, acceleration, velocity, and shaft absolute measurements, depending on configuration.
How many channels does the 3500/42M provide?
It provides four monitoring channels. The channels are configured in pairs, allowing two different measurement functions or the same function to be assigned across the two channel pairs.
Can it measure shaft speed?
Not as its primary tachometer function. The 3500/42M can process velocity-related vibration measurements, but it should not be confused with the dedicated 3500/50M Tachometer Module used for rotational-speed monitoring.
Can I hot-swap the 3500/42-09-R0?
Do not assume unrestricted hot swapping. Removing a machinery-protection monitor can place its associated measurement channels into an unavailable or bypass condition. Follow the approved Bently Nevada maintenance procedure and the plant’s machinery-protection bypass/permit procedure before removing the module.
Does 3500/42-09-R0 support firmware v3.1?
The exact R0 suffix in the supplied designation should not be automatically interpreted as firmware version 0 or as firmware v3.1. Public technical documentation identifies the 3500/42M as a configurable monitor whose functions and compatibility depend on the 3500 rack software and hardware generation. Verify the actual module revision and installed configuration before a firmware-related replacement.
What transducers can be connected?
The 3500/42M documentation specifies compatibility with proximity, velocity, and acceleration transducer signals. The exact transducer and sensitivity must match the selected measurement function.
Does it provide a 4–20 mA signal?
Yes. The documented recorder output is +4 to +20 mA, with an output for each channel. The specified load range is 0–600 Ω.
What does the -09-R0 suffix mean?
This is where procurement caution is necessary. The underlying hardware is identifiable as the 3500/42M Proximitor Seismic Monitor, but I could not verify a primary Bently Nevada source that publishes -09-R0 as a complete standalone ordering-code breakdown. A current secondary listing claims that 09 and R0 identify specific configuration/revision information, but that interpretation should not be treated as manufacturer-confirmed.
For purchasing, retain the exact marking 3500/42-09-R0 and request a nameplate photograph rather than converting the code into an assumed firmware or hardware option.
Is the 3500/42M the same as a 3500/50M?
No. The functions are different. The 3500/42M is a Proximitor Seismic Monitor for vibration, position, acceleration, velocity, and related machinery parameters. The 3500/50M is the tachometer monitor used for speed-related monitoring.
Can this module be used for an overspeed trip?
The 3500/42M should not be selected simply because the application involves rotating speed. Dedicated overspeed protection uses a different 3500 architecture. The 3500/42M’s primary purpose is configurable vibration and machinery-condition monitoring.
Procurement Note
For a 3500/42-09-R0 replacement, record the complete module marking, hardware revision, 3500 rack configuration, I/O termination type, transducer models, channel assignments, measurement ranges, filtering, and alarm settings.
The most important engineering point is that 3500/42M is configurable hardware. Two modules carrying the same family designation can be installed in machines with substantially different measurement functions. The four channels may be assigned to radial vibration, thrust, eccentricity, differential expansion, acceleration, velocity, shaft absolute, or other supported functions.
For refurbished or new-surplus procurement, request clear photographs of the front label and rear/I/O identification, along with hardware revision and functional-test evidence. If the module is part of an active machinery-protection loop, verify the existing configuration before commissioning the replacement.
One final caution: do not treat 3500/42-09-R0 as proof of a particular firmware revision, SIL certification, termination option, or sensor configuration unless that information is confirmed from the actual nameplate and applicable Bently Nevada documentation. Some current commercial listings assign meanings to the suffix that are not established by the primary 3500/42M datasheet.
