Bently Nevada 3500/15 127610-01 | Machinery Protection System Power Supply Replacement Module

Description

Key Technical Specifications

Product Introduction

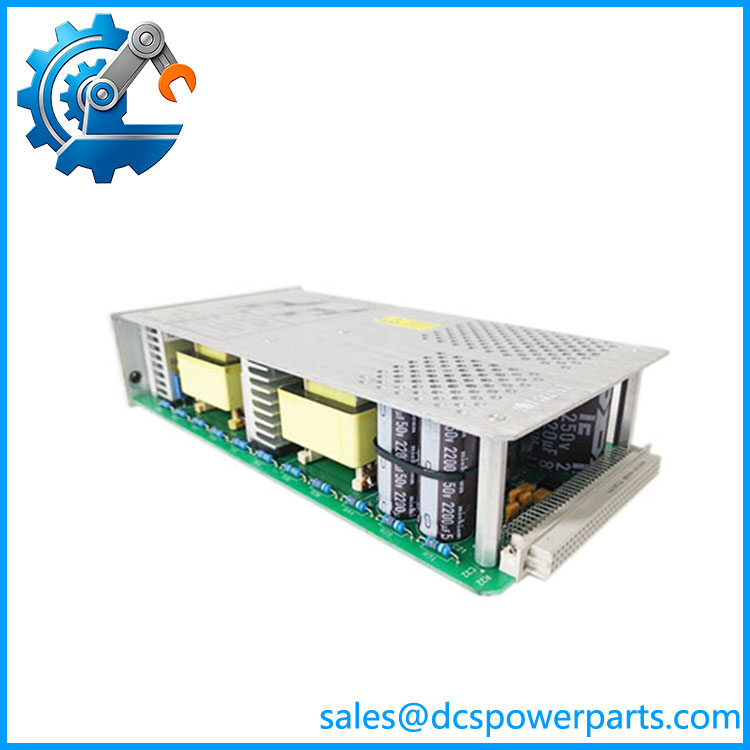

Bently Nevada 3500/15 127610-01 Overview

The Bently Nevada 3500/15 127610-01 is an AC power supply module designed for the 3500 Machinery Protection System rack. It converts plant AC power into regulated internal DC power required by monitoring modules, communication modules, and relay modules installed in the 3500 chassis.

The Bently Nevada 3500/15 127610-01 is commonly found in turbine, compressor, and rotating equipment monitoring applications. Its main value is maintaining stable rack operation during continuous machinery monitoring. Replacement requires checking the installed Power Input Module (PIM), rack configuration, and power supply revision before installation.

127610-01

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A critical compressor monitoring rack suddenly loses communication with vibration monitoring modules. The sensors are healthy, field wiring checks out, but the protection system is offline.

Power supply faults are often overlooked. In a 3500 rack, the 3500/15 127610-01 supplies the operating voltage for every installed monitoring module. A weak supply, degraded internal components, or an incorrect rear power input module can create system-wide symptoms.

This module is not a measurement device. It is the foundation that keeps the protection rack alive.

Typical Applications

• Power Generation Plants – Turbine vibration monitoring racks, overspeed protection systems, and machinery condition monitoring.
• Oil & Gas Facilities – Compressor trains, gas turbines, and critical rotating equipment protection.
• Petrochemical Plants – Pumps, expanders, and process machinery monitoring applications.
• Industrial Manufacturing – High-value rotating machinery requiring continuous vibration and position monitoring.

Technical Pitfalls to Avoid

1. Verify Rear Power Input Module Compatibility

   The 127610-01 must be matched with the correct AC Power Input Module. Mixing legacy supply modules with incompatible PIM hardware can prevent startup or cause incorrect operation.

2. Check Existing Rack Power Configuration

   A 3500 rack may use one or two power supplies. When replacing a module in a redundant configuration, confirm primary and backup positions before removal.

3. Do Not Ignore Input Voltage Selection

   Older 3500/15 configurations may separate low-voltage and high-voltage AC versions. Verify the installed configuration instead of assuming every 127610-01 setup is identical.

Related Products

• Bently Nevada 3500/15 106M1079-01
  Universal AC power supply replacement family for newer 3500 system configurations. Used when migrating from legacy AC supply arrangements.
• Bently Nevada 3500/15 129486-01
  High voltage DC power supply variant for installations using DC plant power sources. Suitable for different electrical supply environments.
• Bently Nevada 3500/15 133292-01
  Low voltage DC power supply variant designed for 20–30VDC input applications.
• Bently Nevada 125840-01
  High voltage AC Power Input Module (PIM) used with specific legacy 3500/15 AC power supply configurations.
• Bently Nevada 125840-02
  Low voltage AC Power Input Module used with legacy low-voltage AC supply configurations.
• Bently Nevada 3500/22M 138607-01
  Transient Data Interface Module used for communication and data collection within the 3500 rack.
• Bently Nevada 3500/42M 140482-01
  Proximity monitoring module used for vibration and position measurement applications.
• Bently Nevada 3500/94 145988-01
  Display interface module used for local monitoring and operator information.
• Bently Nevada 3500 Rack System
  Modular machinery protection platform supporting vibration, position, speed, and condition monitoring modules.
