Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 3500/05-01-03-00-00-01 |
| Manufacturer | Bently Nevada |
| Product Type | 3500 System Rack Assembly |
| Series | 3500 Machinery Protection System |
| Rack Size | Standard 19-inch rack |
| Rack Slots | 14-module configuration |
| Backplane Type | 3500 Series communication and power backplane |
| Module Compatibility | 3500 monitoring modules, power supplies, communication modules |
| Mounting | Panel/rack mounting |
| Front Access | Module installation and status viewing |
| Rear Access | Field wiring and system connections |
| Application | Machinery condition monitoring and protection systems |
| Typical Use | Turbomachinery, compressors, pumps, generators |
Application Scenarios & Pain Points
A rotating equipment trip can cost more than the failed component itself. In many plants, the challenge is not finding a replacement card—it is maintaining the original 3500 rack architecture so every monitor, relay, and communication channel continues operating as expected.
Typical applications:
- Refineries: Used as the chassis platform for vibration, shaft position, and overspeed monitoring systems protecting critical compressors and rotating equipment.
- Power Plants: Installed in turbine monitoring cabinets where multiple 3500 modules share common rack power and communication infrastructure.
- Petrochemical Facilities: Supports continuous machinery protection systems for pumps, expanders, and large process drives.
- Industrial Manufacturing: Used where older 3500 installations remain in service and replacement parts are required to maintain existing protection logic.
Field note: A compressor station experienced repeated communication interruptions after maintenance work on an aging rack. The monitoring cards tested correctly, but the rack backplane connection had degraded over years of service. Replacing the rack assembly restored stable module communication without changing the protection configuration.

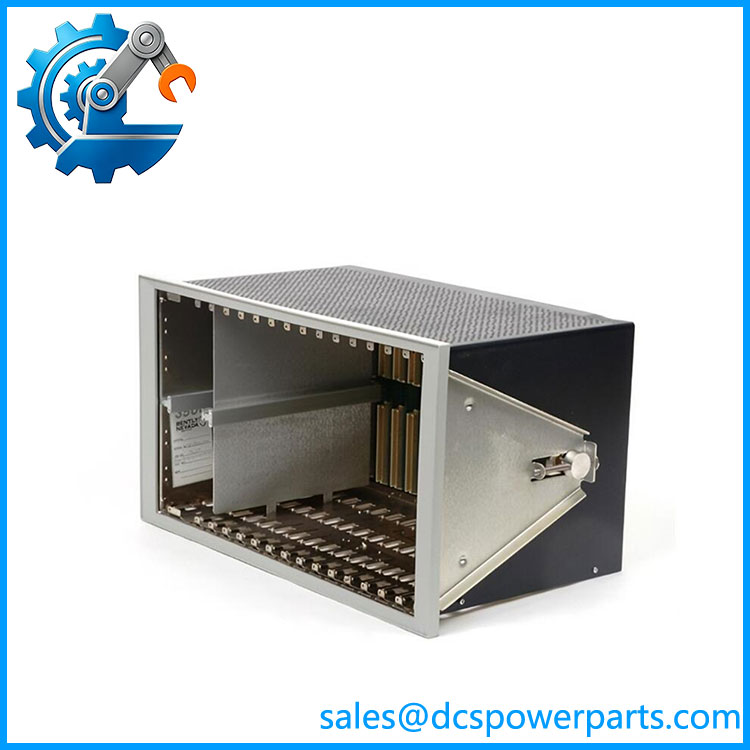

350005-01-03-00-00-01
Related Products
- Bently Nevada 3500/05 — Standard 3500 rack assembly family. Used as the main chassis platform for 3500 monitoring systems.
- Bently Nevada 3500/15 — AC/DC power supply module installed within the 3500 rack. Provides system power distribution for monitoring modules.
- Bently Nevada 3500/20 — Rack interface module. Provides system configuration, communication management, and rack-level diagnostics.
- Bently Nevada 3500/22M — Transient data interface module. Adds high-speed data capture capability for vibration analysis applications.
- Bently Nevada 3500/32 — 4-channel relay module. Used when alarm and shutdown outputs are required.
- Bently Nevada 3500/42M — Proximity monitor module. Used for vibration, position, and velocity measurement applications.
- Bently Nevada 3500/50 — Tachometer module. Designed for speed measurement and overspeed monitoring.
- Bently Nevada 3500/92 — Communication gateway module. Provides system integration with plant monitoring networks.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Rack Configuration Mismatch
Not every 3500/05 rack variant is interchangeable. Rack size, power arrangement, and option codes determine module compatibility.
How to avoid: Confirm the complete rack part number before replacement and compare the existing module layout slot-by-slot.
⚠️ Backplane Damage During Installation
The rack backplane contains sensitive connectors. Bent pins or contamination can create intermittent faults that are difficult to diagnose.
How to avoid: Inspect connectors under proper lighting and check for oxidation, debris, or damaged contacts before inserting modules.
⚠️ Mixing Incompatible 3500 Hardware Revisions
Older racks combined with newer modules may require firmware or configuration checks.
How to avoid: Record module revisions, system software versions, and configuration files before removing the existing rack.
Frequently Asked Questions (FAQ)
Can I replace my existing 3500/05 rack directly with 3500/05-01-03-00-00-01?
A direct replacement is possible when the existing rack uses the same mechanical and electrical configuration. Engineers should confirm rack size, power supply arrangement, and installed module requirements before installation.
What modules can be installed in this rack assembly?
The rack supports compatible Bently Nevada 3500 Series modules, including monitoring cards, communication modules, relay modules, and power supplies. The exact module arrangement depends on the protection system design.
Does replacing the rack require changing the monitoring configuration?
Normally, no. The rack itself does not contain the measurement logic. However, incorrect slot arrangement or interface connections can prevent the existing configuration from operating correctly.
What should be checked before purchasing a replacement rack?
Recommended checks:
- Complete model number
- Rack size and slot count
- Existing power supply type
- Installed module positions
- Backplane condition
- System configuration records
Why would a healthy monitor module fail after moving to another rack?
The issue may come from the rack backplane, slot connection, grounding, or configuration mismatch. A module passing bench tests does not guarantee correct operation in a different chassis.
Is a refurbished 3500/05-01-03-00-00-01 suitable for critical machinery protection?
Yes, when the unit has been properly inspected and tested. Important checks include connector condition, backplane continuity, mechanical integrity, and communication verification.
How should plants store this rack as a spare?
Store it in a clean, dry environment with anti-static protection. Avoid open storage near chemical vapors or high humidity areas, as connector surfaces can degrade over time.
