Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 1900/65A-01-01-03-00-01 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Type | General Purpose Equipment Monitor |
| Series | 1900/65A |
| Power Option | 110–220 VAC external supply option |
| Display Option | Attached display |
| Mounting Option | Fiberglass NEMA 4X/IP66 weatherproof housing with window |
| Communication Option | Modbus communication |
| Input Channels | 4 transducer inputs + 4 temperature inputs |
| Vibration Inputs | Acceleration, velocity, radial vibration, thrust, position, speed |
| Temperature Inputs | Type E/J/K/T thermocouples and RTDs |
| ADC Resolution | 24-bit |
| Relay Outputs | 6 programmable relays |
| Analog Outputs | 4 configurable 4–20 mA recorder outputs |
| Buffered Outputs | Individual buffered transducer outputs |
| Operating Voltage | 18–36 VDC |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +90°C |
| Protection Rating | NEMA 4X/IP66 housing option |
| Mounting | Panel / bulkhead / DIN rail options |
Product Introduction

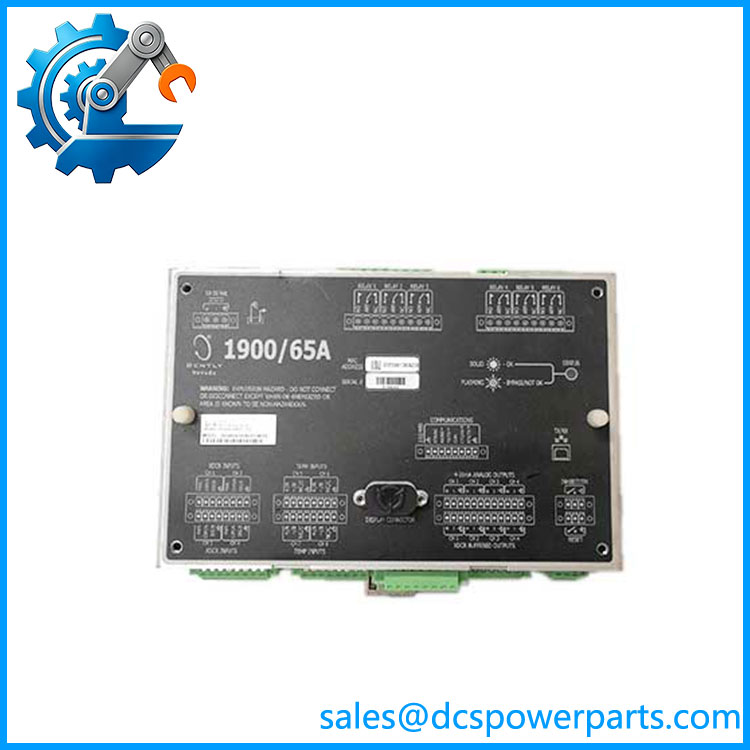

Bently Nevada 1900/65A-01-01-03-00-01 Product Introduction
Bently Nevada 1900/65A-01-01-03-00-01 is a general-purpose machinery monitoring device designed for continuous condition monitoring of rotating equipment. It collects vibration, shaft position, speed, and temperature signals from field sensors, processes measurement data, and provides alarm and protection functions for industrial assets.
The main value of Bently Nevada 1900/65A-01-01-03-00-01 is providing a standalone monitoring solution for machines that do not require a full rack-based protection platform. It supports configurable channels, relay outputs, recorder outputs, and industrial communication options, making it suitable for pumps, motors, compressors, and other rotating equipment. Verify sensor compatibility, configuration files, and alarm settings before commissioning.
1900/65A-01-01-03-00-01
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A centrifugal pump starts showing abnormal vibration during operation. Production cannot stop immediately, but running the machine without reliable vibration data creates a larger risk. This is where standalone machinery monitors are often installed — providing local protection and condition data without requiring a complete plant-wide monitoring rack.
The challenge is configuration accuracy. The monitor itself may be healthy, but incorrect sensor selection, scaling, or alarm limits can result in misleading readings.
Typical Applications
- Oil & Gas Facilities – Monitoring pumps, compressors, and auxiliary rotating equipment for vibration and mechanical condition changes.
- Power Generation – Turbine auxiliary systems, motors, cooling pumps, and balance-of-plant machinery monitoring.
- Chemical Processing – Continuous monitoring of process pumps, agitators, and rotating machinery exposed to demanding operating conditions.
- Water Treatment Plants – Protection monitoring for large motors, pumps, and rotating equipment.
Technical Pitfalls to Avoid
- Verify Sensor Compatibility Before Replacement
The 1900/65A supports multiple transducer types, including accelerometers, velocity sensors, and proximity systems. Confirm sensor type, bias voltage, scaling, and channel configuration before installation. - Do Not Transfer Alarm Settings Without Validation
Alert and Danger levels are application-specific. Copying configuration files from another machine can create incorrect protection thresholds. - Check Communication and Wiring Configuration
Modbus communication, relay outputs, and analog outputs depend on correct terminal wiring and software configuration. Verify field connections before replacing the monitor.
