Bently Nevada 172103-01
Product Introduction
Temperature faults on rotating equipment rarely give maintenance teams much room for trial and error. Bently Nevada 172103-01 is the I/O module used with the 3500/65 16-channel temperature monitoring system, accepting RTD and isolated-tip thermocouple signals for temperature measurement and alarm processing. It uses internal terminations and is installed behind the associated 3500/65 monitor in the 3500 rack.
The important procurement distinction is between the internal-termination and external-termination versions. 172103-01 corresponds to I/O option 01, while 172109-01 is the external-termination version. The 3500/65 system can be configured for isolated-tip thermocouples, 3-wire RTDs, 4-wire RTDs, or combinations of RTD and TC inputs, although 4-wire RTD applications require the specified modification.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Product Model | 172103-01 |
| Series | 3500 |
| Associated Monitor | 3500/65 Temperature Monitor |
| Main Monitor P/N | 145988-02 |
| Product Type | RTD / Isolated Tip TC I/O Module |
| I/O Configuration | Internal terminations |
| Temperature Channels | 16 |
| Supported Inputs | RTD and isolated-tip thermocouple |
| RTD Configuration | 3-wire; 4-wire with specified modification |
| Installation Position | Rear side of associated 3500/65 monitor |
| Rack Requirement | 1 full-height rear slot |
| Internal Connector | 20-position connector header |
| External Termination Compatibility | Not applicable; internal-termination module should not be paired with external termination blocks |
| Dimensions | 241.3 × 24.4 × 99.1 mm |
| Weight | Approximately 0.45 kg |
| Related External-Termination I/O | 172109-01 |
The internal-termination configuration is documented specifically as 3500/65-AA-BB, option 01. The manufacturer’s documentation also states that external termination blocks cannot be used with internal-termination I/O modules.
Major Features / Advantages
16-Channel Temperature Acquisition
The 172103-01 supports the 3500/65’s 16-channel temperature monitoring architecture. The monitor receives temperature signals from RTDs or isolated-tip thermocouples, conditions the measurements, and evaluates them against programmable alarm setpoints. This makes the module appropriate for high-density temperature measurement in machinery-monitoring applications.

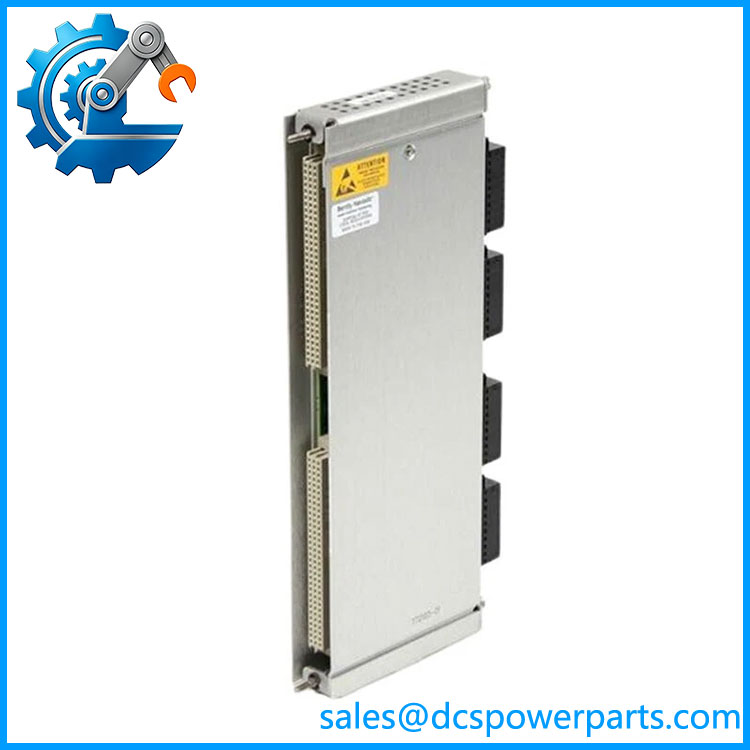

172103-01
RTD and Thermocouple Flexibility
The associated 3500/65 monitor can be configured for isolated-tip thermocouples, 3-wire RTDs, 4-wire RTDs, or combinations of RTD and TC inputs. This flexibility is useful where a machinery package contains different temperature sensor types—for example, bearing metal temperature and other process or equipment temperatures within the same monitoring rack.
There is one important qualification: the manufacturer documentation specifies a particular modification for 4-wire RTD applications. Do not assume that every 172103-01 installation automatically supports a 4-wire RTD arrangement without checking the monitor configuration and applicable documentation.
Internal Termination Architecture
The 172103-01 is specifically the internal-termination I/O variant. This differentiates it from 172109-01, which is the external-termination version. The distinction is not cosmetic. The termination arrangement determines how field wiring is brought into the 3500 rack, so substituting one I/O version for the other can create a wiring and installation problem even when both are associated with the same 3500/65 monitor.
Direct Association with the 3500/65 Monitor
The I/O module works with the 3500/65 monitor rather than functioning as a standalone temperature controller. The documented main monitor is 145988-02, and the 172103-01 is installed behind its associated monitor in the 3500 rack.
Practical Spare for Legacy Machinery Protection Systems
For maintenance teams supporting existing 3500 installations, the 172103-01 is a clearly defined spare because the complete part number specifies the I/O configuration. Recording the full number prevents a common purchasing error: ordering a 172109-01 external-termination module when the existing rack requires the 172103-01 internal-termination arrangement.
The module should be purchased according to the installed rack configuration, sensor wiring, monitor revision, and required certification—not simply because the description says “3500/65 temperature module.”
Application Scenarios & Pain Points
Bearing Temperature Monitoring
The 3500/65 architecture is intended for temperature monitoring on machinery. RTD and thermocouple inputs can be used for bearing and other equipment temperature measurements, with the monitor comparing conditioned signals against programmable alarm setpoints.
Turbine and Compressor Packages
In turbine, compressor, pump, and other rotating-equipment packages, multiple temperature points may be brought into a single 3500 rack. The 16-channel architecture allows the associated monitor to handle a relatively high number of temperature measurements within one monitoring position.
Existing 3500 Rack Maintenance
When replacing a failed I/O module, verify that the installed system uses the internal-termination configuration. 172103-01 and 172109-01 are not simply two interchangeable ordering numbers; they represent different termination arrangements.
Planned Shutdown Spares
For an outage-critical spare, record both the I/O module number and the associated monitor number. A practical procurement record should identify 172103-01 + 3500/65 + 145988-02, along with the actual board revision and certification marking where applicable.
Related Products
- 145988-02 — 3500/65 16-channel temperature monitor main module associated with the 172103-01 I/O module.
- 172109-01 — 3500/65 RTD/isolated-tip TC I/O module with external terminations; functionally related but termination architecture differs.
- 172115-01 — external RTD/isolated-tip TC termination block for the external-termination configuration.
- 173005 — 20-position connector header for internal termination.
- 172931-01 — 3500/65 user documentation reference.
- 134544 series — transducer signal cables used with the external termination arrangement.
Engineer’s Guide: Field Pitfalls to Avoid
1. Do not confuse 172103-01 with 172109-01.
Both belong to the 3500/65 temperature-monitoring architecture, but 172103-01 uses internal terminations while 172109-01 is designed for external terminations.
2. Confirm the main monitor.
The 172103-01 is associated with the 3500/65 monitor, commonly identified as 145988-02. Verify the actual installed monitor and rack configuration before ordering.
3. Check the sensor wiring before replacement.
Determine whether the field sensors are RTDs, isolated-tip thermocouples, or a combination. Also verify whether the installation uses 3-wire or 4-wire RTDs.
4. Treat 4-wire RTD support carefully.
The manufacturer documentation specifies a required modification for 4-wire RTD applications. Do not infer 4-wire capability from the basic 172103-01 part number alone.
5. Do not install an external termination block on an internal-termination module.
The manufacturer’s documentation explicitly states that external termination blocks cannot be used with internal-termination I/O modules.
6. Verify the actual board revision.
Legacy 3500 equipment may contain hardware at different revision levels. Record the revision and certification markings from the physical module rather than relying only on a reseller description.
7. Do not confuse the I/O module with the temperature monitor.
172103-01 is the I/O module; 145988-02 is the associated 3500/65 monitor. They perform different functions and should be specified separately in a spare-parts list.
FAQ
What is Bently Nevada 172103-01?
Bently Nevada 172103-01 is the 3500/65 RTD/Isolated Tip Thermocouple I/O Module with internal terminations. It belongs to the Bently Nevada 3500 Machinery Protection System and works with the 3500/65 temperature monitor.
How many temperature channels does 172103-01 support?
The associated 3500/65 temperature monitor provides 16 temperature channels. Inputs can be configured for RTDs, isolated-tip thermocouples, or combinations of the two, subject to the applicable configuration requirements.
What is the difference between 172103-01 and 172109-01?
The key difference is termination. 172103-01 uses internal terminations, while 172109-01 uses external terminations. The two should therefore be matched to the actual field-wiring and rack configuration rather than treated as generic alternatives.
Which main module is used with 172103-01?
The documented associated monitor is the Bently Nevada 3500/65 Temperature Monitor, P/N 145988-02. The 172103-01 is installed behind its associated main monitor in the 3500 rack.
Can 172103-01 handle both RTD and thermocouple inputs?
Yes. The 3500/65 architecture supports resistance temperature detectors and isolated-tip thermocouples. The monitor can also be configured for 3-wire RTDs, 4-wire RTDs, or combinations, with the manufacturer’s specified modification required for 4-wire RTD applications.
Is 172103-01 a standalone temperature monitor?
No. It is the I/O module associated with the 3500/65 temperature monitor. The main monitoring function is performed by the 3500/65 monitor, while 172103-01 provides the corresponding field I/O interface.
What should procurement verify before buying a replacement?
Verify the complete 172103-01 part number, internal-termination configuration, associated 3500/65 monitor, field sensor types, wiring arrangement, board revision, certification markings, and actual inventory condition. For a used or surplus module, request clear photographs of the identification label and connector area before accepting it as a replacement.
