Description

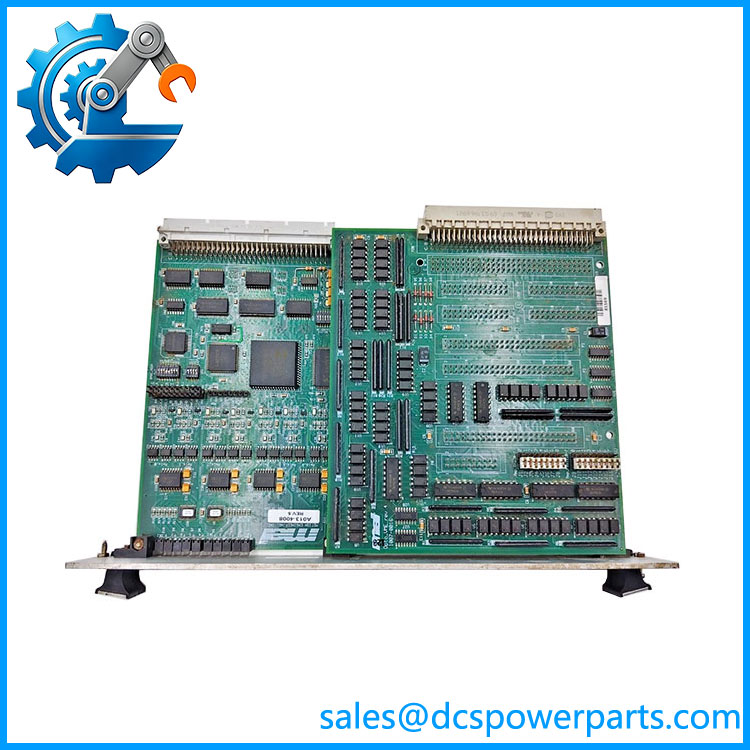

AMAT 0190-14502 V6U/DSP MEI Motion Controller
Product Overview
The AMAT 0190-14502 is a VME-format motion controller board associated with Motion Engineering, Inc. (MEI) V6U/DSP motion-control technology and Applied Materials semiconductor manufacturing equipment. Available equipment records consistently identify the part as a VME Motion Controller, while repair and sourcing references identify the MEI architecture as V6U/DSP. The board belongs to the embedded control hardware used inside specialized semiconductor tools rather than a conventional plant-floor PLC rack. Its job is centered on coordinating precision motion functions within the equipment, where deterministic command execution and feedback processing are more important than general-purpose PLC I/O capacity.
The AMAT 0190-14502 is particularly relevant when maintaining legacy Applied Materials equipment whose original motion-control architecture depends on VME-based electronics. The MEI V6U/DSP designation indicates a dedicated motion-control platform intended for servo and multi-axis applications. In a semiconductor tool, such a controller can form part of the control chain between higher-level equipment software and mechanical subsystems such as positioning mechanisms, wafer-handling assemblies, or precision stages. The exact axes, feedback devices, amplifier interfaces, and machine functions depend on the host-tool configuration, so the part number alone should not be treated as proof of universal interchangeability.
From a procurement standpoint, AMAT 0190-14502 should be purchased against the complete equipment configuration, board revision, and installed software environment. Current sourcing references describe the item as a legacy VME motion controller and also associate it with MEI part identifiers, making revision control important when replacing an installed board.
Technical Specifications
| Parameter | Details |
|---|---|
| OEM Part Number | 0190-14502 |
| OEM | Applied Materials |
| Board Technology | MEI V6U/DSP |
| Controller Type | Motion Controller |
| Bus Architecture | VME |
| Board Format | VME plug-in PCB |
| Control Function | Multi-axis / servo motion control |
| Processor Technology | Dedicated DSP-based MEI motion-control architecture |
| Typical Equipment Area | Semiconductor equipment motion systems |
| Application | Wafer handling, positioning and equipment motion functions |
| Software Dependency | Tool-specific motion-control software/configuration |
| Replacement Status | Legacy / service-maintenance component |
| Service Consideration | Board revision and configuration should be verified before substitution |
Note: Publicly available sources do not provide a sufficiently reliable OEM datasheet for parameters such as exact supply rails, axis count, encoder interface count, or connector pin assignments. Those values should not be fabricated from generic VME or MEI specifications.
0190-14502
Main Features and Advantages
The primary advantage of the AMAT 0190-14502 is its role as a dedicated motion-control element within an established VME-based semiconductor equipment architecture. Unlike a general-purpose digital I/O board, its purpose is to execute motion-related control functions using the MEI V6U/DSP platform. This distinction matters during troubleshooting because a failure can affect positioning, transfer mechanisms, or servo sequencing even when the machine’s general control computer and I/O electronics remain operational.
The VME implementation is another important characteristic. A replacement board must physically and electrically match the host VME system, but that is only the first compatibility check. The board revision, MEI configuration, firmware, motion parameters, feedback hardware, and host application can all influence whether a replacement will operate correctly. A board with the same 0190-14502 part number but a different revision should therefore be compared against the installed unit before installation.
Maintenance teams should also avoid treating this part as an interchangeable industrial motion card simply because it uses a standardized VME form factor. Applied Materials equipment often contains highly specific control configurations, and the same controller family can be integrated differently depending on the tool generation and process configuration. Existing cable assemblies, feedback interfaces, servo amplifiers, and machine software should be documented before removing the original board.
For procurement, the most useful inspection points are the complete part-number marking, PCB revision, connector condition, signs of component replacement, corrosion, and evidence of previous repair work. Because this is legacy semiconductor equipment hardware, availability may be concentrated in used, tested, or professionally refurbished inventory. A supplier should be able to state whether the board was electrically tested, repaired, or simply removed from equipment. One industry repair catalog specifically lists 0190-14502 as an MEI V6U/DSP part, while semiconductor-equipment service references identify it as a VME motion-controller board.
Application Scenarios
- Semiconductor wafer-handling equipment
- Precision positioning mechanisms
- Servo-controlled equipment axes
- Legacy Applied Materials VME control architectures
- Semiconductor equipment refurbishment
- Replacement of failed MEI V6U/DSP motion-control boards
- Preventive spare-stock programs for legacy production tools
Engineering Procurement Note
0190-14502 should be matched by complete hardware identity, not by physical appearance alone. Before ordering, verify the installed board’s revision, MEI V6U/DSP configuration, host Applied Materials tool, VME slot/application, and connected motion hardware. Public sources agree on the VME/MEI motion-controller classification, but they do not provide enough authoritative information to establish every electrical and firmware parameter for every revision.
