Description
Product Overview

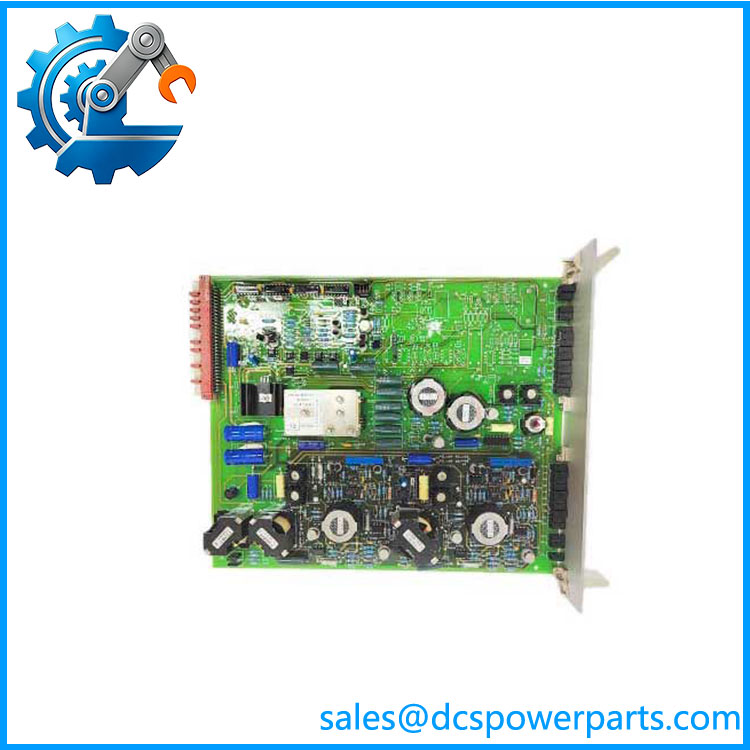

The ALSTOM N897092520B N897092057Y TRENO N897092500E is a legacy ALSTOM railway control assembly associated with the TRENO designation. Multiple product indexes group N897092520B, N897092057Y, TRENO, and N897092500E together as one product identification. The available evidence supports treating it as railway-specific control hardware rather than a conventional industrial PLC or generic automation I/O card.
The ALSTOM N897092520B is associated with onboard railway control applications in which deterministic monitoring, command processing, and communication with other vehicle subsystems are required. A secondary technical listing describes the group as train-control/TCMS-related hardware and reports interfaces such as MVB and Ethernet; another listing gives a much broader description involving train automation, signaling, and power management. Those descriptions establish the railway-control context, but they do not provide enough evidence to assign every listed interface or function to every board revision.
The ALSTOM N897092057Y and N897092500E should therefore be retained as associated identification numbers when sourcing a spare. The suffixes may correspond to board revision, assembly level, or configuration variant. A supplier listing explicitly notes that the B/Y/E suffixes can represent revision or variant information. For fleet maintenance, matching the complete part-number chain and installed vehicle configuration is much safer than selecting a replacement based only on the generic TRENO designation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ALSTOM |
| Primary Part Number | N897092520B |
| Associated Part Number | N897092057Y |
| Product Designation | TRENO |
| Additional Assembly Number | N897092500E |
| Product Type | Railway Control / Train Control Module |
| Application | Rolling-stock control and monitoring |
| System | Railway onboard electronics / TCMS-related architecture |
| Processing | Embedded control processing; exact CPU not confirmed |
| Communication | Vehicle/system dependent |
| MVB | Reported by secondary sources; verify exact variant |
| Ethernet | Reported by secondary sources; verify exact variant |
| I/O | Application and vehicle dependent |
| Supply Voltage | Vehicle-specific; conflicting secondary specifications |
| Operating Temperature | -25°C to +70°C reported by one source; verify project rating |
| Dimensions | Approx. 220–260 mm card depth reported for related variants |
| Protection | Rack/enclosure dependent |
| Firmware | Vehicle/application dependent |
| Installation | Plug-in rack/module architecture |
| Condition | New Surplus, subject to inspection and functional testing |
A secondary listing reports 24 VDC nominal for this product family, while another claims 74 VDC ±20% or 110 VDC ±15% vehicle supplies. This is a significant contradiction, so neither value should be treated as a guaranteed specification for N897092520B without the applicable vehicle documentation.
Likewise, claims for two 10/100 Mbps Ethernet ports and an MVB interface appear in secondary material, but the exact mapping to versus the associated N897092057Y/N897092500E assemblies is not established.
N897092520B
Main Features and Advantages
Railway-Specific Hardware
The is associated specifically with railway control equipment, making it appropriate for maintenance of legacy ALSTOM rolling-stock systems where a standard industrial PLC replacement would not be an acceptable substitute.
Multiple Hardware Identifiers
The combination / N897092057Y / TRENO / N897092500E is important for configuration control. Product indexes consistently group these identifiers together. When purchasing a spare, provide the complete identification rather than only “TRENO.”
Vehicle Communication
Secondary sources associate the TRENO family with railway communication systems and report MVB and Ethernet interfaces. These interfaces are useful for exchanging commands, status information, diagnostics, and other vehicle data, but the exact implementation must be verified against the installed vehicle.
Application-Specific Configuration
The module should be regarded as part of a defined railway control architecture. Configuration data, firmware, I/O assignments, and communication parameters can be tied to the vehicle program. A mechanically compatible board is therefore not necessarily a functionally equivalent board.
Field Replacement Considerations
For maintenance, compare:
- Full part-number chain
- PCB revision
- Vehicle type
- Rack position
- Connector layout
- Firmware version
- MVB configuration
- Ethernet configuration
- I/O mapping
- Vehicle supply voltage
- Diagnostic behavior
Supply-Chain Practicality
Because this is legacy railway hardware, testing evidence is more valuable than a generic “tested” claim. A useful spare should be inspected for connector wear, oxidation, storage damage, PCB contamination, and component degradation, followed by controlled power-up and communication testing where the appropriate test platform is available.
Related Products
- ALSTOM N897093511D / N897093051D / DIAGNOSTICA / N897093400H — Diagnostic and data-analysis hardware. It is related to system monitoring but has a different primary function.
- ALSTOM N895609510K / N895609010R / E32OUT / N895609100P — Digital output module. It handles discrete output functions rather than the broader TRENO control role.
- ALSTOM N895600512D / N895600051C / ECPU_1 / N895600200Q — Central processing hardware in the associated ALSTOM product group. It should not be assumed interchangeable with TRENO.
- ALSTOM N897066510E / N897066010M / AOVD / N897066000A — Analog-output module. Its function is analog field output rather than railway control processing.
- ALSTOM N897163510Q / N897163050Q / MODEM / N897163100U — Communication/modem hardware from the same broader legacy ALSTOM product group.
- ALSTOM NRD108034 / 8RDB44674G01 / SA44674.C — Another ALSTOM legacy control/interface module. Different hardware identification means substitution requires system-level verification.
Frequently Asked Questions
1. What is ALSTOM used for?
It is associated with ALSTOM TRENO railway control hardware, used in onboard train-control and monitoring applications.
2. Are , , and the same part?
They are consistently grouped together in product listings, but they should not automatically be assumed to be identical interchangeable boards. They may identify different assembly levels, revisions, or variants.
For purchasing, quote all identifiers exactly as shown on the installed unit.
3. Is TRENO a PLC?
Not in the conventional plant-automation sense. The available evidence points to railway onboard control hardware, associated with train automation/TCMS-type applications.
4. Does use MVB?
MVB is reported as an interface for the broader product group, but public information does not clearly establish whether every interface belongs to itself or to an associated TRENO assembly.
Verify the exact connector and communication specification from the vehicle wiring documentation.
5. What supply voltage does it require?
Do not rely on generic online listings.
Published secondary specifications conflict between 24 VDC and higher railway vehicle supply ranges such as 74 VDC or 110 VDC. The correct value depends on the exact vehicle and hardware configuration.
6. Can I replace it with another TRENO module?
Only after confirming:
- Full part number
- Hardware revision
- Vehicle/platform type
- Firmware
- Rack position
- Connector configuration
- MVB/Ethernet configuration
- Application software
- Vehicle supply voltage
The word TRENO alone is not a sufficient replacement criterion.
7. How should a replacement be tested?
At minimum:
- Verify the complete nameplate identification.
- Inspect PCB and connectors.
- Check hardware revision.
- Verify vehicle/platform compatibility.
- Confirm supply-voltage requirements.
- Perform controlled power-up.
- Check diagnostic indicators.
- Verify communication with the applicable vehicle test system.
- Confirm expected I/O/status exchange.
- Compare firmware/configuration with the removed unit.
Procurement judgment: The strongest available evidence identifies / / TRENO / as an ALSTOM railway control-module group. The detailed electrical and interface specifications published online are inconsistent, so I would not use the commonly quoted voltage, channel count, Ethernet configuration, or processor specifications as guaranteed procurement data. For a fleet-critical spare, the complete ALSTOM identification, vehicle application, hardware revision, and functional test record should be the acceptance criteria.
