Alstom BIO232 029.209 132 Digital Input/Output Module
Product Introduction
When maintaining a legacy Alstom control cabinet, the problem is rarely finding a board that looks similar. The real issue is matching the exact hardware identification, revision, signal count, and electrical interface. Alstom BIO232 029.209 132 is identified as a digital input/output module with 16 digital inputs and 16 digital outputs. Available technical listings identify the exact assembly as Revision 07.
The Alstom BIO232 029.209 132 is specified for digital signal handling, with an input range reported as 24–60 VDC and a 24 VDC output specification. Because the available public documentation is largely secondary rather than an original Alstom engineering manual, channel-level electrical characteristics, isolation details, output current ratings, and environmental limits should be confirmed against the equipment documentation before a field replacement.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | BIO232 / BIO 232 |
| Part Number | 029.209 132 |
| Manufacturer | Alstom |
| Product Type | Digital Input/Output Module |
| Revision | 07 |
| Digital Inputs | 16 |
| Digital Outputs | 16 |
| Input Voltage Range | 24–60 VDC |
| Output Voltage | 24 VDC |
| Application | Industrial automation / Alstom control equipment |
| Hardware Category | Digital I/O module |
The 16-input/16-output configuration, 24–60 VDC input range, 24 VDC output specification, and Revision 07 identification are reported consistently in the available exact-part references.
Major Features and Advantages
16 Digital Inputs and 16 Digital Outputs
The BIO232 provides a balanced 16-channel input and 16-channel output arrangement. That makes it suitable for control architectures that must both monitor discrete field or equipment states and issue discrete commands from the control system.
For maintenance planning, the channel count is more than a catalog number. Replacing a module with a different I/O density can affect existing wiring, software addressing, terminal assignments, and cabinet documentation. The original 16 DI / 16 DO configuration should therefore be preserved unless the control-system engineering documents explicitly authorize a redesign.

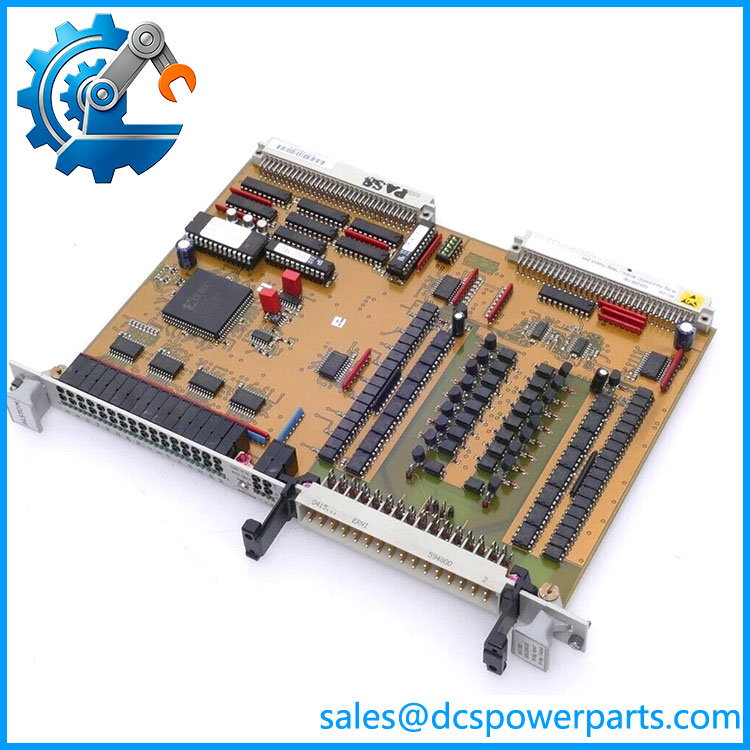

Bio232 029.209 132
Wide Digital Input Voltage Range
Available specifications identify a 24–60 VDC input range. This is particularly relevant when the BIO232 is installed in equipment where discrete signals are not limited to a single nominal 24 VDC level.
Do not interpret that figure as proof that every input channel accepts every possible 24–60 VDC signal under every operating condition. Threshold voltage, input current, isolation, surge tolerance, and channel grouping are separate electrical parameters that should be checked in the original system documentation.
24 VDC Output Specification
The available exact-part listing identifies a 24 VDC output. This provides a useful procurement reference when comparing the installed module with a replacement, but it should not be used to infer the maximum permissible output current. The public references located for this part do not provide a sufficiently reliable channel-current specification.
That distinction matters when a digital output is driving a relay, contactor interface, solenoid, or another inductive load. The voltage rating alone is not enough to validate the load.
Revision 07 Identification
The exact assembly is repeatedly identified as 029.209 132, Revision 07.
For legacy equipment, revision matching deserves more attention than it receives. Two boards carrying the same functional family name can have different component populations, firmware, connector assignments, or electrical characteristics. If the installed board is marked Rev. 07, record that information before approving a substitute.
Designed for Legacy Alstom Control Hardware
The appears in catalogs of legacy Alstom control boards alongside other 232-series hardware, including DIZ232.1, SRE232.1, VCM232.2, DAP232, DAU232, and DEP232 families.
This is useful when reconstructing an older control cabinet BOM. It also highlights why the should not be treated as a generic PLC I/O module. Its actual compatibility depends on the specific Alstom system in which it was originally installed.
Application Scenarios & Field Pain Points
- Legacy Alstom control cabinets: can serve as the discrete signal interface where existing equipment was engineered around the 029.209 132 assembly.
- Digital status acquisition: The 16 digital inputs provide discrete-state acquisition for equipment monitoring and control logic.
- Discrete command output: The 16 digital outputs provide the corresponding output-side interface for control commands.
- Maintenance replacement: The exact part number and revision make useful as a controlled replacement reference when maintaining an installed Alstom system.
Field note: The biggest risk is not usually the 16/16 I/O count. It is assuming that any “” listing is automatically equivalent. For procurement, match + 029.209 132 + Rev. 07 against the physical board and existing equipment documentation.
Related Products
The following Alstom 232-series products appear in the same broader hardware catalog, but they should not be treated as direct substitutes for without system-level verification:
- DAP 232 — 590.043150: Unit processor / digital output-oriented hardware.
- DEP 232 — 590.043152: Digital input module.
- DAU 232 — 590.043151: Digital-to-analog conversion module.
- ADU 232 — 590.043149: Analog-to-digital conversion module.
- DIZ 232.1 — 029.223 004: Counter module.
- SRE 232.1 — 029.228 675: Drive control module.
- VCM 232.2 — 029.359 088: VME configuration-manager/master module.
- COP 232.1 — 029.210 156: VME A32/D32 central unit.
These part-number relationships are documented in current secondary Alstom component catalogs.
Engineer’s Guide: Field Pitfalls to Avoid
1. Match the complete part number
Do not order solely from the designation . The procurement reference should include 029.209 132 and, where applicable, the installed Rev. 07 identification.
2. Do not assume 24 VDC means 24 VDC-only input
The available specification gives a 24–60 VDC input range. That is materially different from describing the board as a simple 24 VDC digital input module.
3. Verify output loading separately
The published 24 VDC output figure does not establish the permissible current per channel. Before connecting field loads, verify output-current, short-circuit, inductive-load, and protection specifications from the equipment documentation.
4. Check connector and wiring compatibility
A replacement board can have the correct model number and still create commissioning problems if its connector condition, terminal arrangement, or revision differs from the installed hardware. Photograph and document the existing wiring before removal.
5. Do not substitute another 232-series board
Alstom used the 232 designation across several different functions. DAP, DEP, DAU, ADU, DIZ, SRE, VCM, and BIO boards are not interchangeable simply because they share the family designation.
6. Verify the actual inventory condition
Commercial listings may describe parts as new, unused, refurbished, or in stock, but those claims do not establish the condition of a particular physical unit. For a maintenance-critical spare, verify the board label, revision, connectors, PCB condition, and packaging before acceptance.
FAQ
What is Alstom 029.209 132?
029.209 132 is identified as an Alstom digital input/output module. Available exact-part references specify 16 digital inputs, 16 digital outputs, a 24–60 VDC input range, 24 VDC output, and Revision 07.
How many I/O channels does have?
The available specification identifies 16 digital inputs and 16 digital outputs, giving the module 32 digital I/O channels in total.
What is the input voltage range?
The published exact-part specification gives an input range of 24–60 VDC.
What is the output voltage?
The available specification identifies the output voltage as 24 VDC. The maximum output current is not sufficiently documented in the sources located for this part, so it should be confirmed before connecting a field load.
Is a PLC module?
It is more accurately described as an Alstom digital I/O module. Although its function overlaps with conventional PLC digital I/O, the correct replacement decision depends on the specific Alstom control architecture and its associated hardware.
Is Revision 07 important?
Yes. Exact references identify 029.209 132 Rev. 07. For legacy control equipment, revision information should be treated as part of the procurement specification until compatibility has been confirmed.
Can another Alstom 232-series board replace ?
Not automatically. The 232 family includes different board types such as DAP, DEP, DAU, ADU, DIZ, SRE, VCM, and COP modules. Their functions differ substantially.
Procurement Takeaway
Alstom 029.209 132 is a 16-channel digital-input / 16-channel digital-output module identified as Revision 07. The available documentation supports a 24–60 VDC input range and 24 VDC output specification.
For a replacement purchase, use the complete identification / 029.209 132 / Rev. 07 rather than relying on the name alone. Because the publicly available technical evidence for this legacy part is primarily from secondary sources, confirm detailed channel electrical ratings, connector pinout, isolation, and system compatibility against the original Alstom equipment documentation before installation.
