Description

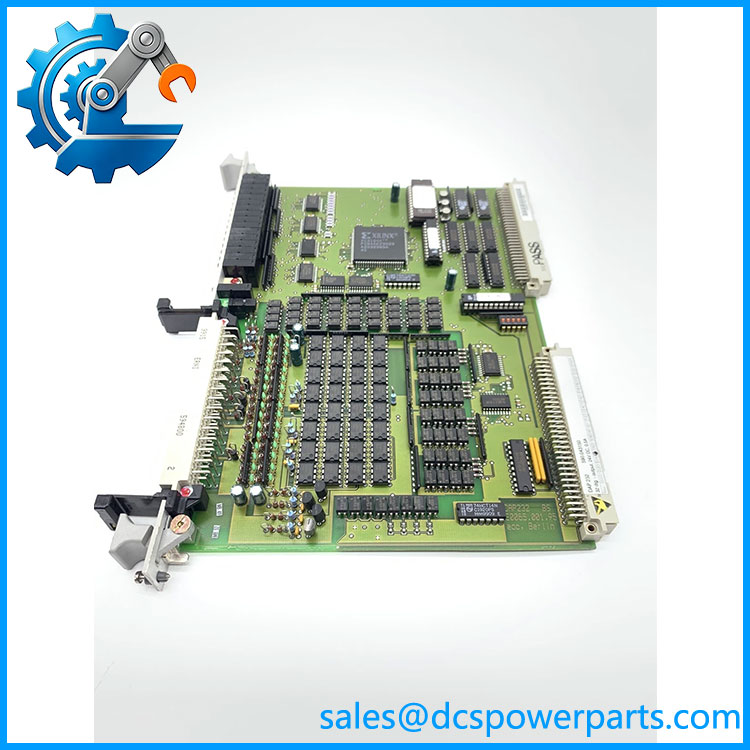

Alstom DEP232 590.043152 Digital Input Module
Product Introduction
When maintaining an older Alstom control cabinet, a two-digit or three-digit difference in a part number can mean an entirely different board. The Alstom DEP232 590.043152 is identified in current industrial references as a Digital Input Module, while 590.043150 is separately identified as the DAP232 Unit Processor.
The DEP232 is used for acquiring binary field signals within the Alstom 232 control architecture. Multiple references describe the module as a 32-channel digital input card with 24 VDC inputs, but the available public documentation is largely secondary. For procurement, the physical nameplate and complete part number should therefore take priority over a generic DEP232 family description.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Alstom |
| Product Model | DEP232 / DEP 232 |
| Correct Part Number | 590.043152 |
| Product Type | Digital Input Module |
| Core Function | Digital / binary signal acquisition |
| Number of Inputs | 32 |
| Input Signal | Digital |
| Input Voltage | 24 VDC, according to available secondary references |
| System Family | Alstom 232 control platform |
| Communication Protocol | Not independently verified |
| Installation Method | Verify against the original Alstom rack/controller configuration |
| Operating Temperature | Not independently verified |
| Protection Rating | Not independently verified |
| Condition | Verify actual inventory condition |
The 32-input and 24 VDC descriptions are supported by multiple secondary listings. More detailed electrical characteristics, isolation specifications, threshold levels, and environmental limits were not sufficiently supported by authoritative documentation and are therefore intentionally omitted.
Major Features / Advantages
32-Channel Digital Signal Acquisition
The DEP232 is identified as a digital input module for the Alstom 232 platform. Available product references describe it as providing 32 digital input channels, giving the controller a relatively high-density interface for binary field signals. This makes the module relevant to equipment where numerous discrete states, interlocks, permissives, alarms, or status contacts must be brought into the control system.
DEP232 590.043150
24 VDC Digital Input Architecture
Secondary technical listings identify the ‘s input level as 24 VDC. This is useful when checking cabinet wiring and field-interface documentation, but it should not be treated as a substitute for the original equipment drawings. Older Alstom installations can contain different interface arrangements, and the actual terminal wiring should be checked before applying field voltage.
Part-Number Traceability
The most important procurement feature here is not a technical specification—it is identification discipline. Public references consistently associate with 590.043152, while DAP232 is associated with 590.043150.
That distinction matters because DAP232 and perform different functions. DAP232 is listed as a Unit Processor, whereas is listed as a Digital Input Module. Ordering one by the other’s part number could result in receiving a fundamentally different board even though both belong to the same 232 equipment family.
Suitable for Legacy Control-System Maintenance
The remains relevant when maintenance teams are supporting installed Alstom control equipment rather than replacing the entire automation architecture. A correctly identified spare can be useful for planned maintenance, cabinet refurbishment, or troubleshooting of lost digital input channels.
The practical point is simple: verify the original board marking first. Do not rely on a supplier catalog that lists only “” without the complete catalog number.
Application Scenarios & Pain Points
- Digital status monitoring: Acquisition of binary equipment states, alarms, permissives, and interlock signals within an Alstom control system.
- Legacy controller maintenance: Replacement of a failed digital input card while retaining the existing 232 control architecture.
- Plant shutdown work: Pre-positioning a correctly identified spare before scheduled maintenance on older control cabinets.
- Control cabinet refurbishment: Maintaining the original I/O architecture where migration to a newer controller is not immediately practical.
A common procurement problem is the 590.043150 / 590.043152 mix-up. One current parts listing explicitly shows DAP232 as 590.043150 and as 590.043152, while another procurement reference lists the same distinction.
Related Products
- Alstom DAP232 — 590.043150: Unit Processor; this is the part number that conflicts with the number supplied in the original request.
- Alstom DAU232 — 590.043151: Digital-to-Analog Conversion Module.
- Alstom — 590.043152: Digital Input Module; the corrected identification for the requested here.
- Alstom ADU232.1 — 029.223 006: Related 232-series analog/digital control hardware reference.
- Alstom DAU232.1 — 029.223 005: Related 232-series conversion hardware reference.
- Alstom DIZ232.1: Counter-module family within the broader 232 platform.
- Alstom BIO232 — 029.209 132: Digital input/output module in the 232 family.
Engineer’s Guide: Field Pitfalls to Avoid
1. Do not use 590.043150 for
This is the primary issue with the original part-number combination. 590.043150 is identified as , while 590.043152 is identified as .
2. Check the physical board marking
Before installation, photograph the complete label and confirm:
→ 590.043152
If the board says 590.043150, treat it as a identification until the original Alstom documentation proves otherwise.
3. Do not assume all 24 VDC inputs are wired identically
The available secondary sources establish a 24 VDC input description, but they do not provide enough authoritative information to publish detailed input thresholds, commoning arrangements, isolation characteristics, or terminal assignments. Use the cabinet drawings and original module documentation for those details.
4. Check the controller architecture
is an I/O module, not a processor. Do not substitute it for a merely because both belong to the same Alstom 232 family.
5. Verify inventory condition
For legacy boards, “new,” “used,” “refurbished,” and “tested” are materially different procurement categories. The actual unit should be inspected for connector damage, PCB contamination, corrosion, unauthorized component replacement, and evidence of previous repair.
FAQ
What is Alstom 590.043152?
It is an Alstom Digital Input Module, identified by part number 590.043152. Available references describe it as a 32-channel digital input module for industrial control applications.
Is 590.043150 the correct part number for ?
No. Available references associate 590.043150 with , while is associated with 590.043152.
What is 590.043150?
590.043150 is identified in available industrial references as a Unit Processor, making it functionally different from the digital input module.
How many inputs does the have?
Multiple secondary references identify the as having 32 digital inputs.
What input voltage does the use?
Available secondary documentation identifies 24 VDC digital inputs. Because detailed threshold and wiring information has not been independently verified from primary documentation, the cabinet drawings should be checked before field wiring is energized.
Can 590.043152 replace 590.043150?
No interchangeability should be assumed. The available references identify them as different functional modules: is a digital input module, while is a unit processor.
What should procurement specify?
Specify Alstom , P/N 590.043152, and request photographs of the actual nameplate/PCB markings. If the requested unit is marked 590.043150, stop the transaction and verify whether the requirement is actually for a .
