Description
Product Overview

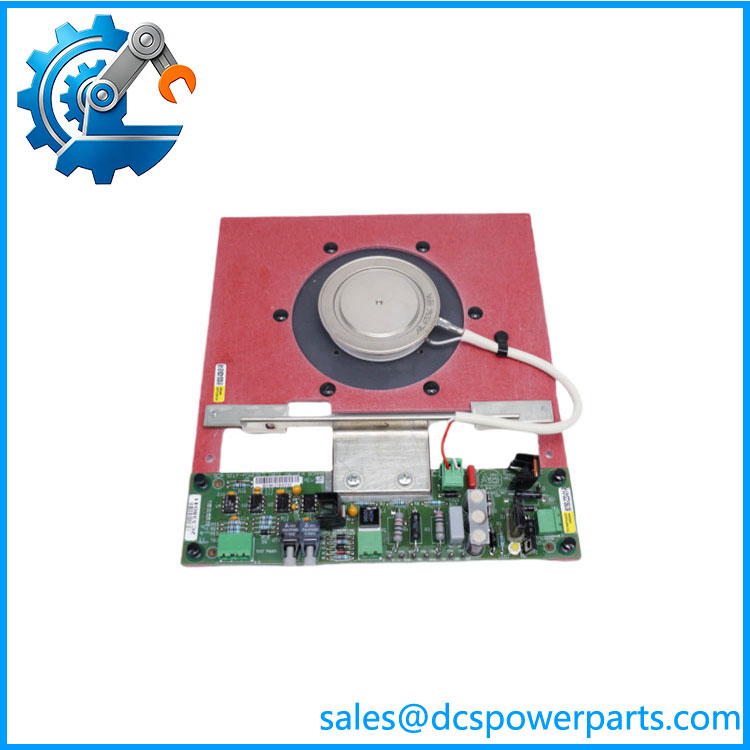

Allen-Bradley 81003-438-51-R is a high-power SCR assembly used within the power-conversion section of an Allen-Bradley medium-voltage drive. The associated 80190-220-01-R is identified as a high-voltage driver board, providing the firing/trigger interface required to control the SCR devices. These two identifiers therefore should not automatically be treated as two unrelated products; they can describe the power assembly and its associated gate-drive electronics.
The assembly is particularly relevant to PowerFlex 7000 maintenance. Unlike a conventional low-voltage VFD, a medium-voltage drive uses a substantially different power architecture, and SCR firing accuracy is directly tied to rectifier operation, DC-link behavior, input-current characteristics, and overall drive performance. 81003-438-51-R is therefore a power-stage component rather than a PLC or conventional control module.
For procurement, the complete installed-drive configuration should be checked before ordering. Available secondary sources contain conflicting descriptions—including claims that the part is a generic control module or an ABB AC800F component—so those descriptions should not be used as engineering specifications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Main Part Number | 81003-438-51-R |
| Associated PCB | 80190-220-01-R |
| Product Type | SCR / Rectifier Assembly |
| Associated Board Type | High-Voltage SCR Gate-Driver Board |
| Drive Family | PowerFlex 7000 |
| Power System | Medium-voltage AC drive |
| Primary Function | Controlled SCR rectification |
| Gate Control | SCR firing / pulse triggering |
| Application | High-power motor drive power section |
| Installation | Internal MV drive power-conversion assembly |
| Lifecycle | Legacy / replacement spare |
Important specification note
I would not publish 690 VAC, 51 A, 20 A, 4.4 kW, or similar figures as confirmed specifications for the combined assembly. One source gives 690 V / 51 A for 81003-438-51-R, while another gives 220 VAC / 20 A / 4.4 kW for 80190-220-01-R; these appear to be secondary-source interpretations rather than a coherent specification for the PowerFlex 7000 assembly.
For an engineering datasheet, the drive nameplate, complete PowerFlex 7000 catalog number, SCR assembly identification, and gate-driver board marking should take precedence.
Main Features and Advantages
SCR-Based Medium-Voltage Power Conversion
The 81003-438-51-R assembly belongs to the high-power rectifier portion of the drive. SCR devices are controlled through precisely timed gate pulses, allowing the drive’s input power-conversion section to regulate the electrical conditions presented to the DC link.
Dedicated High-Voltage Gate Drive
The associated 80190-220-01-R is identified as a high-voltage driver board. Its role is fundamentally different from a standard low-voltage PLC output card: it must deliver appropriately isolated and timed firing pulses to power semiconductor devices operating at medium-voltage drive potentials.
Board-Level Maintenance
A board or SCR assembly replacement can be useful when the remainder of a PowerFlex 7000 installation remains serviceable. This is particularly important in older plants where replacing the complete MV drive can involve significant engineering, cable, motor, protection, and commissioning work.
Power-Stage Diagnostic Value
When a PowerFlex 7000 exhibits input-current imbalance, rectifier faults, abnormal DC-link behavior, or SCR firing-related alarms, the rectifier assembly and gate-drive circuitry should be considered alongside the control system.
A gate-driver board should not be replaced simply because an SCR-related fault is present. The SCR itself, firing transformer/interface, protection network, cabling, and control signals should also be examined.
81003-438-51-R
Application Scenarios
PowerFlex 7000 Medium-Voltage Drives
The strongest application evidence associates these part numbers with the Allen-Bradley medium-voltage drive ecosystem. Secondary technical records specifically identify 81003-438-51-R as an SCR assembly and 80190-220-01-R as a high-voltage driver board.
Heavy Industrial Motor Control
Typical PowerFlex 7000 installations serve large motors in applications such as:
- Pumps
- Fans
- Compressors
- Conveyors
- Mills
- Crushers
- Process equipment
- Mining and metals equipment
Legacy MV Drive Maintenance
For an installed medium-voltage drive, maintaining the original power architecture can be preferable to replacing the complete system when the failure is isolated to a replaceable power assembly.
Related Components
- 80190-220-01-R — Associated high-voltage SCR gate-driver board.
- 81003-438-51-R — SCR/rectifier assembly identifier.
- PowerFlex 7000 rectifier assemblies — Closely related assemblies must be selected according to drive voltage, current, frame/power architecture, and rectifier configuration.
- SCR firing circuitry — Includes the driver electronics and isolation/interface hardware needed to control the power SCRs.
Engineer’s Guide: Field Pitfalls
⚠️ Do Not Treat the Two Numbers as Equivalent
81003-438-51-R and 80190-220-01-R should not be entered into a purchase order as interchangeable descriptions.
A practical interpretation is:
81003-438-51-R → SCR / rectifier assembly
80190-220-01-R → associated high-voltage SCR driver board
The available records support this distinction.
⚠️ Beware of Incorrect Brand and Series Information
Some online listings incorrectly identify these numbers as ABB AC800F hardware or generic PLC modules. One listing even describes the manufacturer as ABB while simultaneously labeling the item Rockwell.
That information should be disregarded for engineering selection.
⚠️ Do Not Select an SCR Assembly From Current Rating Alone
Medium-voltage drive power assemblies are configuration-specific. The correct replacement depends on the complete drive architecture, voltage class, power/current rating, rectifier arrangement, semiconductor configuration, and associated gate-drive circuitry.
⚠️ Test the Complete Power Path
If the original failure involved an SCR, inspect:
- SCR junction condition
- Gate-to-cathode characteristics
- Gate firing pulses
- Isolation components
- Firing transformers/interfaces
- Snubber/protection networks
- DC-link condition
- Input phase balance
- Associated control wiring
Replacing the SCR assembly without determining why it failed can produce a repeat failure.
Frequently Asked Questions
What is 81003-438-51-R?
It is identified in available industrial parts records as an Allen-Bradley SCR/rectifier assembly, associated with medium-voltage drive power electronics and PowerFlex 7000 applications.
What is 80190-220-01-R?
80190-220-01-R is identified as a high-voltage SCR gate-driver board. Its purpose is to generate/control the firing pulses used by SCR power devices.
Are 81003-438-51-R and 80190-220-01-R the same part?
No. They are separate identifiers associated with different portions of the power-conversion system.
Are these PowerFlex 7000 components?
The available technical records associate the SCR assembly with PowerFlex 7000.
For an actual replacement, verify the complete drive catalog number and existing assembly markings.
Can 80190-220-01-R be tested independently?
It can be electrically inspected and its gate-drive circuitry can be evaluated on appropriate test equipment, but meaningful acceptance testing should reproduce the relevant firing/interface conditions. A simple continuity test is not sufficient evidence of correct gate-pulse operation.
What should I request when purchasing these parts?
For 81003-438-51-R, request:
- Actual assembly photographs.
- SCR device identification.
- Assembly/revision markings.
- Drive application used for testing.
- Electrical inspection results.
- SCR testing results.
- Evidence of insulation/isolation testing where applicable.
- Test report.
For 80190-220-01-R, also request evidence that the gate-drive output was actually tested, rather than merely confirming that the PCB powers up.
What is the safest procurement description?
A good purchase-order description would be:
Allen-Bradley 81003-438-51-R SCR/Rectifier Assembly, associated with 80190-220-01-R High-Voltage SCR Gate-Driver Board; PowerFlex 7000 medium-voltage drive application; exact drive configuration and revision to be verified before shipment.
That wording avoids relying on the inconsistent generic specifications found in several secondary listings.
