Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 80190-780-01-R |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Type | PFNI HMI Interface Assembly |
| Alternate Description | NetServer Interface Board |
| Drive Platform | PowerFlex 7000 ForGe Medium Voltage Drive |
| Main Function | HMI and network interface communication |
| Assembly Type | PFNI Customer Assembly |
| Processor Connection | Interfaces with Drive Processor Module (DPM) |
| Communication Function | Drive data exchange and operator interface support |
| Installation | Internal PowerFlex 7000 control cabinet |
| Firmware Dependency | Requires matching HMI interface firmware |
| Memory Support | SD card based system information storage |
| Application | Medium voltage motor drive control systems |
Application Scenarios & Pain Points
A medium voltage drive can keep critical motors operating while losing visibility through the operator interface. That creates a difficult maintenance situation: the equipment is running, but alarms, trends, and diagnostics become harder to access.
Typical applications:
- Mining Operations: Used with PowerFlex 7000 drives controlling large conveyors, crushers, and material handling equipment.
- Oil & Gas Facilities: Supports MV motor drive systems used for pumps, compressors, and process machinery.
- Power Generation: Applied in auxiliary motor systems where drive monitoring and operator access are required.
- Water Infrastructure: Used for large pumping applications requiring continuous drive status monitoring.
Field note: A plant reported loss of HMI communication on a PowerFlex 7000 drive while the motor remained operational. Diagnostics identified the interface assembly as the failure point. Replacing the 80190-780-01-R and transferring the existing system data restored operator access.

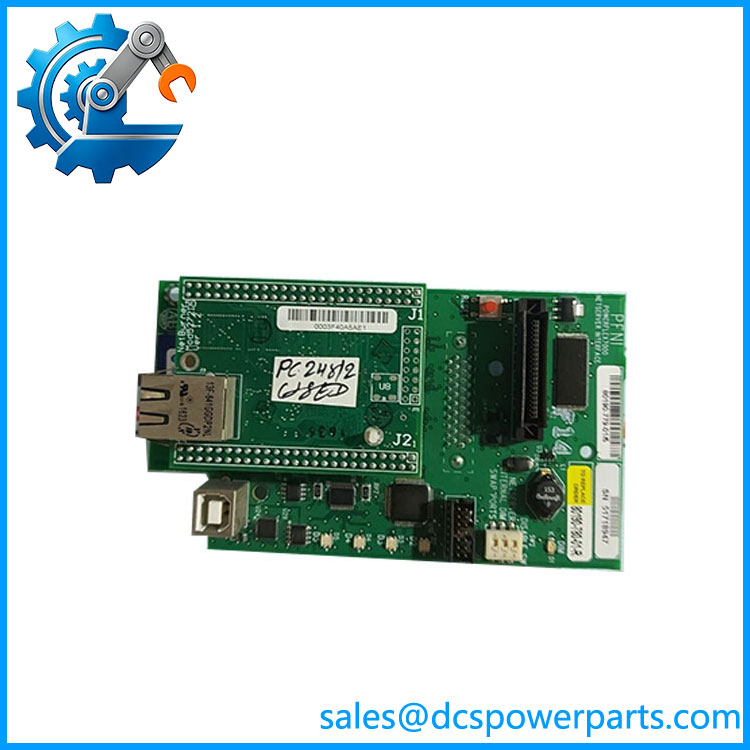

80190-780-01-R
Related Products
- Allen-Bradley PowerFlex 7000 ForGe Drive — The primary drive platform that uses the 80190-780-01-R HMI interface assembly.
- Allen-Bradley Drive Processor Module (DPM) — Main control processor assembly that connects with the HMI interface board.
- Allen-Bradley 80190-780-02-R — Related HMI interface board variant used in PowerFlex 7000 configurations with different hardware revisions.
- Allen-Bradley 80190-780-01-A — Earlier ordering variant of the HMI interface assembly.
- Allen-Bradley PowerFlex 7000 Control Boards — Supporting drive control hardware responsible for motor regulation and protection functions.
- Allen-Bradley 20-750 series communication modules — Different PowerFlex communication hardware used in other drive families.
- Allen-Bradley PanelView Plus Terminals — Operator interface devices that may communicate with drive systems in industrial applications.
- Allen-Bradley Stratix Industrial Ethernet Switches — Network infrastructure components often used with modern industrial drive communication systems.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Firmware Revision Mismatch
A replacement HMI interface board may power up but fail to communicate correctly if firmware versions do not match the PowerFlex 7000 system.
How to avoid: Record existing firmware revision, HMI software version, and SD card contents before replacement.
⚠️ Missing SD Card Transfer
The HMI interface assembly may rely on stored drive-specific information.
How to avoid: Transfer the original SD card when replacing the assembly and verify stored documentation/configuration files.
⚠️ Incorrect DPM Interface Connection
Poor seating or incorrect connection between the HMI board and DPM can cause communication faults.
How to avoid: Inspect connectors carefully and check for contamination or damaged pins before startup.
Frequently Asked Questions (FAQ)
What is the main function of the Allen-Bradley 80190-780-01-R?
The 80190-780-01-R is a PFNI HMI Interface Assembly used in PowerFlex 7000 ForGe drives to connect the drive control platform with the HMI and communication interface.
Is the 80190-780-01-R a complete PowerFlex 7000 controller?
No. It is an interface assembly. The main drive control functions are handled by other PowerFlex 7000 control components.
Can I replace the 80190-780-01-R without updating firmware?
Not always. Firmware compatibility should be verified because HMI interface software and drive firmware must operate together correctly.
What should be checked before ordering this HMI interface board?
Recommended checks:
- Complete part number: 80190-780-01-R
- PowerFlex 7000 drive model
- ForGe platform identification
- Existing firmware revision
- SD card configuration
- DPM compatibility
Why does the HMI fail after replacing the interface board?
Possible causes include:
- Incorrect firmware version
- Missing SD card data
- Communication configuration mismatch
- Loose DPM connection
- Network parameter differences
Is a refurbished 80190-780-01-R suitable for PowerFlex 7000 service?
A tested refurbished unit can be suitable when it passes interface testing, communication verification, connector inspection, and firmware compatibility checks.
How should this board be stored as a spare?
Store the assembly in anti-static packaging in a dry environment. Avoid moisture, dust, vibration, and contamination that may affect connectors and electronic components.
