Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model Number | 2711-K6C10 |
| Product Type | PanelView 600 Operator Terminal |
| Display Type | Color active matrix TFT |
| Display Size | 5.7 inch diagonal |
| Display Resolution | 320 × 234 pixels |
| Input Method | Keypad |
| Function Keys | F1-F10 |
| Communication Interface | DeviceNet |
| Additional Port | RS-232 printer port |
| DeviceNet Baud Rate | 125 / 250 / 500 kbps |
| Power Supply | 85-264VAC |
| Power Frequency | 47-63Hz |
| Application Memory | 240KB nonvolatile memory |
| Software Support | PanelBuilder32 |
| Backlight | Replaceable backlight assembly |
| Enclosure Rating | NEMA Type 12/13, 4X indoor, IP54/IP65 |
| Mounting | Panel cutout installation |
| Dimensions | Approx. 192 × 290 × 116mm |
| Weight | Approx. 2kg |
Product Introduction

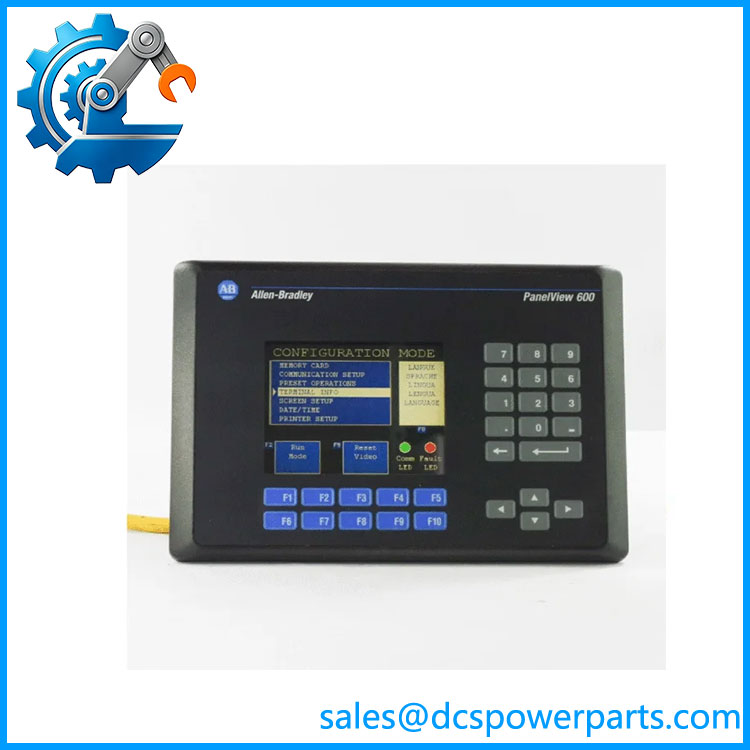

Allen-Bradley 2711-K6C10 Overview
The Allen-Bradley 2711-K6C10 is a PanelView 600 Standard operator terminal designed for machine-level visualization and operator control in PLC automation systems. It provides a 5.7-inch color TFT display, keypad-based operation, and DeviceNet communication for interaction with industrial controllers and field devices.
The Allen-Bradley 2711-K6C10 is commonly found in legacy production equipment where PanelBuilder32 applications and DeviceNet networks remain in service. It remains useful for maintaining existing machines without redesigning the operator interface architecture.
2711-K6C10
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A packaging machine runs reliably for years, then the operator terminal fails during production. The PLC program is still healthy, but operators lose visibility of alarms, setpoints, and machine status.
This is a common issue with legacy HMI systems. Replacing the terminal is not only a hardware task. The application file, communication settings, and PLC addressing must match the original installation.
The 2711-K6C10 is part of an older PanelView architecture. Proper documentation matters.
Typical Applications
- Packaging Machinery – Operator control panels for filling machines, labeling systems, and production conveyors.
- Automotive Manufacturing – Machine status display, manual controls, and production parameter entry.
- Material Handling Systems – Conveyor control, alarm display, and equipment diagnostics.
- Process Equipment Skids – Local operator interface for pumps, valves, and auxiliary control systems.
Technical Pitfalls to Avoid
- Verify DeviceNet Network Configuration
The 2711-K6C10 communicates through DeviceNet. Confirm node address, baud rate, scanner configuration, and network power before replacement.
- Confirm PanelBuilder32 Application Compatibility
Existing HMI projects may depend on specific firmware revisions. Upload and validate the original application before installing a replacement terminal.
- Check Power Supply Type
The 2711- uses AC power input. Do not replace it with a DC-powered PanelView model without verifying wiring and cabinet design.
Related Products
- Allen-Bradley 2711-K6C1
PanelView 600 keypad terminal with Remote I/O communication. Used in systems where PLC communication is based on Remote I/O rather than DeviceNet. - Allen-Bradley 2711-K6C20
PanelView 600 Ethernet/IP version. Used for newer network architectures requiring Ethernet communication. - Allen-Bradley 2711-T6C10
PanelView 600 color terminal variant with touch input. Application differs from the keypad-only 2711-. - Allen-Bradley 2711-B6C10
PanelView 600 keypad/touch combination model. Used where operators require both physical keys and touchscreen input. - Allen-Bradley 2711-NC14
Communication cable accessory used with compatible PanelView DeviceNet terminals. - Allen-Bradley 2711-NL3
Replacement backlight assembly for PanelView 600 color terminals. - Allen-Bradley 2711P Series PanelView Plus 7
Modern HMI platform used for migration projects replacing older PanelView Standard terminals. - Allen-Bradley ControlLogix DeviceNet Scanner Modules
Controller-side communication modules commonly paired with DeviceNet PanelView terminals.
