Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Acme Electric |
| Model | T-2-53007-S |
| Product Type | Single Phase Control Transformer |
| Transformer Type | Dry Type Power Transformer |
| VA Rating | 250 VA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120/240 VAC |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Winding Type | Single Secondary Winding |
| Insulation Class | Industrial control transformer design |
| Mounting | Panel / enclosure mounting |
| Cooling Method | Natural air cooled |
| Certifications | UL / CSA approvals |
| Application | Industrial control power circuits |
Product Introduction

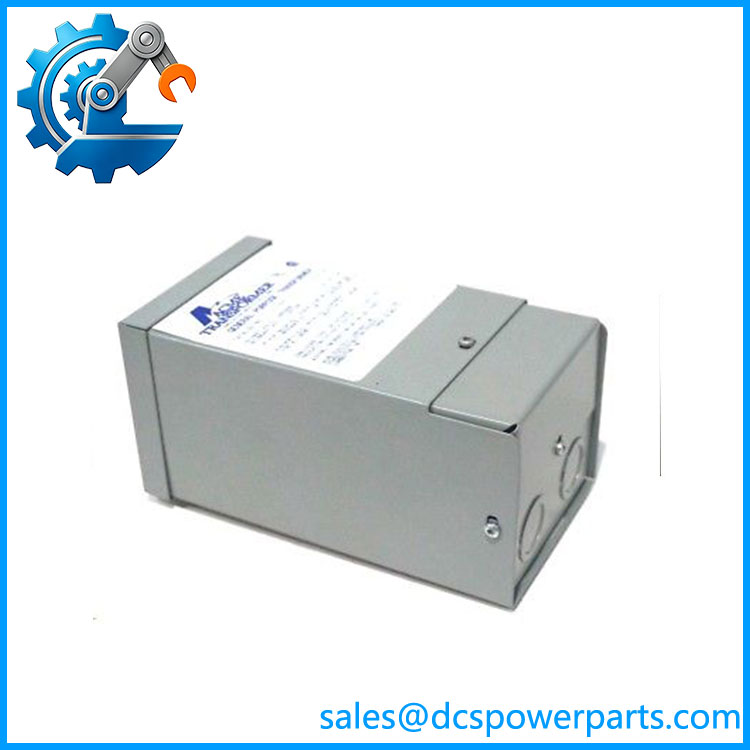

Acme Electric T-2-53007-S Overview
The Acme Electric T-2-53007-S is a single-phase control transformer designed to provide isolated control power for industrial electrical systems. It is commonly installed inside automation cabinets and machine control panels where a dependable low-voltage control supply is required for operating control devices, instrumentation circuits, and industrial switching components.
The Acme Electric T-2-53007-S converts incoming 240 VAC or 480 VAC supply voltage into 120 VAC or 240 VAC secondary control power, allowing industrial equipment designers to separate control circuits from the main power distribution system. This isolation helps protect sensitive control components and provides a dedicated power source for automation hardware.
The Acme Electric T-2-53007-S is typically used in motor control applications, PLC-based machine systems, industrial OEM equipment, and electrical enclosures. With a 250 VA rating, it is suited for control loads such as contactors, relays, timers, small solenoid valves, and auxiliary control devices where moderate power capacity is required.
Unlike an electronic power supply, a control transformer does not regulate voltage actively. Output voltage depends on input voltage, transformer loading, and wiring conditions. During replacement, engineers should verify the voltage configuration, VA capacity, fuse protection, mounting dimensions, and connected control load requirements before installation.
T-2-53007-S
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A machine control cabinet experiences repeated control resets, contactor dropout, or unstable relay operation. The transformer may be suspected, but the actual issue can also involve insufficient VA capacity, loose wiring, or excessive inrush current.
Recommended troubleshooting steps:
- Measure primary voltage
- Verify secondary voltage under load
- Check transformer temperature
- Confirm connected VA demand
- Inspect terminal connections
- Verify protective fuse sizing
The Acme Electric T-2-53007-S supplies control power, but the complete electrical design determines system stability.
Typical Applications
Industrial Control Panels
Used for:
- PLC control circuits
- Relay logic systems
- Operator interface panels
- Machine automation cabinets
Motor Control Equipment
Applied for:
- Starter circuits
- Contactor coils
- Overload relay systems
- Auxiliary control voltage
Manufacturing Machinery
Used in:
- Packaging equipment
- Assembly machines
- Material handling systems
- Production equipment
Building and Utility Systems
Applied for:
- HVAC control panels
- Pump control systems
- Electrical distribution panels
Technical Pitfalls to Avoid
1. Confirm VA Capacity
Before replacement, calculate:
- Total control load
- Contactor inrush current
- Solenoid demand
- Future expansion requirements
A transformer operating near its limit may cause secondary voltage drop.
2. Verify Voltage Configuration
Check:
- Primary connection taps
- Secondary output wiring
- Control circuit voltage requirements
Incorrect tap selection can damage connected equipment.
3. Inspect Protection Devices
Verify:
- Primary fusing
- Secondary fusing
- Short-circuit protection
- Grounding arrangement
Proper protection is required for safe transformer operation.
4. Check Mechanical Installation
Confirm:
- Mounting clearance
- Heat dissipation
- Cabinet airflow
- Terminal accessibility
Transformers generate heat during operation and require suitable enclosure design.
