Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | VBS01-EPD |
| Manufacturer | ABB |
| Product Family | Symphony Plus SD Series I/O |
| Product Type | Module Termination Unit / Vertical Mounting Base |
| Configuration | Single I/O module |
| Channels | 16 |
| Mounting | Vertical column / 35 mm DIN rail |
| Form Factor | Full-size |
| Dimensions | Approximately 218 mm H × 66 mm W × 110.7 mm D |
| HN800 Bus Length | 305 mm |
| Supported I/O | AI01, AI02, AI05, AI06, AO01, AO02, AO05, AD11, DI01, DI02, DI03, DI04, DO01, DO02, DO05, PI01 |
| Field Power Arrangement | Externally powered from field device; system-powered for AO |
| Signal Connections | 2 × pluggable 16-point terminal blocks |
| Connector Requirement | 2 × 16-pin, 5 mm pluggable connectors |
| Maximum Current | 250 mA |
| Acceptable Wire Size | #22–14 AWG stranded/solid; #12 AWG stranded |
| Galvanic Isolation Test | 1500 V for up to 1 minute |
| Hot Swap | No |
| Protection Class | IP20 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 20–95% at 40°C, non-condensing |
| Altitude, Operating | Sea level to 3,048 m |
| Weight | Approximately 327 g |
| MTBF | 8,757,234 hours, per specified MIL-HDBK-217-FN2 calculation |
| Certification | CE, RoHS, WEEE; CSA hazardous/nonincendive versions documented |
ABB’s current hardware selector identifies VBS01-EPD as a 16-channel, full-size, vertically mounted SD Series base and specifies the supported module families and environmental characteristics.
Application Scenarios & Pain Points
A termination-base problem can be deceptively difficult to diagnose. The SD I/O module may be healthy while a loose terminal, damaged connector, or incorrect base configuration creates intermittent field-signal faults. Since VBS01-EPD is part of the physical signal path, treating it as a simple mechanical bracket is a mistake.
- Process analog input: Used with compatible SD analog-input modules such as AI01, AI02, AI05, and AI06 where the field device supplies its own power.
- Analog output: Supports compatible AO modules, with ABB specifying system-powered operation for the analog-output arrangement.
- Discrete I/O: DI01 through DI04 and DO01, DO02, and DO05 are among the listed compatible modules.
- Pulse/process inputs: PI01 is also listed among the supported SD I/O modules.
Field note: The two 16-point headers are important. ABB specifies two pluggable 16-point terminal blocks, giving the base its 16-channel process-signal termination capability. Before replacing one, compare the connector style and field wiring carefully; a module can fit mechanically while the existing termination hardware is not ready for direct transfer.

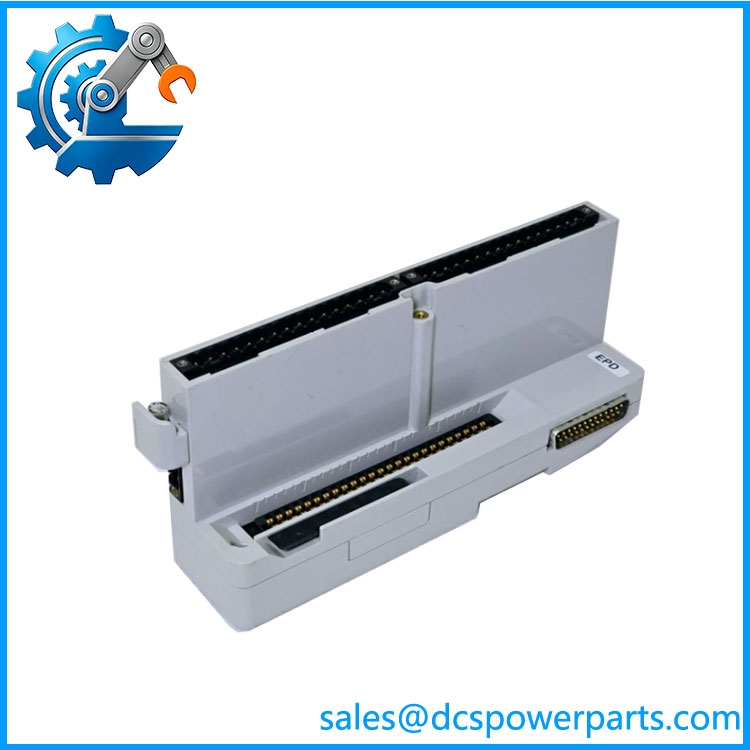

VBS01-EPD
Related Products
- AI01 — Compatible SD Series analog-input module. VBS01-EPD provides the field termination and mounting interface for this type of analog input.
- AI02 — Another compatible analog-input module. The same VBS01-EPD base can be used when the application and wiring arrangement match.
- AI05 — Compatible SD analog-input option for applications requiring the corresponding input characteristics.
- AO01 — Compatible analog-output module. VBS01-EPD supports the associated termination arrangement with system-powered AO operation.
- AO02 — Another compatible SD analog-output module; confirm channel and field wiring requirements before substitution.
- DI01 / DI02 / DI03 / DI04 — Compatible digital-input modules. The base supplies their physical signal termination but does not perform the digital input processing.
- DO01 / DO02 / DO05 — Compatible digital-output modules. DO05 has application-specific current considerations, so the base/module combination should be checked against the load.
- PI01 — Compatible pulse-input module for applications requiring pulse or frequency-related process signals.
- VBS01-FPH — Similar vertical single-module base, but intended for a different field-power arrangement. Do not substitute it merely because its dimensions are similar.
- VBS01-FPN — Another vertical single-module base with switched-neutral field-power architecture. Its field-power behavior differs from EPD.
ABB’s compatibility tables distinguish these bases according to field-power arrangements and supported I/O modules, which makes the suffix meaningful during replacement.
The Engineer’s Guide: Field Pitfalls to Avoid
Warning 1 — Do notuse with -FPH or -FPN.
They share the family and similar physical dimensions, but their field-power arrangements are dint. is specifically intended for externally powered field devices and system-powered AO applications.
How to avoid it: Match the complete base designation and document how field power is currently wired before removing the existing unit.
Warning 2 — The base and I/O module must be treated as a matched pair.
ABB lists specific compatible modfor . A module that physically fits the SD-series architecture is not automatically approved for every base.
How to avoid it: Verify the I/O module’s exact model agathe compatibility list before ordering.
Warning 3 — Do not hot-swap it.
ABB specifies Hot Swap: Nofor . That matters when the base is part of an operating process rack.
How to avoid it: Follow the plant’s shutdown, isolation, and I/O maintenance procedure. Confirm field power is removed before disturbing the termination assembly.
Frequently Asked Questions (FAQ)
WhaABB ?
The is a vertical Module Termination Unit (MTU) for the Symphony Plus SD Series I/O system. It provides the mounting and field-signal termination interface for a single compatible SD I/O module. ABB describes it specifically as a vertical base for a single module with externally powered field inputs.
Is an I/O module?
No. This distinction is important during procurement. is the mounting/termination base, while modules such as AI01, DI01, AO01, or DO01 perform the actual signal processing. The base provides the electrical termination path and mechanical interface.
Which SD Series modules can be inst on ?
ABB lists a broad compatibility range, including:
- AI01, AI02, AI05, AI06
- AO01, AO02, AO05
- AD11
- DI01, DI02, DI03, DI04
- DO01, DO02, DO05
- PI01
The exact approved compatibility should be checked against the current ABB hardware documentation before replacing an installed base.
What does “EPD” mean in this configuration?
The EPD configuration is associated with externally powered field devices, while the base provides the applicable system-powered arrangement for analog outputs. This is the key functional distinction from bases such as FPH and FPN, which use different field-power schemes.
Can be hot-swapped?
No. ABB lthe Hot Swap characteristic as No. Treat removal or installation as a maintenance activity requiring the appropriate isolation procedure.
What should I check when buying a repent ?
For an industrial spare, verify:
- Exact model:
- Compatible SD I/O module
- Two 16-point terminal blocks
- Connector condition
- DIN-rail latch condition
- HN800 bus interface
- No cracked plastic or damaged locking mechanism
- No oxidation on contacts
- Correct field-power arrangement
- Unit condition, testing, and warranty
The most common procurement error here is ordering by physical appearance. is an interface component whose electrical field-power arrangement matters just as much as its dimensions.
