Description
Product Introduction
The ABB UNS2882A-P,V1 3BHE003855R0001 is a dedicated Extended Gate Controller used within ABB’s UNITROL 5000 excitation-system architecture. ABB’s published UNITROL 5000 spare-parts documentation provides the strongest identification available for this part: material number 3BHE003855R0001, type UNS 2882 A-P V1, and description Extended gate controller. The same document marks the component as system-dependent, which is important when evaluating replacement compatibility.
The board belongs to the gate-control portion of the excitation system rather than serving as a conventional PLC CPU or generic DCS interface. Its function is associated with the generation/control chain that ultimately drives the power-converter switching devices. In the same UNITROL 5000 spare-parts architecture, ABB separately identifies the UNS2880B-P,V2 as the Control Board, UNS2881B-P,V1 as the Measuring Unit Board, UNS0880A-P as the Converter Interface, and UNS0881A-P as the Gate Driver Interface.
This distinction matters in procurement. Several secondary listings describe the UNS2882A-P,V1 generically as an “interface board” or “control board,” and one even associates it with DCS/Symphony Plus applications. Those descriptions conflict with ABB’s own UNITROL 5000 documentation. For engineering purposes, the ABB designation Extended Gate Controller should take precedence.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product ID | 3BHE003855R0001 |
| Type Designation | UNS 2882 A-P V1 |
| Full Model | UNS2882A-P,V1 |
| Product Type | Extended Gate Controller |
| System Family | UNITROL 5000 |
| Primary Application | Generator excitation |
| Functional Area | Gate-control system |
| System-Dependent | Yes |
| Board Revision | V1 |
| Related Control Board | UNS2880B-P,V2 |
| Related Measurement Board | UNS2881B-P,V1 |
| Related Gate Driver Interface | UNS0881A-P,V1 |
ABB’s official spare-parts documentation confirms the type, identification number, description, UNITROL family, and system-dependent status.
Specification caution: Secondary listings publish values such as 24 VDC supply, 16 channels, specific operating temperatures, and generic digital-communication interfaces. These claims are not established by the ABB spare-parts record and should not be copied into a formal engineering specification without the applicable UNITROL documentation.
Application Scenarios & Engineering Considerations
The UNS2882A-P,V1 is intended for applications built around ABB UNITROL 5000 excitation equipment.
- Generator excitation control: Provides the extended gate-control function within the excitation architecture.
- Static excitation systems: Relevant to systems where controlled power-converter switching is required.
- Power-generation plants: Used as part of dedicated generator excitation electronics.
- UNITROL 5000 maintenance: Suitable when replacing the same hardware revision in an existing system.
- Excitation-system refurbishment: Useful for maintaining legacy generator control equipment without changing the complete control architecture.
The important point is that this board does not operate as an independent PLC module. Its behavior depends on the complete excitation system, including the control board, measurement board, converter interface, gate-driver circuitry, system configuration, and associated power electronics.

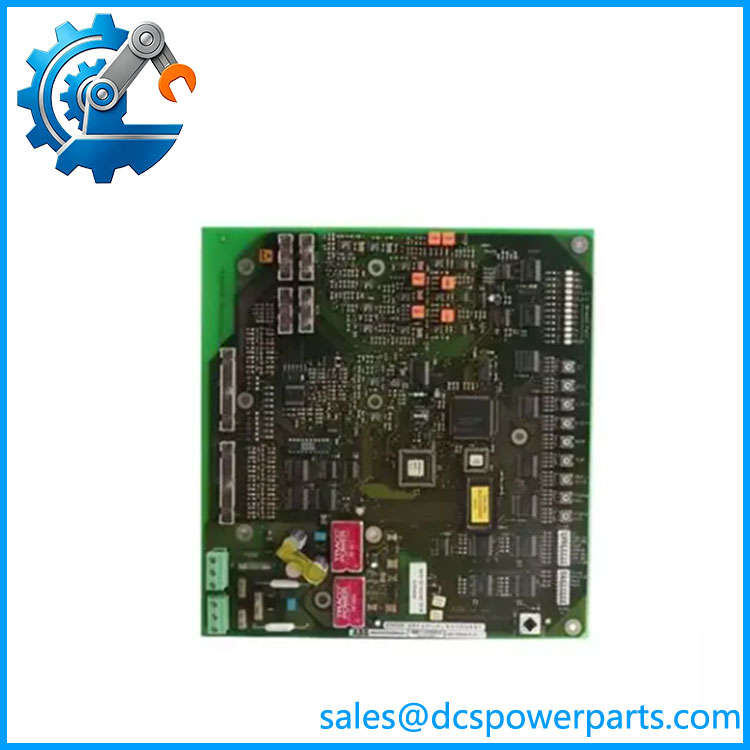

UNS2882A 3BHE003855R0001
Related ABB UNITROL 5000 Boards
- UNS2882A-P,V1 — 3BHE003855R0001 — Extended Gate Controller.
- UNS2880B-P,V2 — 3BHE014967R0002 — Control Board.
- UNS2881B-P,V1 — 3BHE009319R0001 — Measuring Unit Board.
- UNS0880A-P,V1 — 3BHB005922R0001 — Converter Interface.
- UNS0881A-P,V1 — 3BHB006338R0001 — Gate Driver Interface.
- UNS0882A-P,V1 — 3BHB006309R0001 — Power Signal Interface.
- UNS0883A-P,V1 — 3BHB006208R0001 — Fast I/O.
- UNS0887A-P — 3BHE008128R0001 — Communication Adapter Print.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Do not classify this as a generic DCS interface board.
Some secondary listings label 3BHE003855R0001 as a DCS interface or Symphony Plus interface. ABB’s own UNITROL 5000 documentation identifies it as an Extended Gate Controller.
How to avoid it: Use 3BHE003855R0001 + UNS2882A-P,V1 and the installed UNITROL system documentation as the primary matching criteria.
⚠️ Do not confuse it with UNS0881A-P.
These boards are related to the gate-control chain but are not the same component:
- Extended Gate Controller
- UNS0881A-P,V1: Gate Driver Interface
⚠️ The V1 revision matters.
ABB identifies the requested unit as UNS 2882 A-P V1. Do not approve another UNS2882 variant merely because the basic type number appears similar.
⚠️ “System-dependent” is a meaningful procurement warning.
ABB explicitly marks this spare part as system-dependent. That means a replacement should be evaluated against the specific UNITROL configuration rather than treated as a universally interchangeable board.
⚠️ A visual inspection is not enough.
For a used or refurbished board, testing should cover the board’s relevant power rails, communication/interface behavior, diagnostics, and—most importantly—the gate-control function within an appropriate UNITROL test environment.
Frequently Asked Questions
What is ABB 3BHE003855R0001?
It is the ABB ,V1 Extended Gate Controller used in UNITROL 5000 excitation systems.
What is the function of ,V1?
It performs an extended gate-control function within the generator excitation system.
Is UNS2882A a PLC CPU?
No. It is a dedicated UNITROL 5000 excitation-system control board, not a general-purpose PLC processor.
Is it the same as UNS2881B-P,V1?
No. ABB identifies UNS2881B-P,V1 as the Measuring Unit Board, while is the Extended Gate Controller.
What should I verify before purchasing?
Verify:
- 3BHE003855R0001
- UNITROL 5000 system model
- Board revision
- Existing control-board version
- Measurement-board version
- Gate-driver interface version
- Connector configuration
- System-specific settings
- Functional test results
