Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | UNS0881A-P,V1 |
| Product ID | 3BHB006338R0001 |
| Manufacturer | ABB |
| Product Family | UNITROL 6000 |
| Product Type | Gate Driver Interface (GDI) PCB |
| Board Revision | V1 |
| ABB Catalog Description | UNS 0881a-P,V1 GDI PCB completed *PB |
| Primary Function | Gate-drive interface |
| Application | Static generator excitation |
| System Type | UNITROL 6000 |
| Country of Origin Listed by ABB | Switzerland / Thailand |
| Customs Tariff Number | 85372000 |
ABB’s current product record confirms the exact Product ID 3BHB006338R0001 and catalog description *“UNS 0881a-P,V1 GDI PCB completed PB.”
ABB’s published UNITROL spare-parts material distinguishes this part from 3BHB006338R0002, which is UNS 0881a-P V2. Both are identified as Gate Driver Interface hardware, but they are separate revisions and should not be casually interchanged.
One caution on commonly quoted specifications: secondary listings sometimes publish values such as 220 VAC, 24 VDC, 50 kHz, or DIN-rail mounting for this part. Those figures are not substantiated in the ABB product record I found. For engineering documentation, I would avoid treating those values as confirmed specifications without the applicable UNITROL cabinet documentation.
Application Scenarios & Pain Points
Excitation faults are rarely forgiving. A missing or distorted gate-drive signal can leave the generator unable to build field current even when the higher-level controller appears healthy.
- UNITROL 6000 excitation systems: The UNS0881A-P,V1 is explicitly listed by ABB as the V1 Gate Driver Interface within the UNITROL 6000 spare-parts family.
- Static excitation equipment: The board belongs to the interface layer between excitation control electronics and the converter’s gate-drive circuitry.
- Power-generation maintenance: Appropriate for planned replacement of aging GDI hardware where an exact V1 spare is required.
- Emergency excitation repair: Keeping an exact board revision on site can be useful when a generator outage cannot wait for a board-level investigation.
Field note: When a replacement GDI board is installed, do not stop at the “no fault” indication. Verify the actual firing/interface path according to the approved commissioning procedure. A board can initialize correctly while a connector, optical path, or downstream gate circuit remains faulty.

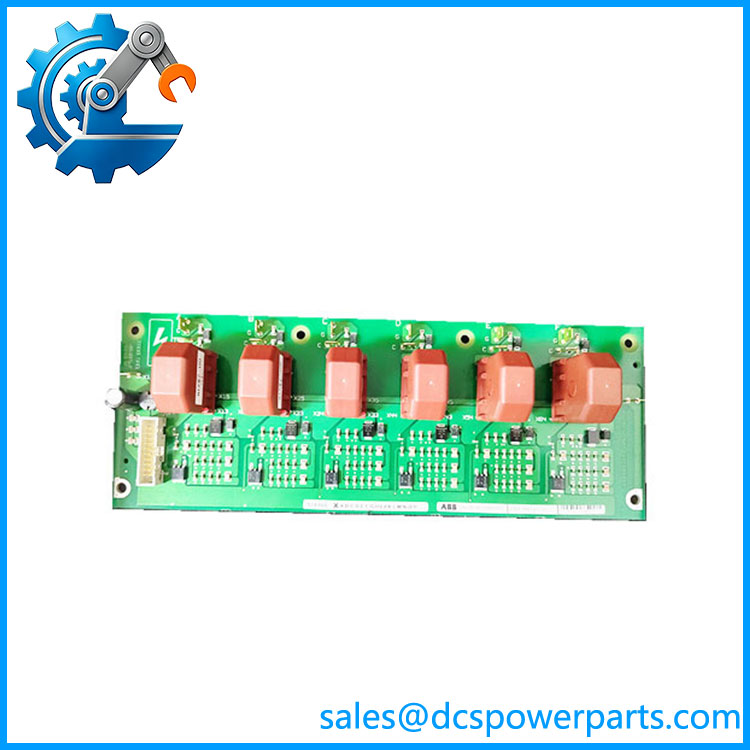

UNS0881A-P,V1 3BHB006338R0001
Related Products
- ABB UNS0881A-P,V2 — 3BHB006338R0002 — V2 version of the same Gate Driver Interface family. It is the closest revision-related alternative, but V1-to-V2 interchangeability must be confirmed against the specific UNITROL configuration. ABB lists both as separate GDI versions.
- ABB UNS0880A-P,V1 — 3BHB005922R0001 — Converter Interface board in the UNITROL 5000 family. It performs a converter-interface function rather than the specific gate-driver-interface role of UNS0881A-P.
- ABB UNS0880A-P,V2 — 3BHB005922R0002 — V2 Converter Interface counterpart. Useful when maintaining compatible UNITROL 5000 converter-control hardware, not as a direct substitute for the UNS0881A-P GDI.
- ABB UNS0882A-P,V1 — 3BHB006309R0001 — Power Signal Interface board. It belongs to the same UNITROL hardware ecosystem but handles a different signal-interface function.
- ABB UNS0883A-P,V1 — 3BHB006208R0001 — Fast I/O board. It provides fast I/O functionality rather than gate-driver interfacing.
- ABB UNS0890A01 — 3BHE018297R0001 — Snubber Control Interface for a specified voltage level. This is associated with converter protection/control circuitry and is not a GDI replacement.
- ABB UNS0890A01 — 3BHE018297R0003 — Higher-voltage Snubber Control Interface variant. Selection depends on the converter voltage configuration.
- ABB UNS0881A-P,V1 — 3BHB006338R0001 — Exact V1 GDI board requested here. Use the complete identification when sourcing an exact spare.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Do not confuse V1 and V2.
ABB identifies 3BHB006338R0001 as V1 and 3BHB006338R0002 as V2.
How to avoid it: Match the complete Product ID and revision. Do not order “” without specifying V1 when the installed board is 3BHB006338R0001.
⚠️ Do not mistake a GDI board for a generic control PCB.
Its position in the excitation signal chain matters. Incorrect substitution can affect converter firing even when the board physically fits.
How to avoid it: Confirm the UNITROL system generation, board location, mating connectors, and associated converter hardware before installation.
⚠️ Inspect the signal path, not just the PCB.
A GDI-related fault can originate from upstream control signals, connectors, optical interfaces, wiring, or the downstream power-converter gate circuit.
How to avoid it: Troubleshoot the complete command-to-gate path using the approved UNITROL service procedure. Avoid probing live converter circuitry without the proper isolation and test equipment.
Frequently Asked Questions (FAQ)
What is ABB ,V1 3BHB006338R0001?
It is a Gate Driver Interface (GDI) PCB used in ABB UNITROL excitation equipment. ABB’s spare-parts documentation specifically lists 3BHB006338R0001 / UNS 0881 A-P V1 as a Gate Driver Interface.
Is 3BHB006338R0001 part of UNITROL 6000?
Yes. ABB’s UNITROL 6000 spare-parts documentation identifies 3BHB006338R0001 as UNS 0881a-P V1 GDI — Gate Driver Interface V1.
What does the GDI board do?
The GDI forms part of the interface between the excitation controller and the power-converter gate-drive circuitry. In practical terms, it belongs to the signal path that enables controlled switching of the excitation converter.
Can I replace 3BHB006338R0001 with 3BHB006338R0002?
Not automatically. ABB identifies the first as V1 and the second as V2. Even though both are GDI boards in the family, revision-specific hardware and system configuration must be checked before substitution.
What should I verify when buying a replacement ,V1?
Check:
- Exact Product ID: 3BHB006338R0001.
- Board marking: .
- PCB revision and physical condition.
- Connector and interface condition.
- UNITROL system model.
- Existing board location.
- Functional test documentation.
- Whether the supplied item is a complete GDI PCB assembly.
ABB’s product record explicitly describes the item as a completed GDI PCB, so procurement should distinguish the complete assembly from individual PCB components.
How should a refurbished 3BHB006338R0001 be tested?
At minimum, verify correct identification, visual condition, connector integrity, power-up behavior, diagnostics, and communication/interface behavior in a suitable test environment. For an excitation-system spare, the meaningful test is the board’s behavior within the appropriate control architecture—not simply whether an LED illuminates.
