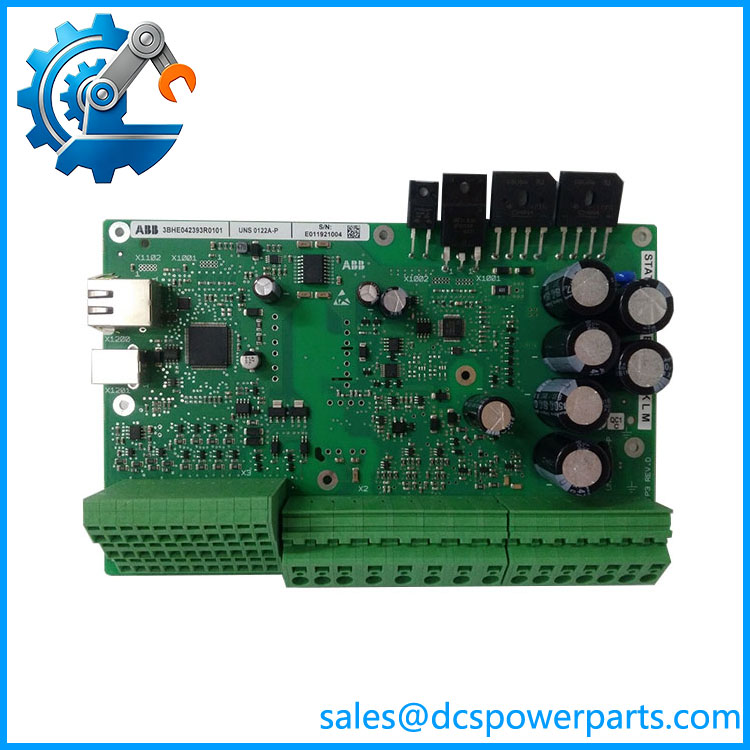

ABB UNS0122A-P 3BHE042393R0101 Control Module

Key Technical Specifications

ABB identification data available for this part gives UNS0122A-P as the type designation and 3BHE042393R0101 as the product ID, with the catalog description explicitly stating Control Module. Supplier documentation also identifies it as a plug-in/rack-mounted module powered through the system backplane.

Product Introduction

The ABB UNS0122A-P 3BHE042393R0101 is an ABB control module intended for integration into a larger automation or power-control system. Its published catalog identification is straightforward, but detailed electrical and interface specifications are not sufficiently established in the available public documentation to justify assigning a generic CPU, I/O, or communications role to the module.

For procurement and maintenance, the complete 3BHE042393R0101 number should be treated as the primary identification. Similar ABB UNS-series modules can have different system functions, so replacement should be based on the installed cabinet architecture, mating connectors, firmware revision, and equipment documentation.

UNS0122A-P 3BHE042393R0101

Application Scenarios & Field Pitfalls — Engineer’s Perspective

Engineering Pain Point

The main risk with the UNS0122A-P is incorrect functional identification. Several secondary sources describe the same part as a processor, output module, configuration server, or generic interface module; these descriptions conflict with each other.

Typical Applications

• ABB Control Systems — Used as a modular control component within an ABB system architecture.
• Power Electronics Systems — Some supplier documentation associates the part with ABB power-electronics and excitation applications; confirm the actual host system before relying on this classification.
• Legacy System Maintenance — Suitable as a like-for-like spare where the installed system documentation specifies 3BHE042393R0101.
• Control Cabinet Spare Stock — Useful for maintaining an installed system where the exact hardware revision is difficult to source.

Technical Pitfalls to Avoid

1. Do not call it an AC 800M CPU without evidence.
   One secondary source labels it an AC 800M processor, but other sources identify it as a generic ABB control module. The exact host platform must be confirmed before using it as a CPU replacement.
2. Do not infer the I/O function from the part number.
   A listing describes the as an output module, while other sources identify it as a control/interface or processor module. These conflicting descriptions make a nameplate and system drawing particularly important.
3. Match the complete ABB product number.
   Use / 3BHE042393R0101 together when sourcing. Do not approve a replacement based only on “UNS0122” or a visually similar UNS-series board.
4. Verify firmware and system revision.
   If the module participates in a controller or power-electronics architecture, firmware compatibility should be checked before commissioning. Physical fit does not establish functional interchangeability.

Related Products

• ABB UNS0119A-P — Related UNS-series control hardware; functional compatibility must be verified.
• — Exact control module covered by this page.
• ABB PM861K01 — AC 800M processor unit kit; a fundamentally different ABB controller product and not a direct substitute.
• ABB PM864AK01 — AC 800M processor unit kit used in a different controller architecture.
• ABB CI-series communication modules — Used for specific communication functions rather than serving as a generic replacement for .
• ABB UNITROL control hardware — Relevant only where the installed is confirmed within an excitation/power-control architecture.

Procurement Check

Before purchasing a 3BHE042393R0101, verify:

• Exact type designation:
• ABB Product ID: 3BHE042393R0101
• Existing system/platform
• Hardware revision
• Firmware revision
• Backplane/rack position
• Connector arrangement
• Host-system wiring
• Existing configuration or parameter backup

Engineering recommendation: treat this as an ABB control module with system-specific functionality, rather than assuming it is a CPU or output card. The available public records do not establish enough detail to safely publish voltage, I/O count, communication protocol, or processing specifications as universal values.
