ABB UNITROL 1020-FULL 3BHE030579R0106 Digital Automatic Voltage Regulator

Description

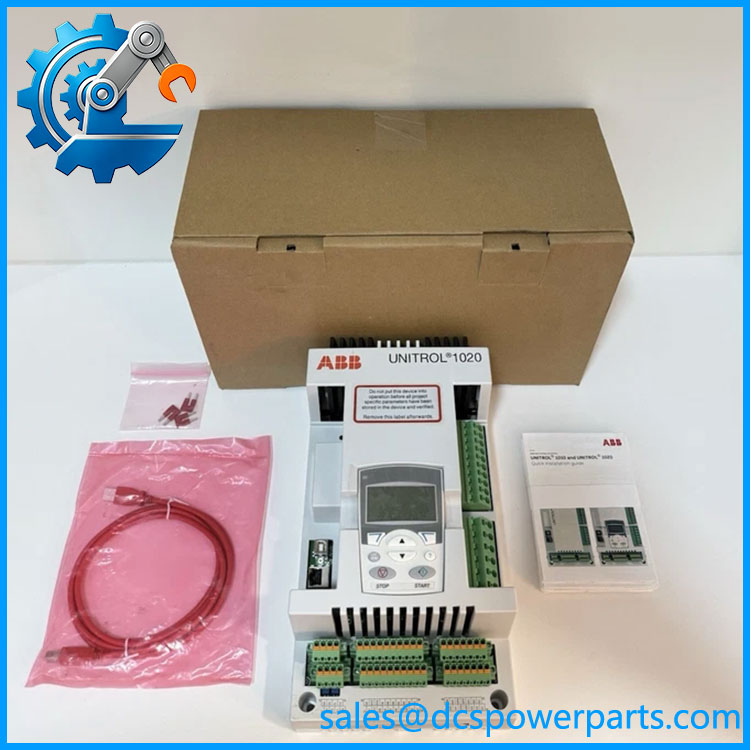

ABB UNITROL 1020-FULL 3BHE030579R0106

Product Introduction

ABB UNITROL 1020-FULL 3BHE030579R0106 is a digital automatic voltage regulator designed for excitation control of small and medium synchronous generators and industrial synchronous machines. It belongs to ABB’s UNITROL 1000 family and extends the UNITROL 1010 platform with excitation-current capability up to 20 A DC continuous. The regulator combines measurement, control, limiting, monitoring, communication, and local operating functions in a compact excitation-control platform. ABB specifies the UNITROL 1020 for demanding industrial, marine, diesel, and gas-generator applications, while the broader UNITROL 1000 family also covers hydro, traction, wind, and synchronous-motor applications.

The ABB UNITROL 1020-FULL 3BHE030579R0106 configuration is particularly relevant where the excitation controller needs more than basic voltage regulation. ABB documents AVR, field-current regulation, power-factor and reactive-power control, limiter functions, rotating-diode monitoring, automatic synchronization, data logging, event logging, and redundant-channel capabilities within the UNITROL 1020 platform. The full-function implementation can also support PSS2C functionality in accordance with IEEE 421.5:2016 when the applicable software configuration is installed.

For replacement procurement, ABB UNITROL 1020-FULL 3BHE030579R0106 should be treated as a complete excitation-control configuration rather than a generic PLC module. The exact hardware identifier, installed firmware, software options, channel configuration, generator parameters, and commissioning data all matter. ABB provides the CMT1000 commissioning and maintenance environment for configuration, diagnostics, event/data-log handling, and tuning. The regulator also provides local HMI functions and Ethernet connectivity for engineering and Modbus TCP integration.

Technical Specifications

ABB’s published material confirms the 20 A continuous excitation-current rating, dual-channel capability, event/data logging, local HMI, communication functions, and UNITROL 1020 FULL functionality. Exact electrical input ranges and environmental limits should be checked against the applicable hardware revision and project configuration rather than copied from generic reseller listings.

UNITROL 1020-FULL 3BHE030579R0106

Main Features and Engineering Considerations

Full excitation-control functionality

The UNITROL 1020-FULL is considerably more than a voltage-sensing regulator. The control platform supports voltage regulation together with field-current, reactive-power, and power-factor operating modes. Limiter functions are part of the control strategy, allowing excitation operation to be coordinated with generator operating limits. This makes the controller suitable for applications where the AVR must participate in a larger generator control scheme rather than operate as an isolated voltage regulator.

Dual-channel capability

One important field consideration is the distinction between the physical controller and the overall excitation architecture. ABB states that UNITROL 1020 supports redundant-channel operation with a main and redundant channel and bumpless transfer. A replacement unit therefore should not be evaluated only by checking whether the front-panel model number says “UNITROL 1020.” The installed software configuration, channel assignment, parameters, and associated power circuitry need to match the existing system.

Diagnostics and commissioning

ABB provides a local HMI, event logger, data logger, and CMT1000 commissioning environment. The documented event logger stores up to 500 events, while the data logger can record up to 12 signals with trigger-based acquisition. These functions are useful during generator commissioning because excitation instability, limiter activation, field-current behavior, and synchronization events can be investigated from recorded operating data instead of relying only on instantaneous measurements.

Communication and plant integration

The controller provides Ethernet connectivity, including Modbus TCP, while the UNITROL 1000 platform also supports additional communication interfaces depending on configuration. When integrating the AVR into a DCS or SCADA system, confirm the actual protocol configuration and register mapping rather than assuming every UNITROL 1020 installation exposes the same points.

Procurement and replacement risk

For 3BHE030579R0106, the complete ABB identifier should be preserved on the purchase order and inspection report. Do not substitute another UNITROL 1020 article merely because the base model is identical. ABB has multiple UNITROL 1020 configurations, and the FULL/BASIC distinction is functionally significant. The presence of the correct hardware alone also does not guarantee a successful replacement if the existing generator parameters, firmware, software options, channel architecture, or commissioning files are different.

Application Scenarios

Industrial Generator Sets

UNITROL 1020 is designed for excitation control of synchronous generators used in industrial power-generation systems. It can regulate generator voltage and support reactive-power or power-factor control where the application requires coordinated excitation management.

Marine Power Systems

ABB identifies marine electrical propulsion and auxiliary power as UNITROL 1000 applications. The compact construction, communication functions, and dual-channel capability make the platform applicable to generator excitation systems where cabinet space and availability are important engineering constraints.

Diesel, Gas and Hydro Generation

The UNITROL 1000 family is used with generator systems driven by diesel engines, gas turbines, steam turbines, and hydro turbines. The exact excitation arrangement must still be matched to the generator, exciter, field-current requirements, and plant protection scheme.

Synchronous Motors

UNITROL 1020 also supports synchronous-machine applications. ABB specifically documents Motor Excitation Start functionality, allowing the controller to participate in the excitation sequence during fixed-speed synchronous-motor starting.

Engineer’s Guide: Field Pitfalls

1. Do not treat the part number as a complete commissioning dataset.
The replacement controller may be electrically correct but still require the original generator parameters, limiter settings, calibration, and control configuration.

2. Check BASIC versus FULL configuration.
ABB lists UNITROL 1020 BASIC as a separate article, while UNITROL 1020 FULL provides the broader functionality used in ABB’s full-function systems.

3. Verify the channel architecture.
A single-channel replacement should not be assumed suitable for a dual-channel installation. Check the redundant-channel design and transfer logic before energization.

4. Preserve the existing CMT1000 configuration.
Before replacing a functioning controller, back up configuration data and record firmware/software information where possible.

5. Check field-current requirements.
The 20 A continuous rating identifies the UNITROL 1020 controller capability, but it does not by itself define the complete excitation-system rating. Power components, exciter characteristics, generator field resistance, cooling, and protection settings remain system-level considerations.

6. Verify communication mapping.
Modbus TCP availability does not mean that every installation has the same register map. Compare the actual DCS/SCADA configuration with the project documentation.

7. Inspect terminal wiring carefully.
ABB separates power/measurement connections from I/O connections and uses spring terminals. During replacement, verify terminal numbering, shield connections, polarity, sensing circuits, and excitation wiring against the applicable drawing.

Frequently Asked Questions

What is ABB UNITROL 1020-FULL 3BHE030579R0106?

It is a digital automatic voltage regulator and excitation controller in ABB’s UNITROL 1000 family. UNITROL 1020 is intended for small and medium synchronous generators and industrial synchronous machines, with continuous excitation-current capability up to 20 A DC.

Is 3BHE030579R0106 a PLC module?

No. It is an excitation-control/automatic-voltage-regulator device. It performs generator excitation regulation and related control, limiting, monitoring, and communication functions rather than acting as a conventional PLC I/O module.

Does UNITROL 1020 support Modbus TCP?

Yes. ABB documents Ethernet connectivity and remote access over Modbus TCP for the UNITROL 1000 platform.

Does UNITROL 1020 support redundant operation?

Yes. ABB documents dual-channel support and bumpless transfer between a main and redundant channel. The exact implementation depends on the excitation-system architecture and configuration.

What software is used for commissioning?

ABB’s CMT1000 commissioning and maintenance tool is used for configuration and service activities. ABB documentation also identifies USB and Ethernet access for commissioning and data retrieval.

Is 3BHE030579R0106 interchangeable with another UNITROL 1020?

Not automatically. The UNITROL 1020 family contains different configurations and ABB identifies separate BASIC and FULL variants. Before substitution, verify hardware article number, firmware, installed options, channel architecture, generator parameters, I/O configuration, and communication setup.

Procurement Note

For a replacement purchase, specify ABB UNITROL 1020-FULL, 3BHE030579R0106 exactly as marked on the equipment. Request confirmation of the hardware revision, firmware/software version, FULL-function configuration, channel configuration, and available configuration backup. For used or surplus equipment, functional testing should include controller startup, HMI operation, measurement inputs, excitation-control outputs, communication, limiter behavior, event logging, and any applicable dual-channel transfer functions.

The most important point is that the UNITROL 1020 is part of an excitation system, not an isolated automation card. A technically similar UNITROL unit can still require different commissioning parameters or system interfaces. ABB’s current documentation continues to identify UNITROL 1020 as a core UNITROL 1000 AVR platform and UNITROL 1020 FULL as the full-function controller used in its compact excitation systems.
