Description

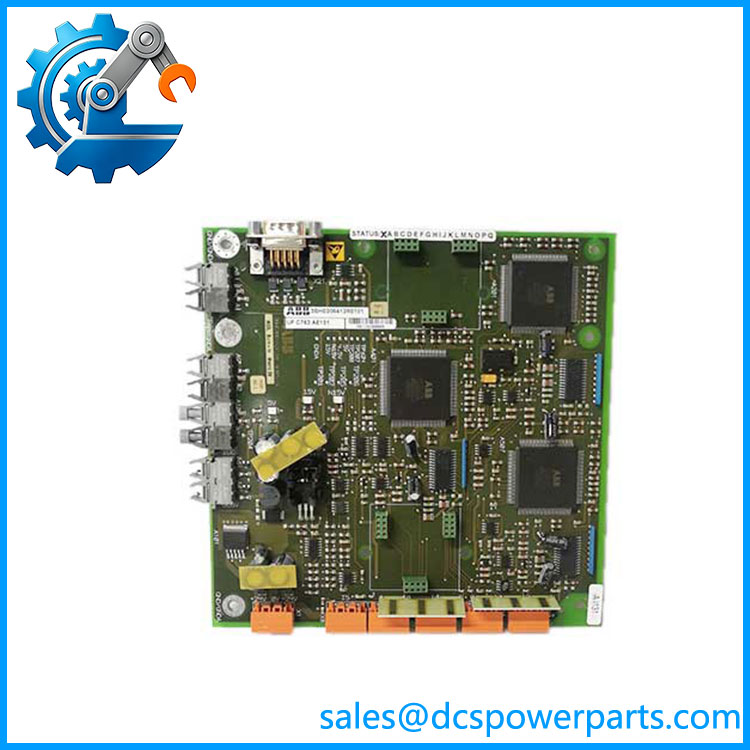

ABB UFC762AE101 3BHE006412R0101 | CVMI Board for ABB Medium-Voltage Drives
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Type Designation | UF C762 AE101: CVMI |
| Product ID | 3BHE006412R0101 |
| Common Model Reference | UFC762AE101 |
| Product Name | CVMI-BOARD, COATED |
| Product Type | Drive circuit / control PCB |
| Primary Application | ABB medium-voltage inverter drives |
| Supported Drive Families | ACS2000, ACS5000 Water Cooled, ACS6000 |
| Board Construction | Coated |
| Net Weight | 0.3 kg |
| SVA Subprint | Not included |
| SCA Subprint | Not included |
| Former Product IDs | 3BHE006412R0001, HE006412R0001, HE006412R0101 |
The ABB product record identifies the item as UF C762 AE101: CVMI; CVMI-BOARD,COATED and lists a 0.3 kg net weight. The same documentation gives the older product identifiers and explicitly states that SVA and SCA subprints are excluded.
Product Introduction
The ABB UFC762AE101 3BHE006412R0101 is an ABB CVMI coated circuit board used as a replacement component in medium-voltage inverter drive systems. ABB’s product data identifies it as UF C762 AE101: CVMI and associates the spare part with the ACS2000, ACS5000 Water Cooled, and ACS6000 drive families.
For maintenance teams, the important point is that this is a drive-specific circuit-board spare, not a generic PLC CPU or universal analog I/O module. Replacement should be based on the complete ABB part number, board revision, host drive type, and the exact subprint configuration installed in the original assembly.
UFC762AE101 3BHE006412R0101
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
A failed CVMI board can be difficult to diagnose because symptoms may appear at the drive-control level rather than as an obvious PCB failure. Communication, monitoring, protection, or control faults should therefore be correlated with the drive’s event history, cabinet wiring, associated boards, and board-level diagnostics before replacing the assembly.
Typical Applications
- ABB ACS2000 medium-voltage drives — used as a documented spare-part board for this drive family.
- ABB ACS5000 Water Cooled drives — listed by ABB’s spare-parts data as an applicable product family.
- ABB ACS6000 drives — another documented application for the CVMI board.
- Medium-voltage drive maintenance and planned shutdowns — suitable where the installed board must be replaced with an exact part-number match.
Technical Pitfalls to Avoid
- Do not treat UFC762AE101 as a generic PLC control module.
Some third-party listings describe this part as a general-purpose controller, servo module, or multifunction I/O device. Those descriptions are not supported by the ABB product record. ABB identifies it specifically as a CVMI board. - Check the complete assembly before ordering.
ABB explicitly states that the SVA and SCA subprints are not included. If the failed assembly contains these additional boards, ordering only 3BHE006412R0101 may not reproduce the original configuration. - Match the host drive and revision, not just the physical PCB.
The part is documented across multiple ABB medium-voltage drive families. Confirm whether the installed equipment is ACS2000, ACS5000 Water Cooled, or ACS6000 and compare the original board identification, revision markings, connectors, and associated subprints before commissioning.
Related Products
- ABB ACS2000 — Medium-voltage drive platform documented as a host application for the CVMI board.
- ABB ACS5000 Water Cooled — Medium-voltage drive family where the 3BHE006412R0101 spare is also listed.
- ABB ACS6000 — Another documented host drive for the UFC762AE101 CVMI board.
- ABB UF C760 BE142 — ABB drive interface board from the same broader UF C-series component family; its function differs from the CVMI board.
- ABB UF C760 BE143 — Drive interface board used for another control/interface function and should not be substituted without an equipment-level cross-reference.
- ABB UF C760 BE145 — Phase-modulator/interface-related board in the same ABB drive electronics ecosystem.
- ABB UF C765 AE102 — EAF coated board used in ABB drive electronics; different board function and part number.
- ABB XV C770 BE101 — HVD coated board associated with ABB drive electronics; not a direct CVMI replacement.
Procurement Check
Before purchasing an ABB UFC762AE101 3BHE006412R0101, verify:
- Exact ABB Type Designation: UF C762 AE101: CVMI
- Exact Product ID: 3BHE006412R0101
- Original board revision and hardware markings
- Host drive: ACS2000, ACS5000 Water Cooled, or ACS6000
- Presence and part numbers of the SVA and SCA subprints
- Connector arrangement and physical board configuration
- Coated-board requirement
- Firmware/configuration requirements of the host drive
- Whether the replacement is a complete board or board-only supply
Recommended procurement description:
ABB UF C762 AE101 / 3BHE006412R0101 CVMI Board, Coated Printed Circuit Board for ABB / Water Cooled / Medium-Voltage Drives; SVA and SCA Subprints Not Included.
The key procurement distinction is that 3BHE006412R0101 is a specific ABB CVMI drive board, not a generic controller or I/O module. The exact drive family and associated subprint configuration should be confirmed before replacement.
