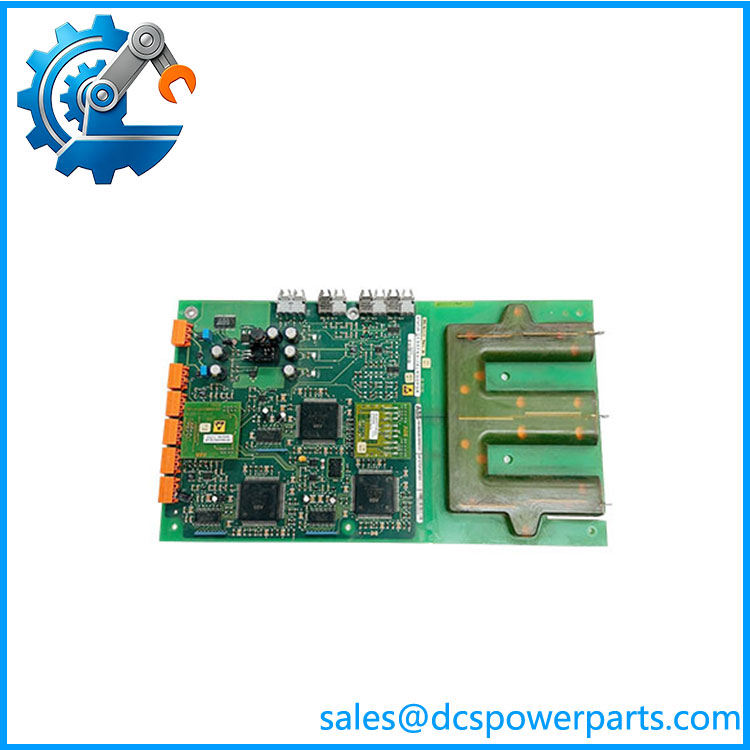

ABB UFC721AE101 | 3BHB002916R0101 Power Control Board

Description

Key Technical Specifications

Important specification note: Some secondary sources claim that UFC721AE101 is an 8-channel differential analog input module with 16-bit resolution, 4–20 mA/0–20 mA and voltage inputs. Other sources describe the same part number as a thyristor firing-pulse board or soft-starter control board.

I would not publish those analog-input or soft-starter specifications as confirmed facts for procurement. The identification UFC721AE101 / 3BHB002916R0101 is clear; the exact equipment function needs to be confirmed against the original ABB assembly.

Application Scenarios & Pain Points

The real procurement problem with older ABB UFC boards is often identification, not availability. A seller may recognize the part number but assign it to the wrong application, leaving the buyer with a board that looks correct yet belongs in a different control architecture.

• ABB power-electronics assemblies: UFC721AE101 is identified as a main circuit interface board in available technical records.
• Converter and drive maintenance: The UFC700 designation places the board within ABB’s older power-electronics hardware ecosystem.
• Legacy equipment replacement: Useful when the installed board carries the exact UFC721AE101 / 3BHB002916R0101 identification.
• Control and semiconductor interface work: Several technical references associate UFC721AE101 with thyristor/power-electronics control functions, although the precise role depends on the host assembly.

Field note: Before condemning the board, inspect the connector pins, solder joints, electrolytic capacitors, and areas around heat-producing components. A board can look clean from the front while showing heat discoloration near the rear-side power interface.

Brief Field Case

A common legacy-drive failure begins with an intermittent control fault after the cabinet has been running for years. The technician swaps the interface board and the symptom remains. A later inspection finds oxidation at a connector and an unstable upstream control supply. The lesson is simple: verify the interface environment before assigning every fault to the PCB.

UFC721AE101

Related Products

• ABB / 3BHB002916R0101 — Subject board. Match the complete designation for replacement; do not procure by “UFC721” alone.
• ABB UFC719AE101 / 3BHB003041R0101 — Related UFC-family power-electronics board. Similar family designation, but different board identification and function; not a direct substitute without engineering verification.
• ABB UFC718AE01 / HIEE300936R0101 — Related UFC-series power-electronics hardware. Useful as adjacent system hardware, but its interface and application differ from UFC721.
• ABB UFC765AE102 / 3BHE003604R0102 — Another UFC-family power-electronics board. Associated with an EAF coated-board application and should not be treated as a UFC721 replacement.
• ABB KUC720AE01 / 3BHB003431R0101 — Legacy ABB power-electronics/DC spindle-drive hardware. Different functional position and application.
• ABB KUC755AE105 / 3BHB005243R0105 — KUC-series power-control hardware used in ABB converter systems. Related technology family, but not a plug-compatible UFC721 substitute.
• ABB 5SHY-series IGCT devices — Power semiconductor components used in ABB converter assemblies. They form part of the power stage rather than replacing the UFC721 control/interface board.
• ABB GVC-series converter hardware — Related ABB power-conversion assemblies frequently encountered with UFC/KUC control electronics. Exact board compatibility depends on the converter configuration.

The Engineer’s Guide: Field Pitfalls to Avoid

WARNING 1 — Do not trust the product description without checking the board.

The same identification has been described as an analog input module, controller, soft-starter control unit, and main circuit interface board in different secondary records.

How to avoid it: Photograph the original PCB, nameplate, connector arrangement, and any secondary ABB identification numbers before ordering.

WARNING 2 — Do not substitute another UFC board because the connector looks similar.

UFC718, UFC719, UFC721, and UFC765 belong to related ABB hardware families, but the electrical interfaces and application positions are not necessarily interchangeable.

How to avoid it: Compare the complete part number, PCB revision, board location, connector pinout, host converter model, and control architecture.

WARNING 3 — Do not energize a replacement before checking the surrounding power electronics.

If a semiconductor, gate circuit, control supply, or interface cable caused the original failure, a replacement board can be damaged during the first power-up.

How to avoid it: Check control-supply rails, connector insulation, semiconductor condition, grounding, and visible thermal damage before applying full operating voltage.

Frequently Asked Questions (FAQ)

What is ABB 3BHB002916R0101?

It is an ABB UFC700-series power-electronics board, with 3BHB002916R0101 as the associated product identification. Available technical records describe it as a main circuit interface board.

Because secondary sources disagree about the detailed function, the host equipment should be identified before assigning a more specific application description.

Is an analog input module?

One secondary listing calls it an 8-channel differential analog input module and provides detailed analog-input specifications. However, another listing identifies the same part as a main circuit interface board, while other records associate it with thyristor control hardware.

For procurement, I would not classify it as a generic analog input module unless the installed ABB documentation confirms that application.

Is a thyristor firing board?

Some technical listings describe as a thyristor firing-pulse trigger board for ABB UNITROL excitation hardware. That is plausible within ABB’s power-electronics product ecosystem, but the available evidence does not establish that every belongs to that exact application.

Match the complete board identification and host equipment before making that determination.

Can replace UFC719AE101?

Not automatically. UFC719AE101 and are different ABB part numbers. Similar UFC-family construction does not establish electrical or firmware compatibility.

Before substitution, compare:

• PCB revision
• Connector pinout
• Host converter
• Control-signal requirements
• Board position
• Application firmware/configuration
• ABB equipment documentation

What should I check when receiving a refurbished ?

For a critical spare, request:

1. Actual-board photographs.
2. Confirmation of .
3. Confirmation of 3BHB002916R0101.
4. PCB revision and serial information.
5. Connector and pin inspection.
6. Power-supply test.
7. Relevant signal/interface testing.
8. Extended powered test where appropriate.
9. Written test report.
10. Warranty terms.

A visual inspection alone is not sufficient for a board that sits inside a power-electronics control path.

Does 3BHB002916R0101 identify the exact replacement?

It is the principal ABB identification associated with in the available records.

For a shutdown-critical purchase, I would still match the complete designation plus PCB revision and host equipment model. That prevents a similar-looking revision from entering the spare-parts pool.

What condition should I specify when purchasing ?

For a critical production spare, specify one of these clearly:

• Factory Sealed / New Surplus — preferred when available.
• Fully Tested Refurbished — acceptable when accompanied by a functional test report.
• Used Untested — suitable mainly for repair evaluation, not as a ready-to-install shutdown spare.

For refurbished stock, ask specifically whether the board was electrically tested rather than merely powered on and visually inspected.
