ABB UDD406A | ABB Control Unit | Legacy Drive System Replacement

Description

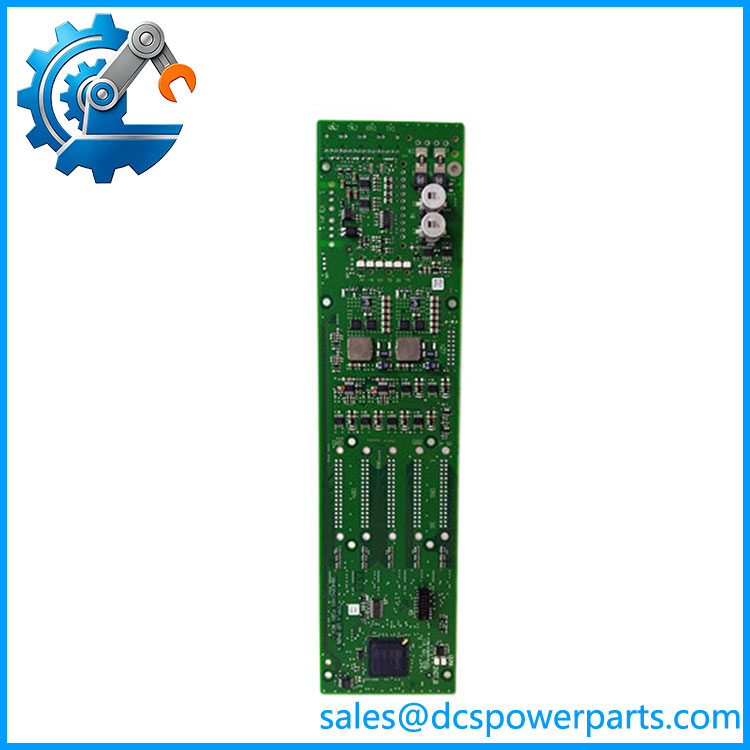

ABB UDD406A | 3BHE041464R0101 / 3BHE041465P201 | Control Module

Key Technical Specifications

Important Identification Note

There is a significant source conflict surrounding UDD406A. ABB-related product references identify 3BHE041464R0101 as UD D406A and describe it as a digital-input module, while another ABB-related reference identifies 3BHE041465P201 as a UDD406A control unit.

A third-party listing also describes 3BHE041465P201 as an excitation central processor, but this description is not sufficiently supported by an ABB primary datasheet to treat it as definitive.

Product Introduction

The ABB UDD406A is an ABB electronic control/interface assembly used in specialized industrial automation and power-control equipment. Unlike a standard ABB S800 I/O designation, the UDD406A references found online do not provide one unambiguous functional identity; the complete material number is therefore essential for determining whether the unit is an I/O/interface board or a control/processor assembly.

For procurement and field replacement, the safest approach is to match the complete ABB material number, PCB revision, connector layout, and host equipment. A physically similar with a different material-number suffix should not be assumed interchangeable.

UDD406A

Application Scenarios & Field Pitfalls — Engineer’s Perspective

Engineering Pain Point

A replacement can easily become a wrong-part problem if purchasing records contain only the abbreviated model designation. The available evidence shows that is associated with at least two different ABB material numbers and potentially different functions.

Typical Applications

• ABB industrial power-control systems
• ABB drive and converter equipment
• Specialized ABB control and interface assemblies
• Legacy ABB automation installations

Technical Pitfalls to Avoid

1. Verify the complete material number.
   The distinction between 3BHE041464R0101 and 3BHE041465P201 is critical. They should not be treated as interchangeable simply because both are labeled .
2. Do not use generic S800 specifications.
   One third-party page incorrectly characterizes as an S800 digital-input module with six 24 VDC inputs, while other references associate the same designation with a control unit. Those specifications should not be used for procurement without confirmation.
3. Match the host equipment and revision.
   Before installation, record the original board’s material number, revision, connector arrangement, firmware, and host cabinet/control platform.

Related Products

• ABB — 3BHE041464R0101 — Reference associated with the digital-input/interface version.
• ABB — 3BHE041465P201 — Reference associated with the control-unit version.
• ABB UAD154A — 3BHE026866R0101 — ABB control-board assembly from a different product family.
• ABB UCD208A101 — 3BHE020018R0101 — Specialized ABB control/processor board.
• ABB UCD216A — 3BHE027632R0101 — ABB power-electronics control board.
• ABB UAD206A101 — Related ABB control electronics designation.
• ABB UAD149 — Related ABB control/excitation electronics designation.

Procurement Check

Before approving an , verify:

• Exact designation:
• Complete ABB material number
• 3BHE041464R0101 or 3BHE041465P201
• PCB revision
• Host ABB equipment model
• Cabinet/control-system type
• Connector arrangement
• Firmware/configuration
• I/O requirements
• Communication interfaces
• Original nameplate
• Replacement unit condition and test record

Recommended procurement description when the material number is not yet confirmed:

ABB Control / Interface Module — Complete ABB Material Number and Hardware Revision to Be Verified Against Original Unit Before Replacement.

Engineering conclusion: Do not list as a simple “digital input module” or “processor module” on a product page unless the complete material number is known. The current evidence supports two distinct references, and the material-number distinction is essential for avoiding a costly field mismatch.
