ABB TC512V1 3BSE018059R1 | RS485 Twisted Pair Modem | Advant Communication
Key Technical Specifications
| Parameter | Specification |
|---|---|
| ABB Product ID | 3BSE018059R1 |
| ABB Type Designation | TC512V1 |
| Product Description | RS485 Twisted Pair Modem |
| Product Type | Communication Module |
| Communication Interface | RS485 |
| Transmission Medium | Twisted-pair cable |
| Module Family | TC500 |
| Application Family | ABB Advant / AF100 communication |
| Exchange Part Number | EXC3BSE018059R1 |
| Net Depth / Length | 117 mm |
| Net Height | 45 mm |
| Net Width | 148.5 mm |
| Catalog Classification | 85389091 |
The dimensional data above comes from an ABB product-detail document reproducing the product record.
Product Introduction
The ABB TC512V1 3BSE018059R1 is an RS485 twisted-pair modem used within ABB’s legacy Advant automation communication architecture. Its documented function is communication over twisted-pair media, making it a system-level interface component rather than a PLC CPU, I/O module, or general-purpose serial converter.
ABB’s spare-parts documentation lists the TC512V1 alongside other Advant communication equipment, including the TC513V1 TWP-to-coax modem, TC516 twisted-pair modem for redundant AF100, TC520 system status collector, and TC562 short-distance modem. That context is useful when determining the correct replacement rather than selecting a modem solely by the RS485 label.

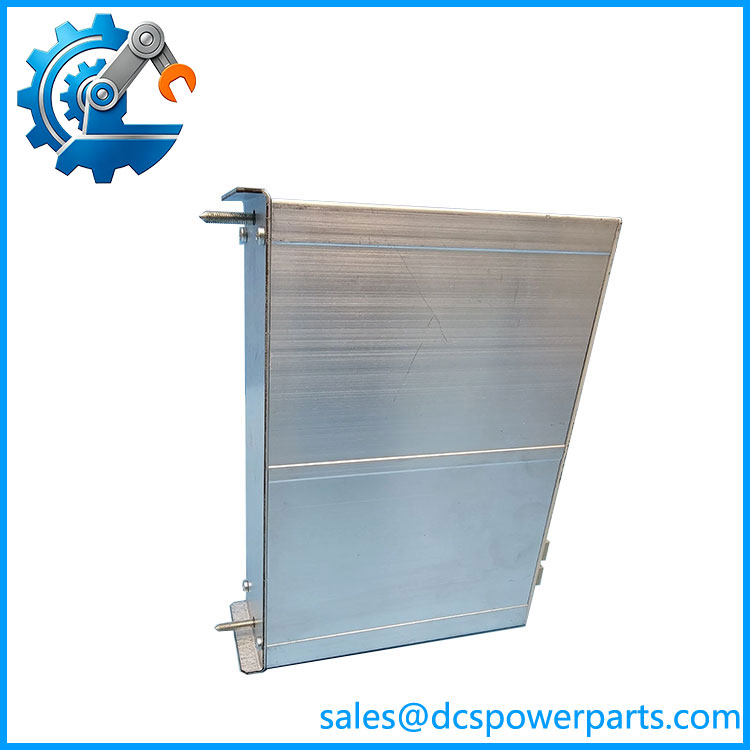

TC512V1 3BSE018059R1
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
The difficult part with the TC512V1 is usually not identifying RS485. The real issue is determining which Advant communication topology the existing modem belongs to, what it connects to at the opposite end, and whether the replacement must maintain the same physical transmission medium and system architecture.
Typical Applications
- ABB Advant Master communication networks
- AF100-based automation communication
- AC 400-family controller installations
- Legacy ABB process-control systems using twisted-pair communication
- Communication links where an original TC512V1 is being replaced during maintenance
ABB’s spare-parts documentation places within the Advant Master / AC 450 / Advant MOD 300 spare-parts ecosystem.
Technical Pitfalls to Avoid
- Do not treat as a generic converter.
The ABB designation is specifically a Twisted Pair Modem. System compatibility depends on the equipment and communication architecture on both sides of the link. - Do not substitute TC513V1 without checking the physical network.
ABB identifies TC513V1 separately as a TWP-to-coax converter modem. Its communication role and cabling arrangement are different from . - Check redundant AF100 installations carefully.
ABB separately lists TC516 as a twisted-pair modem for redundant AF100 applications. A TC516 and should not be considered interchangeable simply because both use twisted-pair communication. - Reject unverified electrical specifications.
Some current reseller databases publish specific power-supply, baud-rate, and protocol figures that are not present in the ABB product record. For an installed-system replacement, the cabinet drawing, original hardware documentation, and nameplate should take precedence.
Related Products
- TC513V1 — 3BSE018405R1 — TWP-to-coax converter modem; used when the communication architecture requires coaxial conversion.
- TC516 — 3BSE012632R1 — Twisted-pair modem specifically listed for redundant AF100 applications.
- TC520 — 3BSE001449R1 — System Status Collector used within the Advant communication ecosystem.
- TC562 — 3BSC630049R1 — Short-distance modem with 24 VDC designation.
- TC570 — 3BSE001458R1 — MasterFieldbus connection unit.
- TC625 — 3BSE002224R1 — coaxial modem.
- TC630 — 3BSE002253R1 — optical modem.
- RF541 — 3BSE000860R1 — Advant subrack for modem installation.
- SB511 — 3BSE002348R1 — Backup power supply associated with the same legacy Advant hardware ecosystem.
These relationships come from ABB’s Advant Master spare-parts documentation rather than assuming that every TC-series modem is a functional replacement for .
Procurement Check
For a replacement request, specify the complete ABB / 3BSE018059R1 designation. Confirm the existing rack or subrack, connected modem at the opposite end, twisted-pair network arrangement, and whether the installation is standard or redundant .
The strongest identification available is unambiguous: 3BSE018059R1 = = Twisted Pair Modem. ABB also lists EXC3BSE018059R1 as the exchange part number.
For older Advant installations, I would approve a replacement only after matching the full part number and communication topology, not simply because a candidate unit is described as “ modem.”
