Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | TB711F |
| Order Number | 3BDH000365R0001 |
| Product Type | CPU Terminal Base |
| System Platform | ABB Freelance DCS |
| Compatible Controllers | PM 900F series / AC 700F controller systems |
| Power Supply | 24 VDC |
| CPU Slot | 1 |
| Communication Module Slot | 1 coupler slot |
| Ethernet Interface | 1 × RJ45 Ethernet port |
| Field Interface | 1 × Field I/O Bus connection |
| Serial Interfaces | 2 × Serial ports (SER / DIAG) |
| PROFIBUS Interface | PROFIBUS Master connection support |
| Mounting | Controller base mounting |
| Dimensions | Approx. 95.5 × 135 × 75 mm |
| Weight | Approx. 175 g |
| Application | Freelance process control and automation systems |
Product Introduction

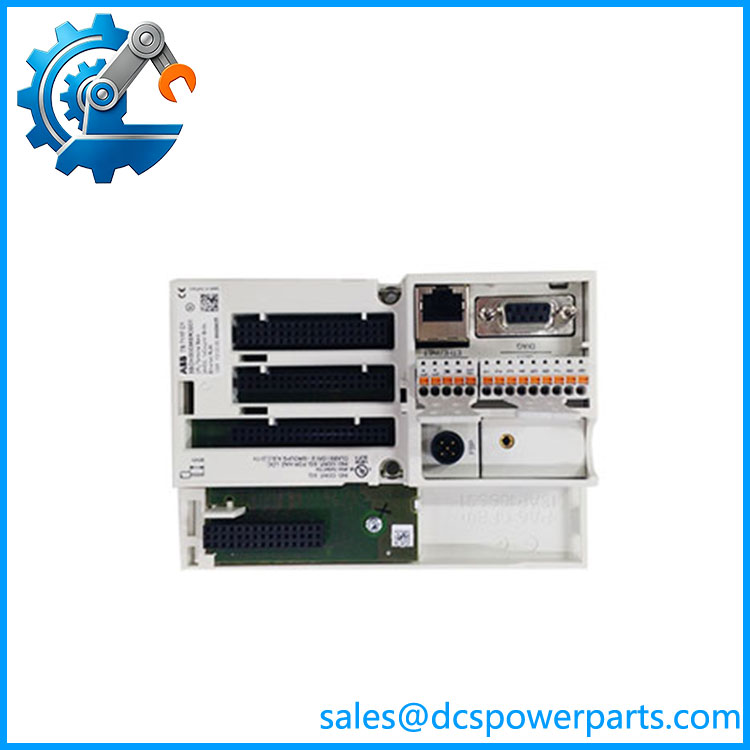

ABB TB711F 3BDH000365R0001 Overview
The ABB TB711F 3BDH000365R0001 is a CPU terminal base designed for ABB Freelance distributed control system architectures. It provides the physical mounting structure and electrical connection interface required for installing controller modules and communication components within the automation cabinet.
The ABB TB711F 3BDH000365R0001 functions as the foundation layer between the CPU module and external system connections. It distributes 24 VDC power, provides Ethernet communication access through an RJ45 interface, and supports field I/O and serial communication connections required by Freelance controller configurations.
The ABB TB711F is commonly used with ABB PM controller families in Freelance DCS installations where compact controller assemblies are required. The terminal base itself does not execute control logic; instead, it provides the electrical backplane and connection infrastructure that allows the CPU and communication modules to operate as part of the complete control system.
During replacement, engineers should verify the installed CPU type, communication module configuration, wiring arrangement, and Freelance engineering database settings. A terminal base replacement requires careful checking because incorrect connection mapping or missing configuration information can prevent the controller from returning to normal operation.
TB711F 3BDH000365R0001
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A Freelance controller cabinet experiences CPU communication loss, unstable Ethernet connectivity, or intermittent field communication faults. The CPU module appears healthy, but the controller base assembly may have damaged connectors or communication interface problems.
The troubleshooting path should include:
- TB711F power supply terminals
- CPU seating condition
- Ethernet link status
- Field I/O bus connection
- Serial communication ports
- Controller configuration
The ABB 3BDH000365R0001 is part of the controller hardware infrastructure, so communication problems may originate from connected modules or wiring rather than the terminal base itself.
Typical Applications
Process Automation Systems
Used for:
- Distributed process control
- Small and medium automation stations
- Plant utility control
Power Generation
Applied in:
- Auxiliary systems
- Balance-of-plant control
- Local automation panels
Chemical and Manufacturing Plants
Used for:
- Skid control systems
- Machine/process integration
- Remote controller stations
Infrastructure Systems
Applied in:
- Water treatment automation
- Building utility control
- Industrial monitoring systems
Technical Pitfalls to Avoid
1. Confirm CPU Compatibility
Before replacement, verify:
- Controller model
- CPU generation
- Firmware compatibility
- Freelance software version
The terminal base is designed for specific controller families and is not interchangeable across all ABB platforms.
2. Check Connector and Wiring Condition
Inspect:
- 24 VDC power terminals
- CPU connector contacts
- Ethernet port condition
- Field I/O bus connections
Mechanical damage or poor contact can create intermittent failures.
3. Preserve Controller Configuration
Before removing the unit, save:
- Freelance project database
- Communication settings
- I/O assignments
- Controller parameters
The provides hardware connectivity but does not store the application program.
4. Verify Communication Modules
If using additional interfaces, confirm:
- PROFIBUS module compatibility
- Coupler slot configuration
- Network addressing
- Fieldbus parameters
Related Products
- ABB PM901F / PM902F / PM904F
Freelance CPU modules designed for installation on terminal bases. - ABB CI773F 3BDH000395R0001
PROFIBUS DP Master communication interface requiring a compatible controller base configuration. - ABB AC700F Controller
Compact Freelance controller platform compatible with TB series terminal bases. - ABB DI724F
Digital input module used within ABB Freelance S700 I/O systems. - ABB AI723F
Analog input module for Freelance distributed I/O applications. - ABB Freelance DCS
Process automation platform using PM controllers, field I/O modules, and communication interfaces.
