Description
Product Overview
The ABB SYN5202A belongs to the SYNCHROTACT 5 family of digital synchronizing equipment and provides two independent synchronization channels in one enclosure. Its core task is straightforward but safety-critical: it measures the reference and incoming voltages, compares frequency and phase angle, checks whether configured paralleling conditions are satisfied, and generates the command required to close the generator or system breaker at an appropriate point. ABB identifies SYN 5202 as a dual-channel device, with the two channels implemented using different hardware/software structures.
For generator applications, the ABB SYN5202A sits between the electrical measurements and the breaker-control process. It can be used for automatic synchronization and paralleling, with configurable parameters for slip, voltage difference, angle window, minimum/maximum voltage, and paralleling timing. ABB documentation lists a configurable paralleling time from 0 to 990 ms, a 1–99° angle limit range, and a maximum voltage-difference setting up to 40% of nominal value.
The ABB SYN5202A is therefore not a conventional PLC module or excitation regulator. It is a dedicated power-system synchronization device. That distinction matters during replacement because the correct voltage transformer/PT wiring, breaker command circuit, nominal-frequency configuration, and synchronization parameters must be preserved. ABB documentation also distinguishes SYN 5202 from the SYN 5302 redundant arrangement: SYN 5302 contains two SYN 5202-class dual-channel systems, providing four synchronization channels in total.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product Family | SYNCHROTACT 5 |
| Model | SYN5202A |
| Product Type | Automatic Synchronizing Device |
| Functional Type | SYN 5202 |
| Synchronization Channels | 2 |
| Channel Architecture | Two independent channels |
| Primary Function | Automatic synchronization / paralleling |
| Measurement Inputs | U1, U2, f1, f2 |
| Nominal Frequency | 50/60 Hz or 16⅔ Hz |
| Nominal Voltage Setting | 50–130 VAC |
| Voltage Matching | Adjustable; up to +12% range |
| Angle Matching | Up to ±180° |
| Paralleling Time | 0–990 ms |
| Paralleling Command Duration | 50–990 ms |
| Monitoring Time | 0–99 s |
| Slip Limit | 0–6% for channel 1 configuration |
| Angle Limit | 1–99° for applicable channel |
| Maximum Voltage Difference | 0–40% |
| Maximum Voltage | 100–130% of nominal |
| Minimum Voltage | 50–95% of nominal |
| Mounting | Panel / device-specific enclosure mounting |
| Application | Generator-to-grid and grid-to-grid synchronization |
| Condition | New Surplus, subject to inspection |
ABB’s published SYNCHROTACT documentation provides the synchronization parameter ranges and confirms the dual-channel architecture.
Important identification caution: There are secondary web listings that describe as an excitation regulator or even as a signal-distribution/network device. Those descriptions conflict with ABB’s official SYNCHROTACT documentation. The authoritative ABB documentation identifies SYN 5202 as a dual-channel synchronizing device.

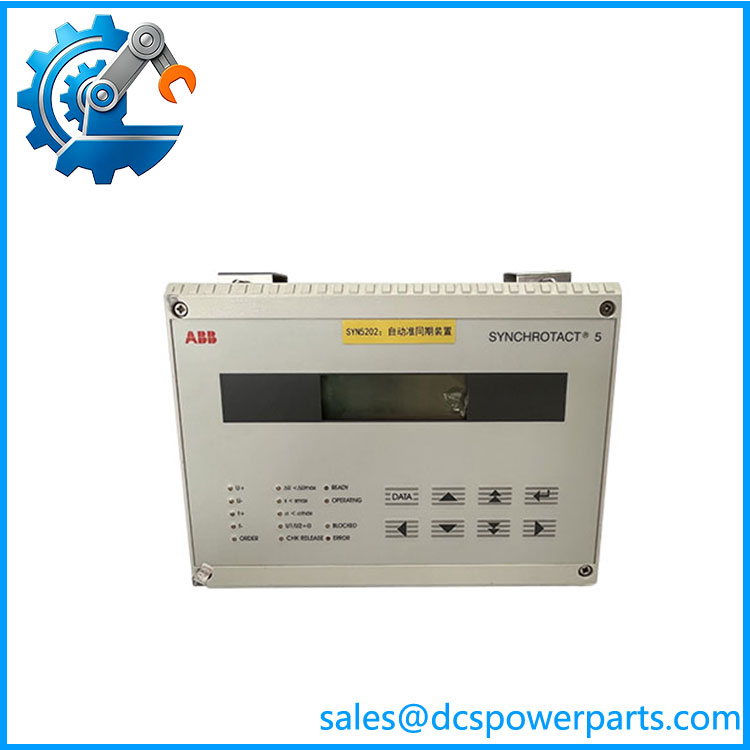

SYN5202A
Related Products
- ABB SYN 5201 — Single-channel automatic synchronizing device. It provides the same general synchronization function with one channel rather than the two-channel architecture of SYN 5202.
- ABB SYN 5100 — Synchrocheck device. It verifies synchronization conditions but is not the same automatic dual-channel paralleling device as SYN 5202.
- ABB SYN 5302 — Redundant automatic dual-channel synchronizing device. It combines two SYN 5202-class systems, providing four synchronization channels and a redundant arrangement.
- ABB SYN 5200 — SYNCHROTACT 5 synchronizing/paralleling platform. It includes communication functions and can operate as an automatic paralleling unit, depending on configuration.
- ABB SYNCHROTACT 5 — The product family containing SYN 5100, SYN 5200, SYN 5201, SYN 5202, and SYN 5302. It is the correct family reference when reviewing compatibility and replacement options.
- ABB SYN 5202 channel 1/2 configuration — The two channels within SYN 5202 have different parameter ranges and functions in ABB’s documentation. This matters when transferring an existing configuration to a replacement unit.
Frequently Asked Questions
1. What is ABB used for?
The is a dual-channel automatic synchronization device. It compares the voltage, frequency, and phase relationship between two electrical systems and generates a paralleling command when the configured conditions are satisfied. ABB specifically identifies SYN 5202 as a dual-channel automatic synchronizing device.
Typical applications include:
- Generator-to-grid synchronization
- Generator-to-generator paralleling
- Grid-to-grid paralleling
- Power-generation switchgear systems
2. Can I replace with SYN5201?
Not as a like-for-like replacement.
The key difference is channel count:
- SYN 5201: Single-channel automatic synchronizing device
- SYN 5202: Dual-channel automatic synchronizing device
If the original installation uses both synchronization channels, substituting a SYN 5201 would change the system architecture.
3. Does support firmware v3.1?
ABB’s published SYNCHROTACT documentation does not establish a universal firmware v3.1 requirement for SYN 5202.
For a field replacement, verify the installed unit’s configuration and hardware revision rather than assuming firmware interchangeability from the model number. Synchronization parameters are particularly important because an incorrect angle, voltage, or slip limit can affect breaker-closing behavior.
4. Can I hot-swap the ?
Do not assume hot-swapping is permitted.
This device is directly involved in generator-breaker synchronization and paralleling. Before replacement, follow the plant switching procedure and ensure that the associated breaker-control circuit cannot issue an unintended close command.
After installation, verify:
- PT/reference voltage measurements.
- Generator voltage measurement.
- Frequency readings.
- Phase-angle indication.
- Slip settings.
- Voltage-difference limits.
- Breaker command timing.
- Alarm and blocking functions.
5. Will replacing erase my synchronization settings?
The physical replacement should not be treated as a replacement of the entire plant control application, but the synchronization parameter set must be preserved.
Record the existing:
- Nominal voltage
- Nominal frequency
- Slip limit
- Angle limit
- Voltage-difference limit
- Paralleling time
- Command duration
- Monitoring time
- Breaker-specific timing
ABB documentation provides extensive configurable parameter ranges, so simply installing a replacement and assuming factory settings match the old device is not good commissioning practice.
6. Is an excitation regulator?
No, not according to ABB’s SYNCHROTACT documentation.
ABB identifies SYN 5202 as an automatic dual-channel synchronizing device. Some secondary catalogs incorrectly associate the similar “” designation with excitation-regulator hardware. Those descriptions should not override the ABB SYNCHROTACT documentation.
For procurement, verify the nameplate, complete type code, and installed system function before purchasing.
7. How should I verify a New Surplus ?
For a critical synchronization spare, check:
- Exact nameplate
- Complete type code
- Hardware revision
- Serial number
- Enclosure and terminal condition
- Input/output terminal arrangement
- Auxiliary-power rating
- Channel diagnostics
- Configuration compatibility
- Functional simulation of synchronization conditions
A particularly important check is whether the supplied unit is actually a SYNCHROTACT 5 SYN 5202. ABB’s official documentation is the strongest reference for this identification and distinguishes it clearly from SYN 5201 and SYN 5302.
