ABB SDCS-CON-2-COAAT | 3ADT220090R2 Drive Control Board | ABB DC Converter Replacement

Description

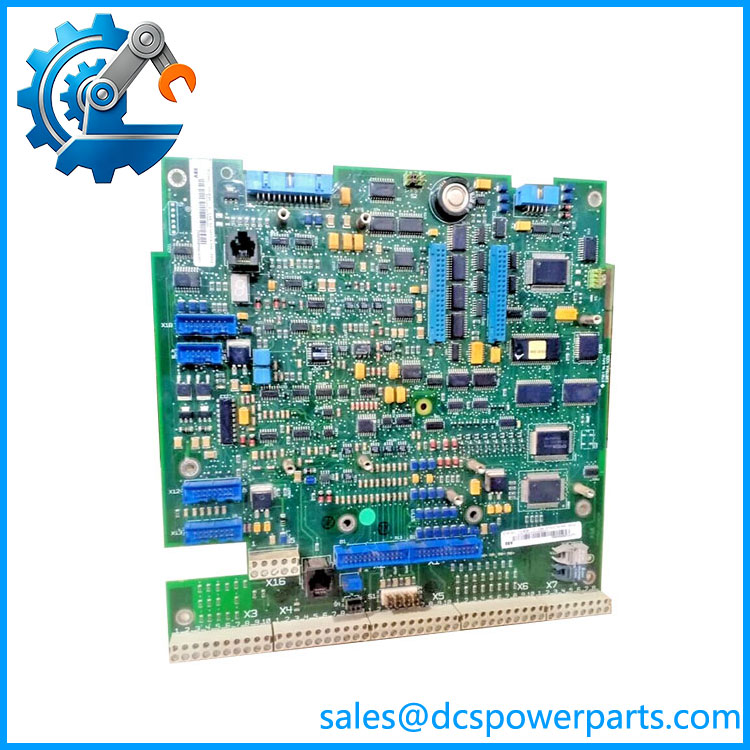

ABB SDCS-CON-2-COAAT 3ADT220090R2 Control Board

Key Technical Specifications

Note: Public secondary listings provide conflicting electrical, communication, and environmental specifications for this exact part number. I have intentionally excluded unsupported claims such as a universal 230 VAC input, Modbus RTU, Ethernet, digital-channel count, or fixed operating-temperature range. One reseller listing, for example, incorrectly describes the board as a generic PLC module.

Product Introduction

The is a control-electronics board associated with ABB’s DCS-series thyristor power-converter and DC-drive systems. Its role is within the drive’s control architecture rather than the high-power thyristor section itself. In a complete DC drive, the control electronics coordinate regulation and exchange signals with the power-converter and field/control circuitry required by the specific drive configuration. ABB’s DCS product documentation covers thyristor converters across a broad current range, so the exact system configuration is important when identifying a replacement board.

For maintenance teams, the should be treated as an application-specific legacy drive board. The complete designation 3ADT220090R2 is important because SDCS control boards can look similar while serving different hardware configurations. A replacement should be matched against the original drive model, board position, revision, connected interface boards, and application parameters rather than selected simply because it carries the designation.

SDCS-CON-2-COAAT

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

When an older ABB DC drive stops operating, the visible symptom may be a fault in the converter, motor, field circuit, or control electronics. Replacing the without checking the complete drive architecture can therefore produce a board that powers up but does not restore the original control function. On these systems, the control board is part of a larger coordinated assembly.

Typical Applications

• ABB DCS DC drives — Control electronics for compatible thyristor-based DC motor drives.
• Industrial DC motor control — Used in applications requiring controlled DC motor speed and torque.
• Thyristor power converters — Part of the control architecture surrounding ABB DCS converter power stages.
• Legacy production equipment — Maintenance of older rolling, material-handling, process, and other DC-drive installations where the original DCS architecture remains in service.

Technical Pitfalls

1. Do not classify it as a generic PLC CPU.
The belongs to ABB’s DCS thyristor converter/DC-drive architecture. A generic PLC description does not capture its actual role or replacement requirements.

2. Do not confuse the control board with the power stage.
The DCS system contains separate control and power-conversion functions. The should not be treated as a thyristor module or power stack.

3. Match the complete drive configuration.
Before ordering, record the DCS drive model, converter current rating, board location, all visible board labels, connected cables, interface boards, and revision information. The same control-board family can appear in different drive configurations.

4. Be careful with published electrical specifications.
Some secondary listings state that this exact unit has a 230 VAC input, while others describe it as a 24 VDC PLC-type module. Those claims are not sufficiently supported for this exact ordering code. The cabinet schematic and ABB documentation for the installed DCS configuration should take precedence.

5. Do not assume modern communication protocols.
The presence of an SDCS control board does not establish that the installed drive supports Ethernet, Modbus, or another modern industrial protocol. Communication capability depends on the complete DCS system and installed interface hardware.

6. Preserve the original configuration.
Before removing an operating board, photograph connector locations, jumper/switch settings, board labels, and associated interface cards. Record the drive’s existing parameters and fault history where possible.

7. Inspect connectors and board condition.
For a used or surplus 3ADT220090R2, check edge connectors, terminal connections, electrolytic capacitors, relays, solder joints, contamination, corrosion, and evidence of thermal stress. A visual inspection alone does not establish operational condition.

8. Verify the replacement under the actual application.
The most useful acceptance test is not simply confirming that the board powers on. Where test equipment and an appropriate test procedure are available, verify the control interfaces and drive operation using the same system configuration for which the original board was specified.

Related Products

• ABB DCS500 — Legacy digital DC drive family associated with ABB thyristor converter technology.
• ABB DCS550 — Later DCS-series DC drive family; compatibility must be checked by exact drive and control-board configuration.
• ABB DCS800 — ABB digital DC drive platform with its own control architecture and board variants.
• ABB SDCS-CON-1 — Related SDCS control-board family; not automatically interchangeable with CON-2 variants.
• ABB SDCS-CON-4 — Later/alternative SDCS control electronics used in different drive configurations.
• ABB SDCS-IOB-2 — I/O board family used with applicable ABB DC-drive control architectures.
• ABB SDCS-PIN — Interface/control board family associated with ABB DCS drive electronics.
• ABB SDCS-PIN-51 — Related power-interface board used in applicable converter configurations.
• ABB SDCS-FEX — Field-exciter/control hardware family for ABB DC-drive applications.
• ABB DCS Thyristor Power Converters — Broader ABB converter platform in which the SDCS-CON family is used.

Procurement Note

For , purchase against the complete type designation and ABB part number. Before accepting a replacement, compare the original drive model, converter rating, board revision, connector arrangement, jumper/switch configuration, interface boards, and cabinet documentation.

For used or surplus hardware, ask for clear photographs of the complete board label, PCB/component side, connectors, and revision markings. If the original board is still functioning, capture its configuration before removal. With legacy ABB DCS equipment, the configuration and system-specific compatibility are often more important than whether a replacement board has the same physical dimensions.

The main technical point is simple: 3ADT220090R2 should be sourced as an ABB DCS drive control board, not as a generic PLC or web-server module. The latter descriptions found in secondary listings are not consistent with the DCS application evidence.
