Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | SCYC51220 |
| ABB Part Number | 63901075C |
| Manufacturer | ABB |
| Product Type | Pulse amplifier / trigger module |
| Primary Function | Control-pulse amplification and conditioning |
| Application | ABB drive and power-control equipment |
| Input Signal | Application-dependent; verify against the host converter |
| Output | Trigger/pulse interface for associated power electronics |
| Supply Voltage | Verify from equipment documentation |
| Communication | Not confirmed as a general-purpose network interface |
| Mounting | Equipment-specific |
| Status | Legacy / maintenance spare |
Specification caution
There is a significant amount of low-quality information published for SCYC51220. One source identifies it as an ABB pulse amplifier, while another gives a much more detailed set of claims including 24 VDC supply, 0–5 V/4–20 mA inputs, 1–100 kHz pulse frequency, CANopen, Modbus RTU, and configurable phase-angle triggering. Those detailed figures are not sufficiently supported by primary ABB documentation in the sources available here, so I would not publish them as guaranteed specifications.
The strongest consistent identification is SCYC51220 / 63901075C as an ABB pulse-amplifier or trigger-related module.
Product Introduction
The ABB SCYC51220, 63901075C, is a legacy ABB electronic module associated with pulse amplification and trigger-signal handling in industrial drive and power-control equipment. Its function is fundamentally different from a standard PLC analog or digital I/O card. The board belongs to the signal path used by power-electronic control hardware, where correctly shaped control pulses are important to the operation of the associated converter or drive.
For maintenance work, the host equipment is especially important. A replacement SCYC51220 should be evaluated against the original board’s revision, connector arrangement, surrounding control boards, and the specific ABB converter or drive in which it is installed. Generic descriptions such as “communication interface board” or “general-purpose control module” are too broad to establish interchangeability.

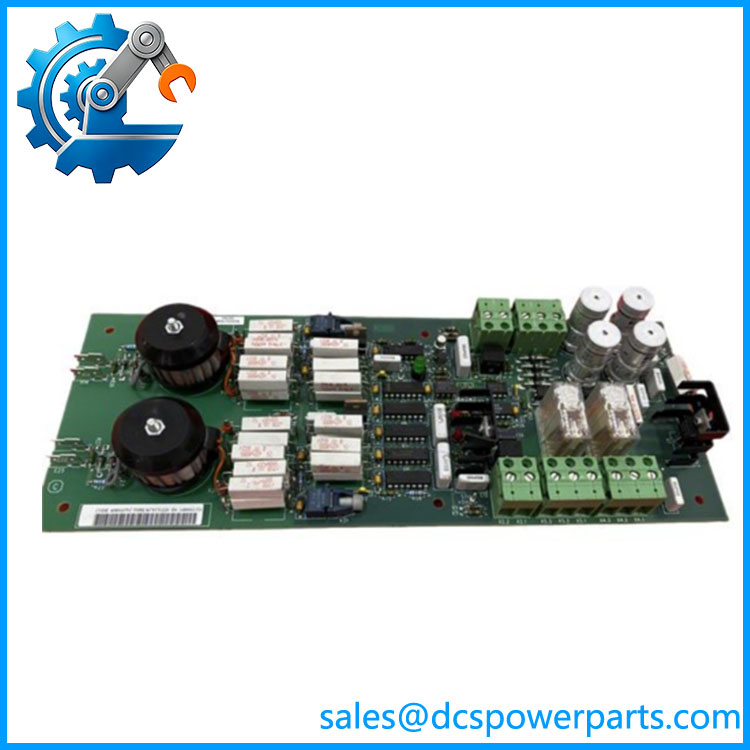

SCYC51220
Application Scenarios & Field Pitfalls
Engineering Pain Point
A failed pulse-amplifier board can prevent a drive or power converter from generating the required firing/control signals even when the main processor and power section appear healthy. Troubleshooting therefore requires checking the complete signal chain rather than automatically replacing the controller.
Typical Applications
- ABB DC drive systems where pulse-generation electronics interface with the power section.
- Thyristor-based power converters requiring conditioned gate or firing signals.
- Industrial power-control equipment where legacy ABB electronic boards remain in service.
- Plant retrofit and maintenance projects where the existing converter architecture must be retained.
Technical Pitfalls to Avoid
- Do not treat SCYC51220 as a generic analog card. Its documented identity is associated with pulse amplification and trigger functions.
- Verify the suffix carefully. is associated with 63901075C in several indexed references; earlier or differently revised boards should not automatically be considered interchangeable.
- Check the host converter before installation. Connector pinout, trigger timing, supply arrangement, and mating control boards can be equipment-specific.
Related Products
- SCYC51213 — 63911607C: ABB trigger-unit hardware from the same general power-control electronics family; not an automatic substitute for .
- UFC911B106 — 3BHE037864R0106: ABB industrial control hardware used in a different control architecture; relevant for broader modernization work, not direct substitution.
- UFC921A101 — 3BHE024855R0101: ABB control-board hardware with a different function and identification.
- PPC907BE — 3BHE024577R0101: ABB processor module used in control applications; different role from the SCYC pulse interface.
- LDMUI-01 — 61320946C: ABB interface module associated with legacy drive/control hardware.
- LDMTR-01 — 63940135F: Related ABB electronics for legacy control equipment, but with a different I/O function.
- LDSTA-01 — 63940143B: ABB controller hardware from the same broad legacy equipment environment; not a drop-in replacement.
Procurement Check
For , use the complete identification when sourcing the replacement. Before installation, compare the original board’s revision marking, connectors, host drive/converter model, mating boards, and pulse-interface wiring. I would not rely on vendor claims for exact voltage, frequency, communications, or I/O specifications unless they can be traced to the applicable ABB equipment manual.
