Description
Product Overview

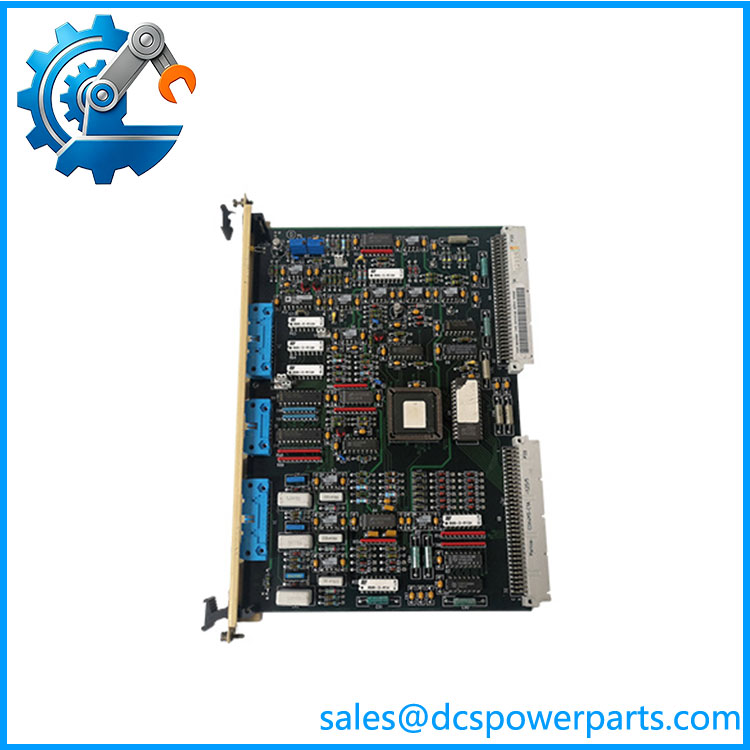

ABB SCYC51020 58052582G is a pulse-trigger control board associated with ABB industrial power-electronics and excitation-system equipment. Its primary task is to generate accurately timed firing pulses for controlled semiconductor devices, particularly thyristor-based power stages. In an excitation system, this type of board sits between the control/regulation electronics and the power converter, where timing accuracy directly affects the converter’s ability to regulate the excitation output.
The function of ABB SCYC51020 is therefore fundamentally different from a conventional PLC I/O card. It is a power-electronics control component, and its performance depends on synchronization, pulse timing, isolation, and the characteristics of the associated thyristor bridge. Available product-specific records consistently associate SCYC51020 58052582G with pulse-trigger functionality, although some secondary listings incorrectly describe the same number as a data-acquisition module, high-voltage frequency converter, or generic PLC component.
For maintenance of an installed ABB excitation or thyristor-control system, SCYC51020 58052582G should therefore be identified from the physical PCB marking and the host-system documentation before replacement. The complete part number is important because similarly named ABB boards can perform entirely different functions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | SCYC51020 |
| Part Number | 58052582G / 58052582/G |
| Product Type | Pulse Trigger / Thyristor Firing Board |
| Primary Function | Thyristor gate-pulse generation and control |
| Application | Excitation and power-conversion systems |
| Power Stage | Thyristor-controlled converter |
| Installation | Internal control/power-electronics assembly |
| Control Role | Synchronization and firing-pulse generation |
| Platform | ABB legacy industrial power electronics |
| Lifecycle | Legacy spare |
ABB-related product records specifically list SCYC51020 58052582/G as a pulse trigger board.
Specification caution: I would not publish a fixed input voltage, current rating, channel count, Ethernet interface, or Modbus specification for this board without the applicable ABB system manual. Several online records attach clearly conflicting specifications to this part number.
Main Features and Advantages
Precision Thyristor Firing
The core purpose of is pulse generation for controlled semiconductor switching. In a thyristor converter, the firing angle determines when the SCRs enter conduction. Incorrect timing can produce output-voltage errors, phase imbalance, excessive ripple, or converter faults.
Excitation-System Application
The board is particularly relevant to excitation equipment where controlled rectification is used to regulate field power. A fault in the firing-pulse chain can prevent the power converter from responding correctly even when the upstream control electronics appear normal.
SCYC51020 58052582G
Synchronization With the Power Stage
A thyristor firing board must maintain the correct relationship between the control command and the AC waveform feeding the converter. This makes synchronization circuitry and pulse timing more important than simply verifying that the board has supply voltage.
Board-Level Replacement
For legacy ABB equipment, replacing the defective control PCB can be preferable to replacing the complete excitation assembly when the surrounding power components remain serviceable. This is especially relevant during planned outages where the installed excitation architecture is still supported by the plant maintenance team.
Application Scenarios
Generator Excitation Systems
The strongest product descriptions associate with excitation-system equipment.
Thyristor Rectifier Control
The board can serve as the firing-control layer for a controlled SCR converter, where accurate gate pulses are required to regulate DC output.
Industrial Power Regulation
The same pulse-trigger principle is applicable to controlled rectifiers, DC drives, and other power-electronics systems, although the exact application of this specific ABB board must be confirmed from the host equipment.
Legacy ABB Maintenance
A tested spare is useful where the original ABB excitation or converter system remains operational but individual control boards are difficult to source.
Related Components
- — Pulse-trigger / thyristor firing board.
- Thyristor bridge assembly — The power stage receiving the firing commands from the trigger circuitry.
- Excitation regulator — Provides the control command from which firing-angle information is derived.
- Synchronization circuitry — Provides phase-reference information needed for correctly timed SCR firing.
- ABB excitation-system control electronics — Supervisory and regulation hardware surrounding the pulse-trigger stage.
Engineer’s Guide: Field Pitfalls
⚠️ Do Not Treat It as a Generic PLC Module
Several secondary listings incorrectly describe the part as a data-acquisition module, DCS controller, or generic industrial gateway.
The more consistent product-specific evidence identifies it as a pulse-trigger board.
⚠️ Check the Complete Number
The following should be captured from the existing board:
Also verify whether the installed documentation uses 58052582G or 58052582/G notation. Both forms appear in product records.
⚠️ Do Not Replace a Firing Board Without Checking the SCR Stage
A damaged thyristor, firing transformer, snubber circuit, synchronization circuit, or abnormal supply can cause symptoms that look like a defective trigger board.
Before installing a replacement, inspect:
- Thyristor condition
- Gate/cathode wiring
- Firing pulse circuits
- Synchronization signals
- Isolation components
- Converter protection circuits
- Control-board power supplies
⚠️ “Power-On Tested” Is Not Enough
A pulse-trigger PCB can power up normally while producing incorrect firing timing or missing pulses. A meaningful refurbishment test should verify the relevant pulse outputs under appropriate test conditions.
Frequently Asked Questions
What is ABB 58052582G?
It is an ABB pulse-trigger / thyristor firing control board, associated with excitation and controlled power-conversion systems.
What does do?
It generates and controls firing pulses used to trigger thyristor power devices at the appropriate point in the AC waveform.
Is an excitation-system component?
Available product-specific records identify it as an excitation-system control/pulse-trigger component.
Is 58052582G the same identification as 58052582/G?
Product listings use both 58052582G and 58052582/G when referring to . For purchasing, retain the exact marking shown on the installed board.
Can I use it as a generic thyristor trigger board?
No. Even though its general function is thyristor triggering, the firing-pulse format, synchronization, isolation, connectors, and control architecture are system-specific.
What should I request when purchasing a refurbished ?
Request:
- Actual PCB photographs.
- Clear identification.
- Revision information.
- Connector inspection.
- Power-supply test.
- Synchronization test.
- Firing-pulse output test.
- Test report.
- Host-system/application information where available.
- Warranty terms.
For an excitation-system board, verified pulse-output testing is substantially more meaningful than a basic power-on test.
