Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | SCYC51020 |
| Part Number | 58052582H |
| Product Type | IGCT Gate Control / Trigger Distribution Board |
| System Platform | ABB ACS6000 / ACS5000 Medium Voltage Drives |
| Application Layer | Valve Base Electronics (VBE) |
| Main Function | Gate pulse distribution and IGCT driver interface |
| Communication Interface | Fiber optic communication with gate driver units |
| Compatible Components | ABB GVC series gate driver boards, AMC controller interface |
| Signal Isolation | Optical isolation between control electronics and power stage |
| Internal Supply | Low-voltage DC supply from drive control cabinet |
| Typical Rails | +5VDC / ±15VDC (system dependent) |
| Diagnostics | Status LEDs and communication monitoring |
| Installation | Dedicated converter control rack / VBE section |
| Operating Environment | Industrial drive cabinet environment |
| Application | Medium voltage inverter, converter, and industrial drive systems |
([turn0search0])
Product Introduction

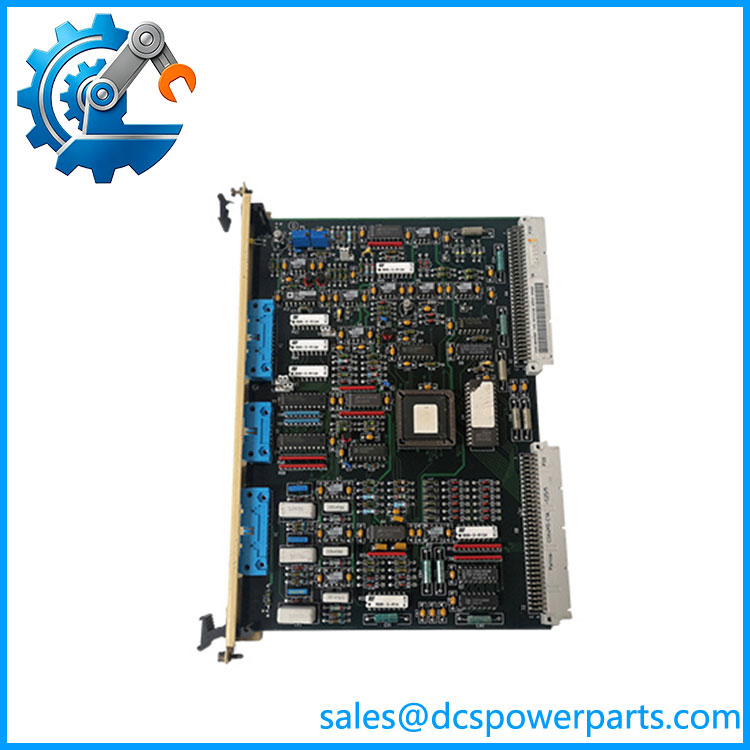

ABB SCYC51020 58052582H Overview
The ABB SCYC51020 58052582H is a gate control and trigger distribution board used in ABB ACS6000 and related medium voltage converter platforms. It operates inside the Valve Base Electronics section, managing communication between the drive control system and IGCT gate driver units. ([turn0search0])
The ABB SCYC51020 58052582H is a critical interface board in high-power converter systems. It handles gate command distribution and feedback collection through isolated communication paths, helping the main controller coordinate switching behavior of IGCT power devices. Replacement requires verification of hardware revision, converter type, and connected GVC/KUC components. ([turn0search0])
SCYC51020 58052582H
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A medium voltage drive trips during operation with a gate communication fault. The AMC controller reports a converter-side problem, but the power semiconductor modules, cooling system, and incoming supply all appear normal.
This is a typical troubleshooting path in ACS6000 installations. The fault may originate from the communication chain between the controller, trigger board, and IGCT gate units. A single failed interface board can block converter firing pulses and stop the entire drive.
The SCYC51020 58052582H sits inside that trigger path. It is not a standard I/O card.
Typical Applications
- Mining Industry – ACS6000 drives controlling large mine hoists, conveyors, and ventilation fans.
- Metallurgical Plants – Medium voltage motor drives for rolling mills and high-power process equipment.
- Cement Plants – Variable speed control for large grinding mills and process fans.
- Water and Utility Facilities – High-power pumping systems requiring medium voltage drive control.
Technical Pitfalls to Avoid
- Match Hardware Revision Before Installation
ABB converter boards can have revision-dependent firmware and interface differences. Confirm the complete marking, including 58052582H and revision code, before replacement.
- Check Fiber Optic Connections First
Many apparent board failures are caused by dirty fiber connectors, damaged optical cables, or poor seating at the GVC interface. Clean and inspect before replacing expensive hardware.
- Verify Power Supply Rails
Measure the internal control voltages before condemning the board. Abnormal +5V or ±15V supplies can cause watchdog alarms, communication loss, and false gate faults.
Related Products
- ABB GVC736BE101
IGCT gate control unit used with ABB medium voltage drives. Receives gate commands from the VBE control chain and provides direct interface to IGCT devices. - ABB KUC755AE106 3BHB005243R0106
Converter control board associated with ACS6000 systems. Works with VBE hardware for converter monitoring and control functions. - ABB AMC Controller Series
Main application controller platform used in ACS6000 drives. Provides higher-level control commands to converter interface boards. - ABB SCYC51010 58052515G
Related SCYC family board used in ABB converter control systems. Function differs depending on converter cabinet design and signal distribution role. - ABB SCYC51040 58052680E
Another SCYC series interface board used within ABB medium voltage converter architectures. - ABB 5SHY3545L0016 3BHB020720R0002
IGCT power semiconductor component used in high-power ABB converter assemblies. - ABB 5SHY3545L0010 3BHB013088R0001
Related IGCT module used in and high-power industrial drive systems. - ABB Medium Voltage Drive System
Drive platform using IGCT technology for large motor control applications in industrial plants.
