Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model Number | RF522 3BSE000743R1 |
| Product Type | Subrack Assembly with Backplane |
| System Platform | ABB Advant Master / Advant OCS |
| Controller Family | Advant Controller 450 |
| Rack Size | 18SU |
| Backplane Type | BB512 18SU Backplane |
| Mounting Function | Controller and I/O module installation platform |
| Dimensions | 540 mm (D) × 441 mm (W) × 297 mm (H) |
| Weight | Approx. 19.3 kg |
| Application | Industrial DCS control cabinet installation |
| Product Category | Control System Accessory |
Product Introduction
ABB RF522 3BSE000743R1 Overview

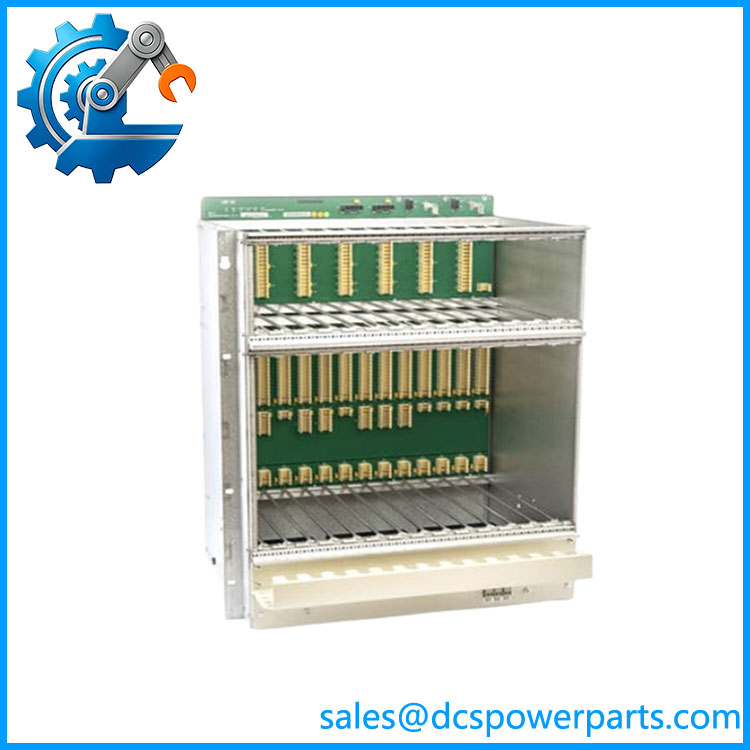

The ABB RF522 3BSE000743R1 is an 18SU subrack assembly designed for ABB Advant Controller 450 and Advant OCS control system installations. It provides the physical rack structure and integrated BB512 backplane required for mounting and connecting compatible controller, communication, and I/O modules.
This rack assembly is mainly used in legacy ABB DCS maintenance and expansion work. For plants maintaining Advant-based control systems, the RF522 allows replacement of damaged rack hardware without redesigning the existing cabinet architecture.
RF522 3BSE000743R1
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A common failure point in aging DCS cabinets is not always the processor or I/O module. Sometimes the rack itself becomes the problem. Loose backplane connections, damaged module slots, or degraded rack assemblies can create intermittent communication faults that are difficult to diagnose because individual modules may pass bench testing. Replacing the complete RF522 assembly can restore the mechanical and electrical foundation of an Advant Controller cabinet.
Typical Applications
- Power Generation – Advant Controller 450 systems used for boiler control, turbine auxiliary systems, and plant monitoring.
- Oil & Gas Processing – Legacy ABB DCS cabinets supporting process control loops, shutdown interfaces, and operator communication.
- Chemical Plants – Modular control cabinets requiring stable installation of CPU, communication, and I/O assemblies.
- Manufacturing Facilities – Existing Advant OCS installations undergoing spare replacement or cabinet refurbishment.
Technical Pitfalls to Avoid
- Verify Rack Configuration Before Replacement
The RF522 is not a standalone controller. It is a mechanical and electrical platform for specific Advant system modules. Confirm installed module types, rack layout, and backplane requirements before replacement.
- Inspect Backplane Contacts Carefully
Many field issues come from poor module seating, oxidation, or damaged connector contacts. A new rack with contaminated module connectors can reproduce the original communication fault.
- Check Cabinet Dimensions and Mounting Clearance
The is a large rack assembly. Verify cabinet depth, mounting rails, cable routing, and ventilation clearance before installation. Mechanical compatibility matters as much as electrical compatibility.
Related Products
- ABB RF521 3BSE000742R1
Smaller Advant system subrack option. Used where fewer modules are required compared with the 18SU configuration. - ABB RF533 3BSE014227R1
Related Advant rack assembly used with controller system configurations requiring different module capacity and cabinet layouts. - ABB BB512 18SU Backplane
The backplane assembly included with . Provides module interconnection and internal signal distribution within the rack. - ABB AC450 Controller Unit
Main controller platform associated with installations. The rack provides the mounting and connection structure for AC450 hardware. - ABB RF541 3BSE000860R1
Modem subrack designed for different communication hardware applications. Used when additional communication interface mounting is required. - ABB RC527 3BSE008154R1
Fan unit accessory for Advant system rack environments. Used where cabinet cooling requirements require additional airflow support. - ABB TC512V1 3BSE018059R1
Twisted Pair Modem module for ABB communication applications. Function differs from , which provides rack infrastructure rather than communication conversion.
