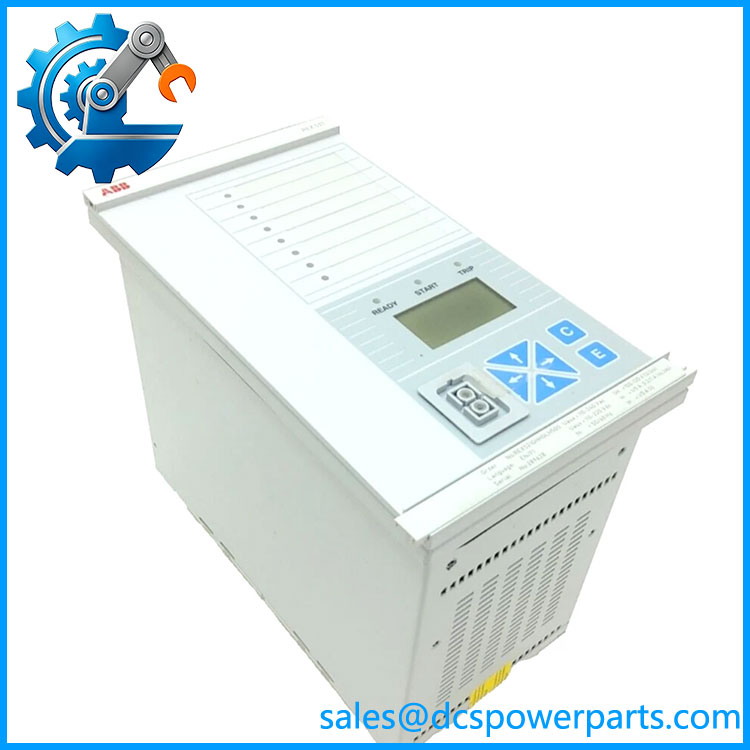

ABB REX521GHHGLH03G Feeder Protection Relay
Product Overview
The ABB REX521GHHGLH03G belongs to the REX 521 family of multifunction numerical protection relays developed for medium-voltage electrical distribution systems. ABB describes the REX 521 as a protection relay for protection, control, measurement, and supervision, with applications covering incoming and outgoing feeders, motor feeders, and substation protection. The platform was also designed for large and medium three-phase AC motors controlled through circuit breakers.
From an engineering perspective, the ABB REX521GHHGLH03G should be treated as an electrical protection terminal rather than a PLC or generic DCS I/O module. The relay processes current and voltage measurements, executes protection functions, supervises circuit-breaker and related equipment, and can perform control and automation tasks through its configurable logic and I/O. ABB documentation describes support for conventional current and voltage transformers, while separate REX 521 hardware versions were available for current and voltage sensors.
The REX 521 platform uses pre-engineered standard configurations for common network arrangements. ABB’s technical reference manual documents Basic, Medium, and High hardware configurations, with application examples covering outgoing feeders, incoming feeders, transformer feeders, and higher-functionality applications. Available functions include phase overcurrent, earth-fault, directional earth-fault, voltage, frequency, negative-sequence, thermal and phase-discontinuity protection, along with circuit-breaker control, trip-circuit supervision, disturbance recording, measurement, condition monitoring, and power-quality functions.
One point deserves attention during procurement: REX521GHHGLH03G is a complete ordering code, but the exact suffix interpretation should be checked against the relay nameplate and original ABB configuration documentation. Publicly indexed ABB material does not expose enough information to safely decode every character of this exact string. That is preferable to assigning an incorrect CT/VT, supply, I/O, or communication specification to a protection relay.
Product Introduction
A protection relay replacement can look straightforward until the wiring and settings are compared. The ABB REX521GHHGLH03G belongs to a platform where hardware configuration, standard application, protection functions, communication options, and site-specific settings all matter.
For a medium-voltage feeder protection replacement or legacy substation upgrade, the useful comparison is not just relay-to-relay physical fit. CT/VT circuits, breaker control, trip-circuit supervision, interlocking, protection curves, communication mapping, and stored settings need to be checked against the existing installation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | REX521GHHGLH03G |
| Manufacturer / Brand | ABB |
| Product Series | REX 521 |
| Product Type | Numerical feeder protection relay |
| Primary System | Medium-voltage electrical distribution |
| Typical Applications | Incoming feeder, outgoing feeder, motor feeder, substation protection |
| Protection Measurement | Conventional CT/VT inputs or sensor-based hardware depending on version |
| Protection Functions | Multifunctional; exact set depends on hardware/configuration |
| Control Functions | Circuit-breaker and switching-object control, depending on configuration |
| Measurement | Current, voltage, frequency and calculated electrical quantities |
| Disturbance Recording | Supported by REX 521 platform |
| Condition Monitoring | Breaker wear and trip-circuit supervision functions available in applicable configurations |
| Communication | ABB protection-relay communication options; exact interface must be verified |
| Configuration | Standard and application-specific configurations |
| Product Lifecycle | Legacy; ABB identifies REX 521 as not active since 2012 |
ABB currently classifies the REX 521 as a legacy product and states that it has not been an active product since 2012. ABB continues to publish technical documentation and retrofit-related material for the platform.
REX521GHHGLH03G
Major Features and Advantages
Multifunction feeder protection
The REX 521 was designed to combine several protection and automation functions in one numerical relay. The documented protection library includes three-phase overcurrent stages, residual/earth-fault protection, directional earth-fault protection, undervoltage and overvoltage functions, negative-sequence protection, thermal protection, phase-discontinuity protection, frequency functions, and other application-dependent elements.
This makes the relay useful in installations where protection, breaker control, measurement, and supervision were intentionally consolidated rather than divided among several independent devices.
Incoming and outgoing feeder applications
ABB’s standard configuration documentation provides dedicated application examples for both incoming and outgoing feeders. The documentation also covers transformer feeders and motor-related applications. That matters when replacing a field unit because the same REX 521 family can appear in installations with substantially different signal routing and protection logic.
Conventional CT and VT interface
The REX 521 platform was available with energizing inputs for conventional current and voltage transformers. ABB also produced a hardware version using current and voltage sensors. These are not interchangeable assumptions when sourcing a replacement. The actual hardware must match the primary measurement architecture already installed in the switchgear.
Breaker control and supervision
The REX 521 documentation includes circuit-breaker control, switching-object indication, local/remote selection, close-enable logic, trip-circuit supervision, and breaker-wear monitoring functions. These capabilities allow the relay to participate directly in the feeder control scheme instead of serving solely as a fault detector.
Disturbance recording and measurement
The platform includes disturbance-recording and measurement functions that support post-event analysis. Current, voltage, frequency, power-quality information, and disturbance data can be used to investigate feeder trips and abnormal network conditions.
For an aging installation, this is often more important than a long list of nominal protection functions. If a replacement relay cannot reproduce the original recording, event, and indication behavior, troubleshooting after commissioning can become unnecessarily difficult.
Configurable standard applications
ABB’s technical reference documentation divides REX 521 applications into Basic, Medium, and High configurations. Examples include basic feeder protection, directional protection, residual-voltage protection, auto-reclosing, synchro-check, breaker-failure protection, trip-circuit supervision, and disturbance recording.
The practical implication is simple: do not substitute a REX 521 based only on the family name. The original application configuration is part of the engineering identity of the relay.
Related Products
- ABB REX 521 Basic — Basic hardware/configuration variants intended for conventional feeder protection applications such as phase overcurrent and earth fault.
- ABB REX 521 Medium — Higher-functionality configuration family adding functions such as directional earth-fault and additional feeder automation.
- ABB REX 521 High — Higher-end configuration family supporting functions such as synchro-check and expanded protection/control applications.
- ABB REF 541 — ABB feeder protection terminal from the same broader RE 500 generation, useful for comparison when reviewing older feeder-protection installations.
- ABB REF 543 — Higher-functionality feeder protection and control terminal from the same platform generation.
- ABB REF 545 — Expanded feeder protection/control platform for more demanding substation applications.
- ABB REM 543 — Rotating-machine protection terminal from the same ABB protection generation; application differs from REX 521 feeder protection.
- ABB REM 545 — Generator and motor protection terminal; relevant when the protected asset is a rotating machine rather than a distribution feeder.
- ABB RET 543 — Transformer protection and control terminal from the same broader protection family.
FAQ
Can I hot-swap the ABB ?
Do not assume hot-swap capability. The REX 521 is a protection relay connected to CT/VT circuits, breaker controls, trip circuits, and potentially interlocking logic. Replacement should be performed under the site’s approved protection-maintenance procedure with the appropriate electrical isolation and CT-secondary precautions.
Does support firmware v3.1?
A specific firmware v3.1 compatibility statement for could not be verified from the documentation reviewed. ABB provides multiple REX 521 connectivity packages and application revisions, so the software revision of the existing and replacement relay should be checked directly rather than inferred from the hardware ordering code.
Is this an ordinary PLC or DCS protection module?
No. The REX 521 is a numerical electrical protection relay. It has programmable control and automation capabilities, but its principal function is protection and supervision of medium-voltage electrical equipment.
What should be checked before purchasing a replacement?
Check the complete nameplate code, hardware version, CT/VT or sensor arrangement, auxiliary supply, binary I/O wiring, protection configuration, communication interface, software revision, and site-specific settings.
For a serious replacement project, obtain the existing relay configuration and terminal diagram if available. ABB publishes REX 521 terminal diagrams and configuration documentation specifically because the hardware variants are not identical.
Does the REX 521 support motor protection?
Yes. ABB identifies the REX 521 for protection of large and medium-size three-phase AC motors in circuit-breaker-controlled motor drives. The documented function library also includes motor-related functions such as thermal protection and motor-start supervision in applicable configurations.
Can the be used for feeder protection?
Yes, the REX 521 family was specifically developed for feeder protection in medium-voltage networks. ABB lists incoming feeders, outgoing feeders, motor feeders, and substation protection among its typical applications. The exact GHHGLH03G configuration still needs to be matched against the original installation before treating it as a direct replacement.
Is “New Surplus” proof that the relay is factory-new?
No. “New Surplus” describes the commercial condition of an individual unit. For a legacy protection relay, procurement inspection should include the complete nameplate, serial information, hardware/software revision, physical condition, display/HMI operation, self-supervision status, auxiliary-power test, and configuration data.
Procurement and Compatibility Note
The should be purchased as a configuration-specific protection device, not simply as a generic REX 521 relay.
ABB identifies the REX 521 as a legacy product that has been inactive since 2012, while retaining technical documentation and retrofit resources for the installed base.
Before commissioning a replacement, compare the original relay’s:
- Complete ordering code
- Hardware revision
- Software revision
- CT and VT/sensor inputs
- Auxiliary supply
- Binary I/O assignment
- Protection settings
- Auto-reclose and breaker-control logic
- Trip-circuit supervision
- Communication protocol and address mapping
- Disturbance-recording configuration
For this particular ordering code, I would not publish a guessed voltage, current-input class, contact count, or communication suffix without a nameplate or ABB configuration record confirming the final code. That distinction matters on protection equipment.
