Description

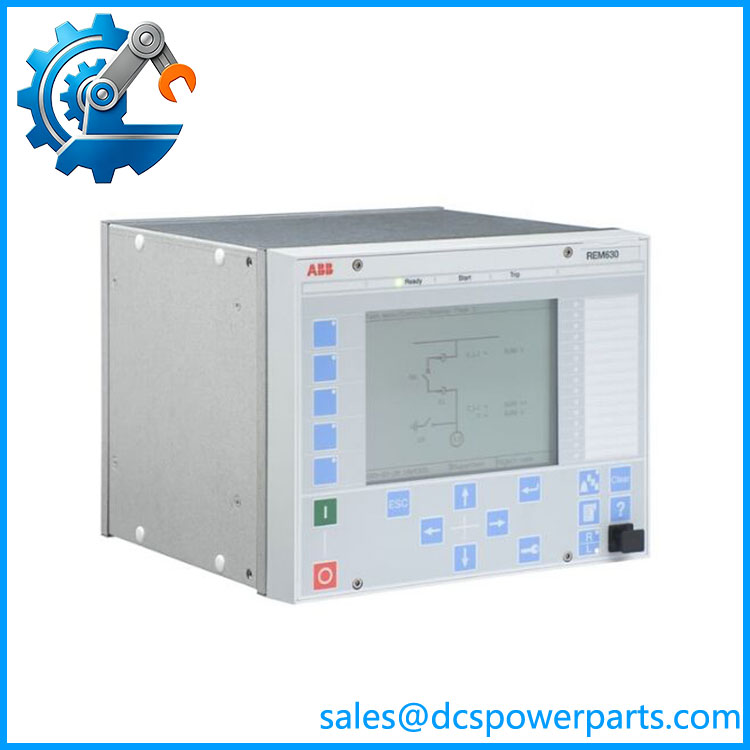

ABB REM630 TBMNBBACAABZEZNBXC
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | REM630 |
| Full Order Code | TBMNBBACAABZEZNBXC |
| Product Family | Relion 630 |
| Device Type | Motor Protection & Control IED |
| Application | Medium-voltage motor protection and control |
| Motor Type | Asynchronous and synchronous motors |
| Protection | Differential, thermal, startup, overcurrent, earth fault, frequency and related functions |
| Communication | IEC 61850, DNP3 TCP/IP, IEC 60870-5-103 |
| IEC 61850 | Supported, including GOOSE |
| RTD Inputs | 8, with applicable RTD/mA hardware |
| Analog Outputs | 4 mA outputs, with applicable RTD/mA hardware |
| HMI | Integrated or detached HMI options |
| Product Status | Not active since 2024 |
ABB describes the REM630 as a comprehensive motor-management IED for protection, control, measurement, and supervision of medium- and large-sized asynchronous and synchronous motors. Its 630-series architecture provides configurable functions and communication capabilities for industrial motor applications.
Important ordering point: the TBMNBBACAABZEZNBXC string is the complete configuration identifier supplied for this unit. The base REM630 designation alone does not tell you every installed hardware and configuration option. For replacement work, match the complete ordering code, hardware revision, firmware/application configuration, and existing I/O arrangement against the installed relay documentation.
Product Introduction
The ABB REM630 TBMNBBACAABZEZNBXC is a Relion 630-series motor protection and control IED intended for medium-voltage industrial motor applications. It combines protection, measurement, supervision, control, programmable logic, disturbance recording, and substation/plant communication in one relay. ABB specifically lists motor differential protection, thermal overload protection, motor startup supervision, and frequency protection among its core functions.
Communication capability is a significant part of the REM630 architecture. The relay supports native IEC 61850, including GOOSE messaging, as well as DNP3 TCP/IP and IEC 60870-5-103. Depending on the configured hardware, RTD and mA functions can also be used for motor winding and bearing monitoring.
Engineering Pain Point
The main replacement risk with an is configuration mismatch, not simply finding another relay with the same front-panel designation. A replacement unit can be electrically compatible yet still cause commissioning problems if its hardware options, firmware level, protection configuration, communication settings, or I/O allocation differ from the original installation. The full order code should therefore be treated as a critical procurement identifier.
Typical Applications
- Medium-voltage pump motor protection and control
- Compressor and fan motor protection
- Mills, crushers, and other large industrial motor feeders
- Synchronous and asynchronous motor protection in manufacturing and process plants
- Integration of motor protection data into IEC 61850-based automation systems
Technical Pitfalls to Avoid
- Do not purchase by “” alone. The full configuration code determines hardware and functional options. Verify
TBMNBBACAABZEZNBXCagainst the installed nameplate and project documentation. - Check the motor protection philosophy. Differential protection, thermal modeling, startup supervision, earth-fault protection, and other functions must match the existing protection study and settings.
- Verify the communication architecture. IEC 61850, GOOSE, DNP3, and IEC 60870-5-103 are supported by the platform, but the installed configuration and engineering files still need to match the plant system.
- Do not assume every has the same RTD/mA hardware. ABB identifies the RTD/mA functionality as an optional hardware capability. Confirm the actual I/O configuration before using the replacement for temperature monitoring.
- Account for lifecycle status. ABB lists as not active since 2024. For an installed-base replacement, verify firmware, spare-unit condition, configuration-file availability, and long-term maintenance requirements before committing to a substitute architecture.
Related Products
- ABB REM615 — Motor protection and control relay from the Relion 615 family; generally a different platform and should not be treated as a direct drop-in replacement.
- ABB REM620 — Relion motor protection relay for medium-voltage motor applications; functionality and hardware architecture differ from the 630 series.
- ABB REF630 — 630-series feeder protection and control IED rather than a dedicated motor protection platform.
- ABB RET630 — 630-series transformer protection and control IED.
- ABB REG630 — 630-series generator protection and control IED.
- — Dedicated 630-series motor protection and control platform for medium- and large-sized motors.
Procurement note: For TBMNBBACAABZEZNBXC, the safest replacement check is the complete order code + nameplate revision + firmware/application version + protection settings + communication configuration. Do not approve a substitute based only on the shared model name.
