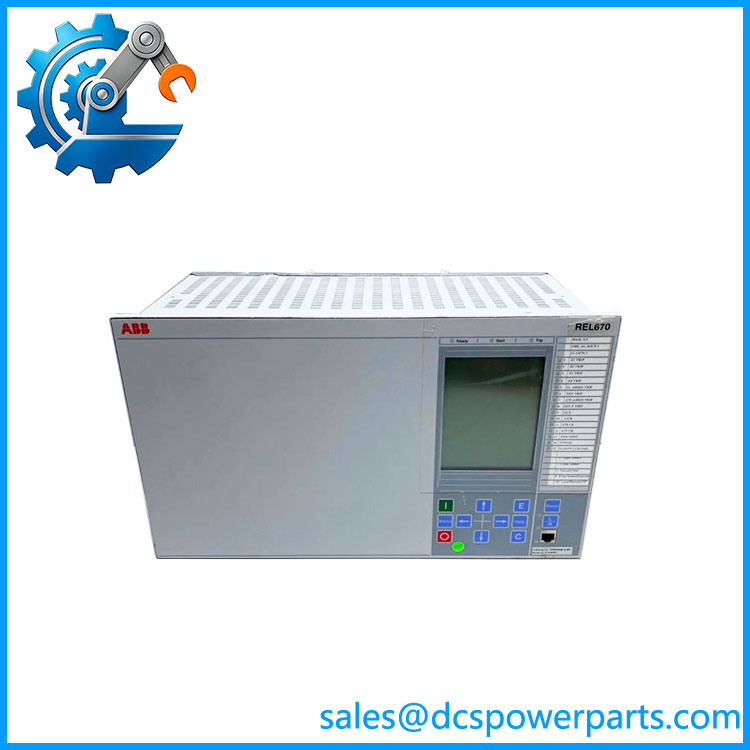

ABB 1MRK00008-KB is a local human-machine interface module designed for ABB Relion 670-series protection relays used in electrical substations and transmission applications. The unit serves as the front operator interface for protection devices such as the ABB REL670, allowing engineers and maintenance personnel to view relay status, access measurement information, review alarms, and perform local operational tasks.
The ABB REL670 1MRK00008-KB interface is part of a complete protection relay assembly rather than an independent controller. It works together with the relay CPU, protection algorithms, communication modules, and I/O assemblies to provide a complete line protection solution. The display unit allows local interaction without requiring connection through engineering software.
A typical system arrangement:
CT/PT Field Signals → ABB REL670 Protection Relay → 1MRK00008-KB Front Display → Operator / Maintenance Engineer
The ABB 1MRK00008-KB is commonly found in transmission substations where distance protection, fault recording, event logging, and relay diagnostics are required. It provides convenient access to relay information during commissioning, troubleshooting, and periodic maintenance activities.
For replacement projects, engineers should verify the exact relay platform, hardware revision, firmware compatibility, and display configuration. The same front interface style may appear across different ABB 670-series devices, but software compatibility and relay application settings must be confirmed before installation.
When replacing a failed display unit, the fault may not always originate from the panel itself. Communication between the display and relay main unit, internal connectors, power supply, or firmware mismatch should also be checked during troubleshooting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 1MRK00008-KB |
| Product Type | Protection Relay Display / HMI Unit |
| Product Family | ABB Relion 670 Series |
| Compatible Relay | REL670 Transmission Line Distance Protection Relay |
| Interface Type | Local front-panel operator interface |
| Function | Relay monitoring, status display, local control |
| Display Application | Measurements, alarms, events, settings |
| Mounting Type | Front panel installation |
| System Application | Transmission protection and substation automation |
| Weight | Approx. 2.2–2.3 kg (depending on assembly configuration) |
| Country of Origin | Sweden (ABB production series) |
Specifications are based on ABB 670-series product references identifying 1MRK00008-KB as a REL670 display/front interface component.
Main Features and Advantages
Local Relay Operation Interface
The primary role of the ABB 1MRK00008-KB is providing direct access to protection relay information.
Operators can typically view:
- Relay operating status
- Protection indications
- Measurement values
- Alarm conditions
- Event records
- Diagnostic information
This simplifies field troubleshooting during commissioning and maintenance.
REL670
Designed for ABB Relion 670 Protection Platforms
The module is associated with ABB’s 670-series protection equipment, including line protection applications based on the REL670 platform.
Typical protection functions in these systems include:
- Distance protection
- Line fault detection
- Fault recording
- Communication-assisted protection
- Substation automation integration
Substation Maintenance Support
The local display allows technicians to perform field checks without requiring a laptop connection.
Common maintenance activities:
- Reviewing active alarms
- Checking relay measurements
- Confirming protection status
- Verifying configuration information
Replacement Considerations for Legacy Relays
Many ABB Relion 670-series installations operate for long service periods. Keeping compatible display assemblies available can reduce downtime caused by damaged front interfaces.
Common display-related failures include:
- No display illumination
- Failed keypad operation
- Communication loss with relay CPU
- Damaged front panel electronics
- Display module faults
Integration With Protection Engineering Workflow
Although the display provides local access, major relay configuration changes are normally performed through ABB relay engineering tools and communication interfaces.
Before replacing the unit, preserve:
- Relay settings
- Communication parameters
- Protection configuration
- Firmware information
Application Scenarios
Transmission Substations
Used for:
- High-voltage line protection
- Relay status monitoring
- Local operator access
Power Utility Protection Systems
Applications include:
- Distance protection panels
- Substation automation cabinets
- Relay replacement projects
Maintenance and Commissioning
Used during:
- Relay testing
- Fault investigation
- Preventive maintenance
Related Components
| Model | Function |
|---|---|
| Transmission line distance protection relay | |
| REC670 | Bay control and monitoring relay |
| REG670 | Generator protection relay |
| 1MRK00008-HB | Related 670-series display variant |
| 1MRK00008-LB | Related 670-series display variant |
Engineer’s Guide: Field Pitfalls
⚠️ Confirm Exact Relay Family
Before replacement verify:
- / REC670 / REG670 model
- Hardware revision
- Software version
- Display revision
A similar-looking panel may not communicate correctly with every 670-series relay.
⚠️ Check Internal Connections
Display failures may result from:
- Loose internal connectors
- Damaged ribbon cables
- Power supply issues
- Relay main board faults
⚠️ Preserve Relay Configuration
The display unit does not contain the complete protection application.
Before maintenance:
- Save relay settings
- Record firmware version
- Document communication configuration
⚠️ Refurbished Unit Testing Requirements
A proper evaluation should include:
- Visual inspection
- Power-up verification
- Display function test
- Key operation test
- Relay communication test
- Alarm/status verification
- Extended operation check
A display powering on does not confirm full relay compatibility.
Frequently Asked Questions
What is ABB 1MRK00008-KB?
It is a front display/HMI interface unit used with ABB Relion 670-series protection relays, including applications.
Is 1MRK00008-KB a protection relay?
No. It is the operator interface component for a protection relay system.
Which relay uses 1MRK00008-KB?
It is commonly associated with ABB transmission line protection equipment.
Does replacing the display require relay reconfiguration?
Usually the relay settings remain in the main relay unit, but compatibility, firmware, and hardware revision should be verified.
What should be checked before replacement?
Verify:
- Part number: 1MRK00008-KB
- Relay model
- Hardware revision
- Firmware compatibility
- Internal connections
- Display communication function
