Description
Product Overview

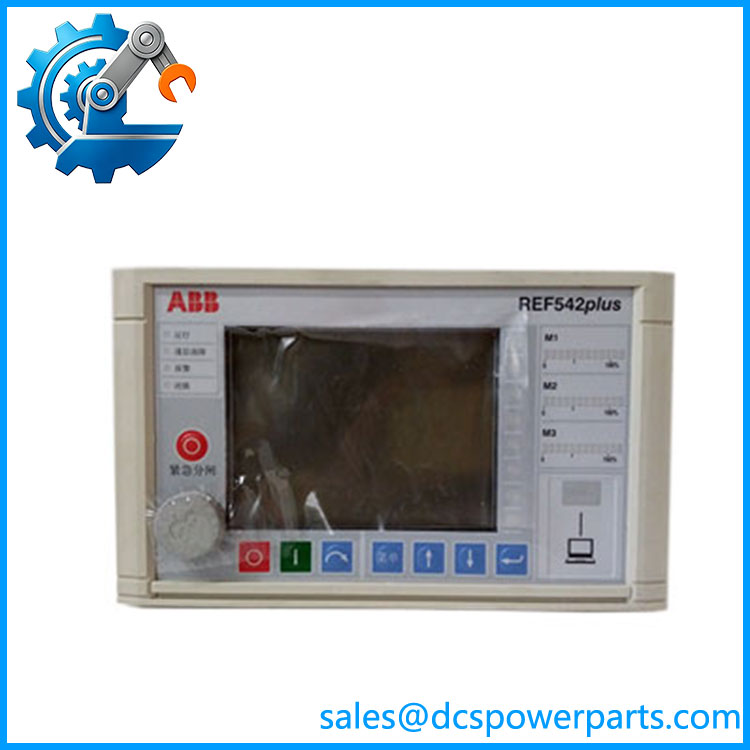

The ABB REF542PLUS 1VCR007346 is a multifunction protection and switchbay control unit designed for medium-voltage distribution applications. The device integrates protection, measurement, control, supervision, and communication functions into one compact platform, reducing the need for separate relay and control components inside MV switchgear panels. The ABB REF542PLUS 1VCR007346 belongs to the REF542plus family and is commonly applied in feeder protection, transformer protection, motor protection, and switchgear automation projects.
Designed as a programmable secondary control device, the REF542PLUS 1VCR007346 processes current and voltage measurements from instrument transformers or sensors, executes configured protection functions, and manages breaker or switch control sequences. The unit supports configurable logic functions for interlocking, automation sequences, protection blocking, and local control operations. Its architecture separates protection processing from control and communication tasks, helping maintain predictable behavior during demanding power system events.
The ABB REF542PLUS 1VCR007346 is widely used in medium-voltage substations, industrial power distribution networks, and retrofit projects where existing ABB switchgear requires continued service support. The device includes self-monitoring functions, configurable I/O, and communication interfaces for integration with station automation systems. Replacement planning should include verification of the application configuration file, protection settings, communication module type, HMI version, and switchgear wiring. To be completely transparent, a REF542plus replacement is not simply a relay exchange; the protection parameters and control logic must match the original engineered application before energizing the equipment.
Product Introduction (Non-Templated)
A protection relay failure in an MV feeder can interrupt both equipment protection and operator control functions at the same time. The ABB REF542PLUS 1VCR007346 restores a combined protection and bay control platform for compatible switchgear installations.
Supporting feeder, transformer, and motor protection applications with configurable logic, measurement functions, and substation communication interfaces, this unit is commonly selected for ABB REF542plus lifecycle maintenance and legacy replacement programs.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | REF542PLUS 1VCR007346 |
| Manufacturer | ABB |
| Product Type | Multifunction Protection Relay / Switchbay Control Unit |
| Product Family | REF542plus |
| Application Voltage Class | Medium Voltage Switchgear |
| Current Inputs | 1 A / 5 A CT inputs |
| Voltage Inputs | 100 V / 110 V VT inputs |
| Frequency | 50 Hz / 60 Hz |
| Protection Functions | Overcurrent, earth fault, motor protection, feeder protection |
| Control Functions | Breaker control, interlocking, switching sequences |
| Measurement Functions | Current, voltage, power, energy, frequency measurement |
| Binary Inputs | Configurable digital inputs |
| Binary Outputs | Configurable relay outputs |
| Communication Options | IEC 60870-5-103, Modbus RTU, DNP3, LON options |
| HMI Interface | Local graphical display and keypad |
| Diagnostics | Self-monitoring and fault supervision |
| Mounting | MV switchgear panel installation |
| Operating Temperature | Approximately -25°C to +70°C |
| Protection Rating | Front IP54 / Rear IP20 class |
| Condition | New Surplus, Factory Sealed |
Related Products
- ABB REF542plus 1VCR007346 G0004 — A configured REF542plus variant used for MV protection and bay control applications. Differences are typically related to hardware configuration, communication options, and project-specific settings.
- ABB REF542plus HMI Unit 1VCR007346 G0032 — Local operator interface component for REF542plus systems. Provides display and control access separate from the central protection unit.
- ABB REF542 — Earlier generation multifunction protection and switchgear control device. Often considered during retrofit evaluation when upgrading older SCU/REF systems.
- ABB REC670 — Modern feeder protection and control relay platform used for substation applications requiring updated communication and protection functions.
- ABB RET670 — Transformer protection relay platform designed for transformer differential and backup protection applications.
- ABB REM615 — Compact motor protection relay used for MV motor applications with dedicated motor protection functions.
- ABB REF615 — Feeder protection relay for medium-voltage distribution systems. Suitable for newer installations requiring IEC-based communication.
- ABB REX521 — Earlier ABB protection relay family used in feeder, motor, and transformer protection applications.
REF542PLUS 1VCR007346
Frequently Asked Questions (FAQ)
1. Is the ABB 1VCR007346 compatible with my existing MV switchgear?
Compatibility depends on the complete switchgear configuration, not only the relay part number.
Check:
- Existing REF542plus hardware revision
- Protection configuration file
- CT/VT input arrangement
- Communication interface
- HMI version
- Breaker control wiring
A replacement unit may require application parameter restoration before operation.
2. Can I hot-swap this?
The REF542plus is not typically treated as a standard hot-swappable PLC module.
A replacement normally requires:
- Isolate the MV equipment according to site procedures
- Backup protection parameters
- Remove the existing unit
- Install replacement hardware
- Restore configuration
- Perform protection testing
Protection devices require controlled commissioning after replacement.
3. Does the 1VCR007346 support firmware v3.1?
Firmware compatibility depends on the specific REF542plus hardware revision and engineering software environment.
Verification should include:
- Existing firmware revision
- Configuration tool version
- HMI firmware
- Communication module version
- Protection library compatibility
The firmware alone does not determine whether an application will run correctly.
4. Will I lose my protection settings when replacing the ?
The protection settings are stored within the device configuration, not automatically transferred to a replacement unit.
Before replacement:
- Upload the existing configuration
- Save protection parameters
- Record I/O assignments
- Document communication settings
After installation, reload and verify all protection functions before energizing the feeder.
5. How can I verify a New Surplus ABB 1VCR007346 is authentic?
Recommended inspection steps:
- Confirm ABB identification label
- Verify REF542plus and 1VCR007346 markings
- Inspect terminal blocks and connectors
- Check HMI condition if included
- Review available inspection records
For protection equipment, configuration verification is just as important as physical condition.
6. Can the 1VCR007346 support a legacy replacement project?
Yes, it is commonly used for maintaining existing ABB medium-voltage switchgear installations.
Typical applications include:
- Failed feeder relay replacement
- Switchgear control restoration
- Protection system maintenance
- Retrofit projects retaining existing MV equipment
The original protection philosophy and wiring design should be reviewed before replacement.
7. What should engineers check before commissioning this unit?
Key verification points:
- Confirm CT and VT ratios
- Verify protection parameters
- Check breaker control logic
- Test communication channels
- Validate digital inputs and outputs
- Perform secondary injection testing
These checks help confirm that the protection system responds correctly before returning the equipment to service.
