ABB RED670 1MRK004810-KG Line Differential and Distance Protection

Description

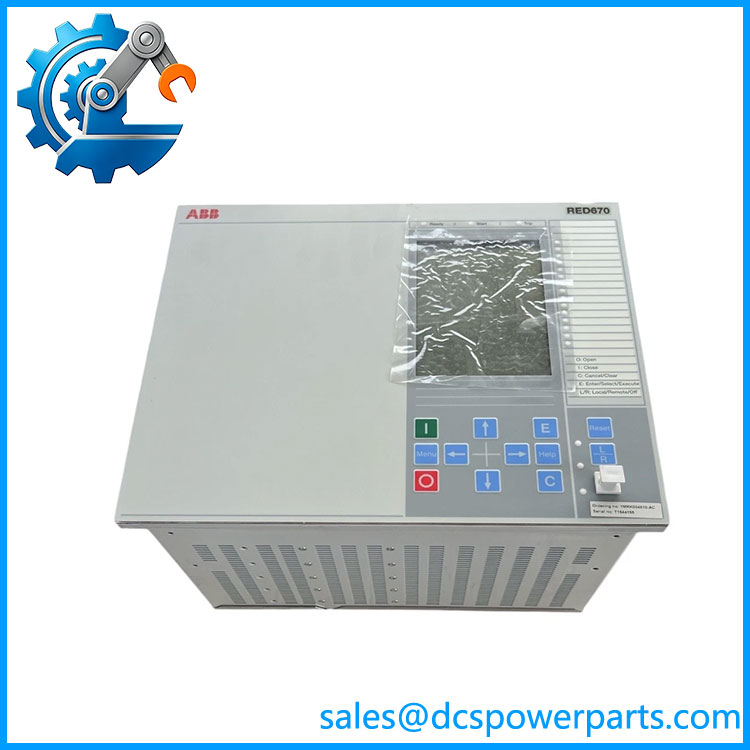

ABB RED670 1MRK004810-KG Line Differential Protection IED

Product Introduction

The ABB RED670 1MRK004810-KG is a Relion 670 Series intelligent electronic device designed for high-speed protection, control and monitoring of overhead transmission lines and power cables. The exact ordering number 1MRK004810-KG corresponds to the RED670 configuration alternative C42, which is defined for line differential protection with a single breaker, 1/3-phase tripping, 2–3 line ends, and integrated distance protection. This configuration is therefore substantially more specific than the generic RED670 product family.

The core protection function is phase-segregated current differential protection. The RED670 compares electrical quantities received from the protected line ends and can provide sensitive fault detection while maintaining security during external faults. ABB documentation also describes charging-current compensation for long lines and cables and support for multi-terminal applications. For the C42 configuration, distance protection provides an independent protection layer alongside the differential scheme. The differential communication architecture uses IEEE C37.94, allowing protection information to be exchanged over suitable optical communication infrastructure.

For engineers replacing an installed ABB RED670 1MRK004810-KG, the full configuration must be treated as part of the component identity. The 1MRK004810-KG number identifies the C42 configuration alternative, but a complete delivered ordering code contains additional selections for software, power supply, HMI, analog system, binary I/O, casing, and station/remote communication. Two relays can therefore share the same base ordering number while having materially different hardware and communication configurations.

Technical Specifications

The manufacturer documentation makes an important distinction between the base ordering number and the complete configuration. The C42 code establishes the principal protection architecture, while subsequent ordering positions define power supply, HMI, analog system, binary I/O, casing, and communication options.

RED670 1MRK004810-KG

Main Features and Engineering Considerations

Line Differential Protection

The ABB 1MRK004810-KG is primarily intended for line differential protection. Its phase-segregated differential protection is designed to distinguish internal faults on the protected line from external faults. This is particularly useful where rapid fault clearing is required on transmission or sub-transmission circuits.

The documentation describes applications ranging from distribution-level networks to the highest voltage levels, including heavily loaded lines and multi-terminal line arrangements. The protection scheme can be applied to overhead lines as well as cables.

Integrated Distance Protection

A major distinction of the 1MRK004810-KG / C42 configuration is the inclusion of distance protection. The manufacturer ordering table explicitly defines C42 as single breaker, 1/3-phase tripping, 2–3 line ends, with distance protection. This should be preserved when comparing replacement units.

Distance protection provides an independent protection principle alongside the differential scheme. In a real protection design, its zones, directional elements, CT/VT ratios, line impedance, communication-assisted functions and trip logic must be reviewed as part of commissioning.

Differential Communication

The differential scheme uses IEEE C37.94 for communication between protection devices. This is an important procurement detail because the communication path is part of the protection system rather than ordinary supervisory communication. The actual optical interface and associated communication equipment must be checked against the complete ordering code and installed telecom architecture.

Charging Current Compensation

For long overhead lines and cables, charging current can become significant. The provides charging-current compensation to maintain sensitivity while accounting for this effect. This is one reason the relay is suited to long-line and cable applications rather than being limited to short feeder protection.

Multi-Terminal Applications

The platform supports multi-terminal line differential arrangements. The C42 configuration specifically identifies 2–3 line ends, while other configuration alternatives support different breaker and line-end arrangements. Do not substitute a different configuration simply because its enclosure and front panel appear identical.

Configuration and Replacement Risk

The most important field issue is the difference between 1MRK004810-KG and a complete ordering code. ABB’s ordering structure includes separate positions for software options, language, casing/mounting, power supply, HMI, analog system, binary I/O and station/remote communication. A procurement description containing only 1MRK004810-KG may therefore be insufficient for a like-for-like replacement.

Application Scenarios

• High-voltage overhead transmission line protection
• Sub-transmission line protection
• Underground and submarine cable protection
• Two-terminal line differential protection
• Three-terminal line differential protection
• Single-breaker line protection
• Transmission line distance protection
• Generator block-transformer cable/line protection
• Heavily loaded transmission circuits
• Long overhead lines requiring charging-current compensation
• Power-system protection panels using Relion 670 architecture

Engineer’s Guide: Field Pitfalls

1. Do not call it a motor protection relay.
Some secondary listings incorrectly classify this exact part as a motor controller. The manufacturer documentation identifies 1MRK004810-KG as a line differential protection configuration.

2. The -KG suffix matters.
1MRK004810-KG corresponds to the C42 configuration: single breaker, 1/3-phase tripping, 2–3 line ends, with distance protection. Other ordering numbers represent different protection arrangements.

3. Do not order by alone.
The complete ordering code determines power supply, analog system, binary I/O, HMI, casing and communication options. Check the existing relay’s full nameplate code before procurement.

4. Verify the differential communication path.
IEEE C37.94 is part of the differential protection communication architecture. Confirm optical interfaces, telecom equipment, fiber budget and channel configuration before commissioning.

5. Verify CT and VT data.
Protection settings depend on the actual instrument transformers. CT ratio, class, polarity, grounding, saturation behavior and VT connection must be checked against the protection study.

6. Preserve the distance-protection configuration.
Because C42 includes distance protection, replacing the relay with a configuration that lacks the required distance functions can change the protection philosophy even if the differential function remains available.

7. Check PCM600 project data.
The replacement should be compared with the existing PCM600 configuration, including active functions, I/O mapping, communication parameters, logic, protection settings and disturbance-recording requirements.

8. Test the complete protection scheme.
A relay replacement is not complete when the front panel powers up. Differential communication, trip outputs, breaker logic, interlocking, binary inputs, CT/VT measurements, time synchronization and remote signaling should be tested before energization.

Frequently Asked Questions

What is ABB 1MRK004810-KG?

It is a Relion 670 Series line differential protection IED. The -KG ordering number corresponds to the C42 configuration, which includes single-breaker line differential protection, 1/3-phase tripping, 2–3 line ends and distance protection.

What is the main function of ?

Its primary purpose is protection, control and monitoring of overhead lines and cables using high-speed line differential protection, with additional protection functions depending on configuration.

Does 1MRK004810-KG include distance protection?

Yes. The manufacturer ordering table identifies the 1MRK004810-KG / C42 configuration as line differential protection, single breaker, 1/3-phase tripping, 2–3 line ends, with distance protection.

What communication standard is used for line differential protection?

The differential protection scheme uses IEEE C37.94 for communication between the IEDs involved in the differential scheme.

Is a PLC or DCS module?

No. It is a dedicated power-system protection IED. It may exchange data with substation control and automation systems, but its primary role is electrical protection.

Can any replace 1MRK004810-KG?

No. The complete ordering code should be compared. ABB provides multiple configurations with different breaker arrangements, line-end counts, protection functions, power supplies, I/O and communication options.

What engineering software is used with ?

PCM600 is the engineering and configuration environment associated with the Relion protection IED family. The final project should be matched to the exact relay version and installed configuration.

Procurement Note

For purchasing and spare-stock identification, specify:

ABB — 1MRK004810-KG — C42 — Line Differential Protection IED with Distance Protection

Before accepting a replacement, verify:

• Complete ordering code, not only 1MRK004810-KG
• Product/version number
• Power-supply option
• HMI selection
• Analog input configuration
• Binary I/O configuration
• Casing and mounting arrangement
• Station communication interfaces
• IEEE C37.94 optical communication arrangement
• CT/VT input configuration
• Existing PCM600 project and firmware compatibility
• Protection settings and application logic
• Existing 2- or 3-terminal line architecture
• Single-breaker arrangement and 1/3-phase trip requirements

For a protection relay, configuration matching is more important than physical interchangeability. A relay can fit the same rack and still be the wrong protection configuration.
