ABB PPD539A102 | 3BHE039770R0102 AC 800PEC Controller

Technical Specifications

ABB’s current product record does not publish a complete electrical specification for this product ID, so values such as supply voltage, exact I/O count, dimensions, and communication ports should be verified against the installed system documentation rather than copied from reseller listings.

Product Overview

The ABB PPD539A102 3BHE039770R0102 is an AC 800PEC control device used in ABB high-speed power-electronics control applications. The AC 800PEC platform is designed for applications requiring short control cycles, high processing performance, fast I/O and communication, and FPGA-based implementation of control and communication functions. ABB documentation describes the platform as suitable for demanding power-electronics applications and integration with ABB engineering environments.

The ABB PPD539A102 is specifically identified by ABB as PP D539 A102, with product ID 3BHE039770R0102. ABB’s UNITROL 6000 spare-parts documentation associates this exact part number with an AC800PEC controller, and identifies it in the UNITROL 6000 X-power/PEC3-MINI context.

The ABB 3BHE039770R0102 should therefore be treated as a system-level AC 800PEC controller rather than a conventional PLC I/O module. Its suitability depends heavily on the associated excitation or converter configuration, firmware/application image, FPGA configuration, and connected control hardware.

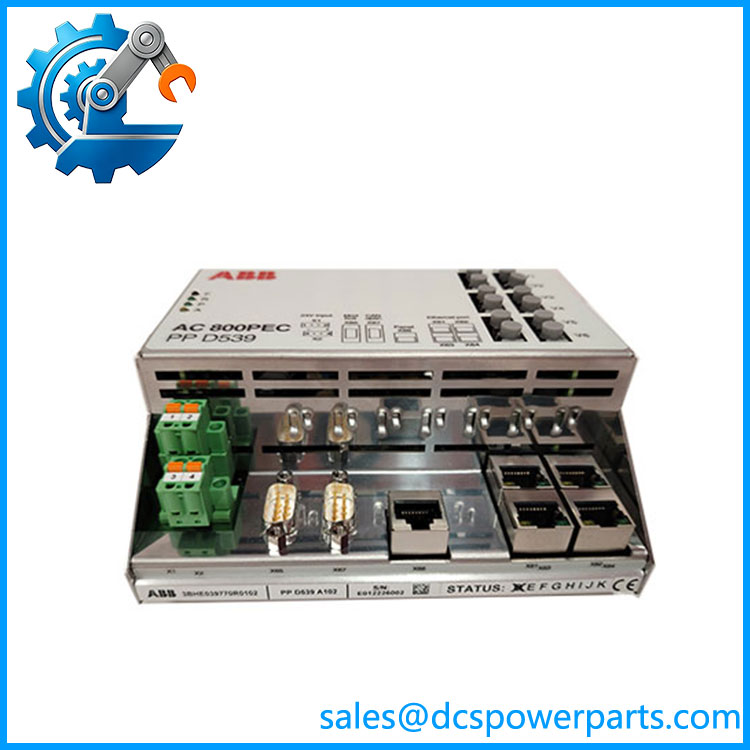

PPD539A102 3BHE039770R0102

Main Features & Field Considerations

AC 800PEC control architecture
The AC 800PEC platform combines conventional processor-based control with FPGA resources. ABB describes the architecture as providing fast control cycles, high processing power, fast communication and I/O, and FPGA-based implementation of protocols and application functions.

Excitation-system application
ABB’s UNITROL 6000 documentation explicitly lists PP D539 A102 / 3BHE039770R0102 among the AC800PEC controller components used in the UNITROL family. This makes the exact system configuration important when evaluating a replacement.

Application-specific configuration
A replacement PPD539A102 is not equivalent to installing a generic controller. The control application, FPGA configuration, firmware, communication parameters, and system-specific settings may all need to correspond to the original installation.

High-speed control
AC 800PEC is intended for applications where control timing matters. ABB describes cycle times down to approximately 100 μs for the platform, although that figure should not be interpreted as the guaranteed execution cycle of every PPD539A102 application.

Optical communication
Optical communication is part of the AC 800PEC architecture and is particularly relevant to electrically demanding power-electronics systems. The exact optical interfaces present in a particular installation should be confirmed from the system drawing and hardware revision.

Replacement Checklist

Before replacing an ABB PPD539A102, verify:

1. Exact model:
2. ABB ID: 3BHE039770R0102
3. Hardware revision
4. AC 800PEC system type
5. UNITROL/excitation system model
6. Firmware version
7. FPGA/application configuration
8. Control application backup
9. Communication configuration
10. Optical interface configuration
11. Connected I/O and power-interface hardware
12. Existing controller diagnostics
13. Parameter/configuration backup

For an excitation or converter system, the application image and FPGA configuration can be just as important as the physical controller part number.

Specification Caution

There is substantial conflicting third-party information for this part. One listing describes the as having 16 digital inputs, 16 digital outputs, four analog inputs, two Ethernet ports, and an RS-232/RS-485 interface, while another incorrectly describes it as a safety I/O module.

Those descriptions should not be treated as confirmed specifications for 3BHE039770R0102. The strongest evidence is ABB’s own product identification, which defines the unit as:

PP D539 A102: AC 800PEC Contr. Device

Procurement Description

ABB 3BHE039770R0102 — AC 800PEC Control Device / Controller for ABB Power Electronics and UNITROL 6000 Applications

For replacement procurement, specify + 3BHE039770R0102 together with the hardware revision, installed UNITROL/AC 800PEC system, firmware, and application/FPGA configuration. This avoids the common mistake of matching only the generic “AC 800PEC controller” description while overlooking application-specific compatibility.
